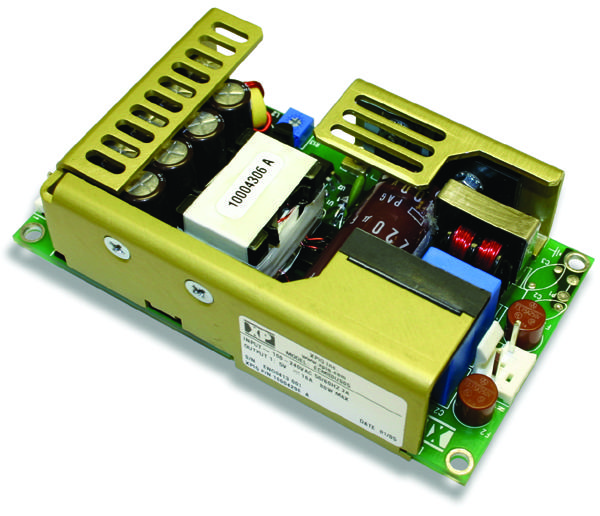

XP POWER ECM100UQ45 Medical Power Supply
The ECM100UQ is an open-frame AC/DC power supply capable of delivering up to 80W when convection cooled or 100W when forced cooled with a 5 CFM fan. It features overload, overvoltage, and short-circuit protection. The power supply complies with medical IT safety standards, is suitable for medical applications, and supports both Class I and Class II construction. It is designed for reliable operation in medical environments.
XP POWER ECM100UQ45 Medical Power Supply Specifications:
- Power Output: 80W convection cooled, 100W with 5 CFM forced cooling
- Size: 2.5 x 4.5 x 1.2 inches
- Input Voltage: 90-264 VAC, universal input
- Input Frequency: 47-63 Hz, 440 Hz available
- Operating Temperature: 0°C to +70°C with derating
- Leakage Current: 125 pA at 115 VAC, 210 μA at 230 VAC
- Isolation Voltage: Ensure IEC60601-1 compliance
- Efficiency: 80-85%
- Protections: Overload, overvoltage, short circuit
- Approvals: Medical safety compliant
- Emissions: EN55032 Level B conducted emissions
- Construction: Supports Class I and Class II applications, with optional cover kits and mating connectors
Buy the Reliable Power Supply Models – Efficient Medical Solutions for Industrial Applications
Order the ECM100UQ now and ensure your medical or industrial devices operate reliably with this compact, efficient power supply. It offers full-rated power up to 50°C, supports Class I and II safety standards, and features protections against overloads and short circuits. Perfect for critical applications requiring high reliability, medical compliance, and durable construction. Shop online today for fast delivery and trusted quality, securing a dependable power solution tailored for demanding environments.
Buy ECM100UQ power supply now and experience reliable performance with medical-grade safety standards and versatile cooling options.
Frequently Asked Questions
Where can I buy XP POWER ECM100UQ45?
You can click on the BUY or RFQ button to purchase ECM100UQ45 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECM100UQ45?
You can download the ECM100UQ45 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECM100UQ45?
XP POWER
