XP POWER STH0548S12 DC-DC Buck Regulator
The STH05 series is a low-cost, surface-mount DC-to-DC buck regulator available in a 10-pin package. Designed with SMD technology and high automation, these regulators feature voltage trimming, remote on/off control, continuous short circuit protection, reliable regulation, and high efficiency. They support a wide input voltage range and are non-isolated. The output voltage can be trimmed within ±10%. They comply with Class B conducted and radiated emissions standards when external components are used. No heatsink is required for operation up to +60°C. The module dimensions are 0.77 inches by 0.47 inches by 0.39 inches (19.5mm x 11.8mm x 5.0mm).
XP POWER STH0548S12 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 9-72VDC
- Output Voltage: 3.3V, 5.0V, 6.5V, 9.0V, 12.0V, 15.0V
- Maximum Output Current: 232 mA to 404 mA depending on model
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +105°C (de-rated operation to +60°C at full load)
- Ripple & Noise: 7 mVpp
- Switching Frequency: 150-550 KHz
- Dimensions: 0.77 x 0.47 x 0.39 inches (19.5 x 11.8 x 5.0 mm)
- Package: SMD-10
- Protection: Short Circuit, Overcurrent
- Features: Voltage trimming ±10%, Remote On/Off, No heatsink required, Class B emission compliance

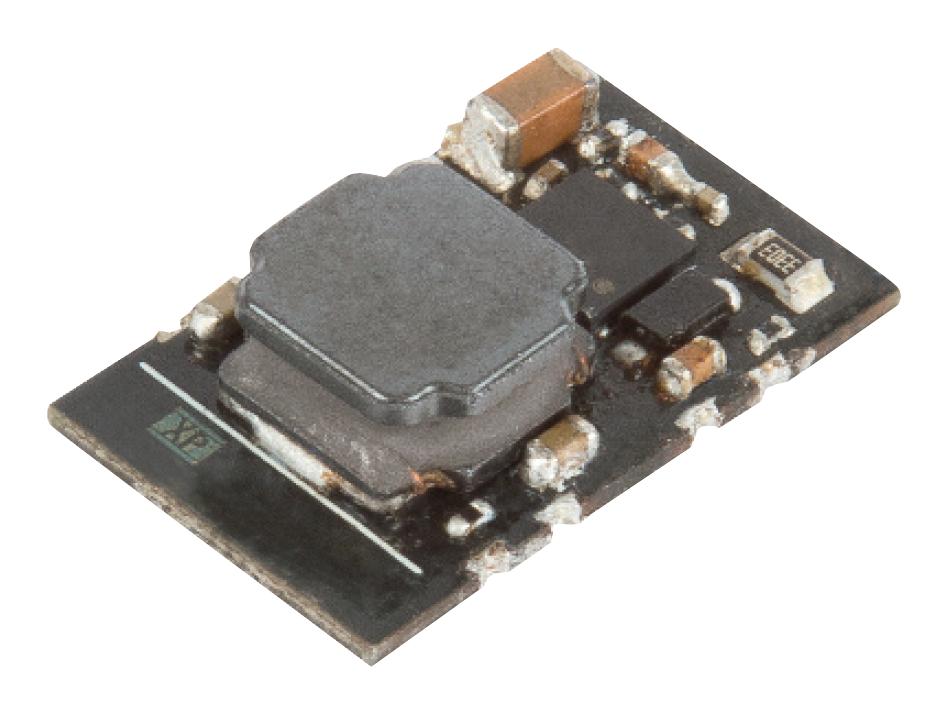

Buy the Buy XP Power STHOS5 Series Part Number STH0548S12 Online
Purchase the XP Power STH0548S12 online today to ensure reliable power regulation in your applications. This high-efficiency, surface-mount DC-DC buck regulator features voltage trimming, remote on/off, and short circuit protection. Its compact size (0.77” x 0.47” x 0.39”) allows easy integration into various systems. Designed for operation from -40°C to +105°C, it offers a wide input range and excellent performance without requiring a heatsink. Buy now for fast delivery and optimal power management.
Buy XP Power STH0548S12 now and experience unmatched reliability and high efficiency in compact DC-DC regulation.
Frequently Asked Questions
Where can I buy XP POWER STH0548S12?
You can click on the BUY or RFQ button to purchase STH0548S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STH0548S12?
You can download the STH0548S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STH0548S12?
XP POWER
