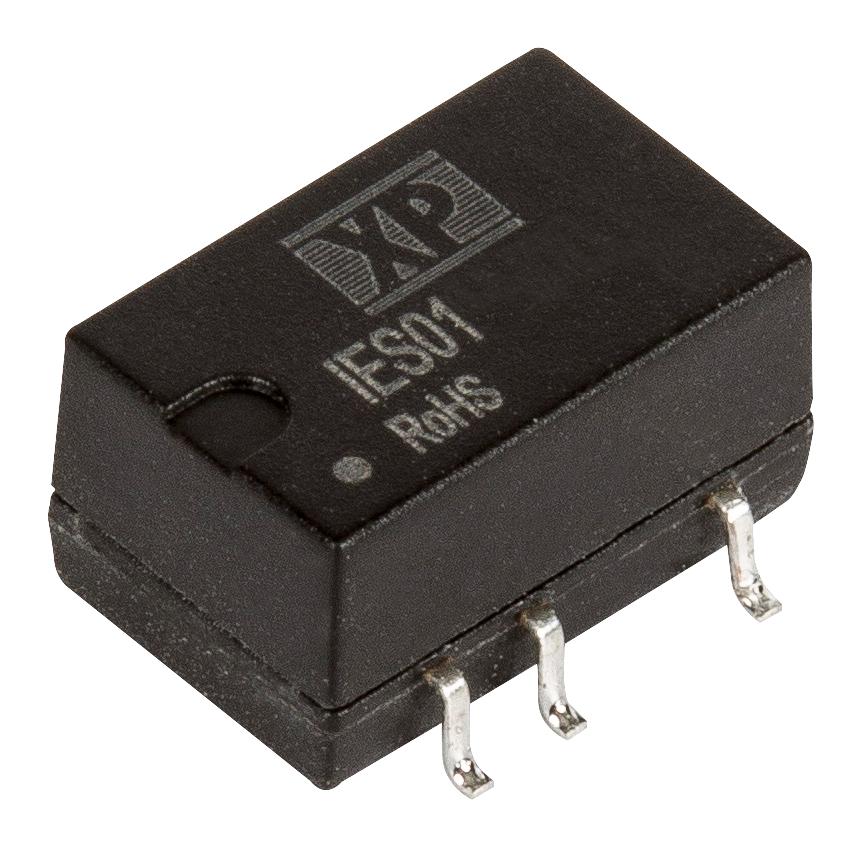

XP POWER IES0112S12 Power Supply Module
The IES01 series single output DC-DC power supply is an ideal solution for isolating voltage rails in distributed power architectures, suitable for analogue, digital, data, and relay circuits. It features an unregulated 12V single output with a 12V input voltage range and is equipped with industry-standard SMD8 DIP packaging and pinout. The device offers continuous short circuit protection, operates within a temperature range of -40°C to +105°C, and maintains full load performance up to +100°C. It also holds UL62368-1 safety approvals and comes with a three-year warranty.
XP POWER IES0112S12 Power Supply Module Specifications:
- Input Voltage: 12V (nominal)
- Input Voltage Range: +10% to +15% of nominal
- Output Voltage: 12V
- Output Current: 12V models up to 241mA at full load
- Efficiency: up to 85%
- Isolation: 1500VDC (standard), 3000VDC (optional)
- Isolation Resistance: >20 MΩ at 500VDC
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -55°C to +125°C
- Temperature Rise: 25°C or 15°C depending on conditions
- Operating Humidity: Up to 95% non-condensing
- Case Material: Flame-retardant black plastic UL94V-0
- Dimensions: 0.52" x 0.335" x 0.285" (13.2 x 8.5 x 7.25 mm)
- Weight: Approx. 1.4 grams
- Certifications: UL, CE, UKCA
- Cooling: Natural convection
- Switching Frequency: ~270 kHz
Buy the Buy XP Power IESO1 Series Power Supply Part Number IES0112S12 Online
Purchase the XP Power IESO1 series Power Supply Module online today and benefit from a compact, high-efficiency solution with 1500VDC isolation, UL safety approval, and operation from -40°C to +105°C. Ideal for distributed power architectures, this rugged module features continuous short circuit protection, industry-standard SMD8 DIP packaging, and comes with a three-year warranty. Its reliable design ensures consistent performance in industrial, digital, analog, and relay circuit applications, offering peace of mind and long-term durability for your critical systems.
Get XP Power IES0112S12 today—compact, reliable, and with UL safety approvals, designed for high-temperature operation and continuous short circuit protection.
