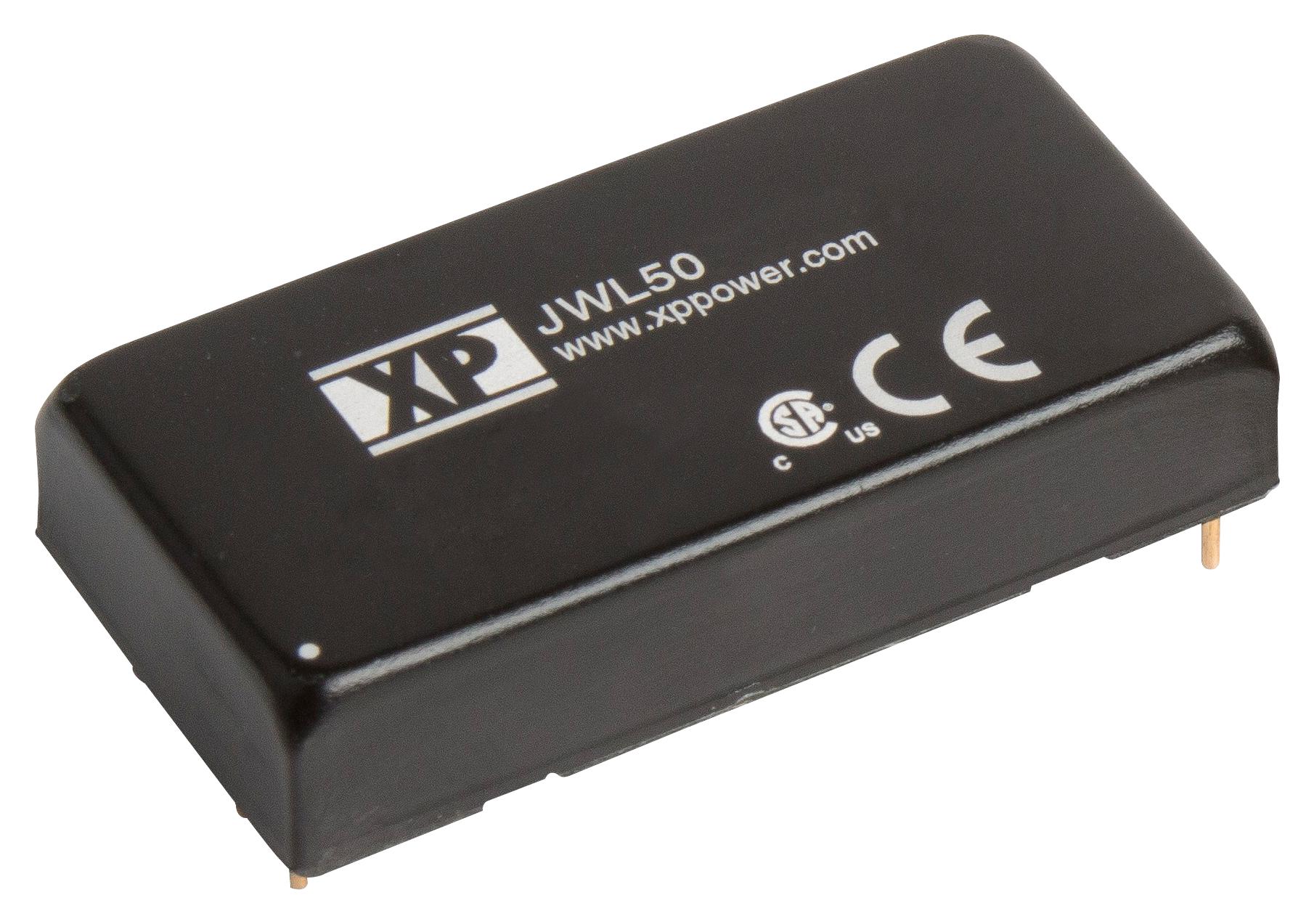

XP POWER JWL5048S05 power module
The JWL50 series offers a 50-watt power output with a wide input range of 4:1, accepting 9V to 36V or 18V to 75V DC, ideal for industrial and power management applications. Featuring regulated single outputs like 3.3V, 5V, 12V, 15V, 24V, with adjustable output voltages via external resistor, these modules are housed in a compact 2" x 1" metal case with 1500V DC isolation. Operating well from -40°C to 105°C, they include remote On/Off, efficiency, derating, and safety approvals. External filters ensure Class A EMI compliance, suitable for demanding industrial environments requiring reliable power conversion.
XP POWER JWL5048S05 power module Specifications:
- Power Output: 50 Watts
- Input Voltage Range: 9V-36V or 18V-75V DC (wide 4:1 range)
- Output Options: 3.3V, 5V, 12V, 15V, 24V, with adjustable +/-10%
- Output Power: Fully regulated, adjustable via external resistor
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Derating at high temperatures
- Dimensions: 2" x 1" x 0.43" (50.8 x 25.4 x 11.0 mm)
- Housing: 6-sided metal case, black anodised aluminium
- Certifications: IEC60950-1, UL/cUL60950-1, EMI Class A with external filters
- Protection: Remote On/Off, output trim, over-temperature, short circuit, overload; optional heatsink available
Buy the XP Power Series JWL50 50W Power Module: JWL5048S05
Enhance your power management systems with the high-efficiency, 50-watt power module from the JWL50 series. Featuring a wide input voltage range of 4:1, adjustable outputs, 1500V DC isolation, and compact metal casing, these modules are ideal for industrial automation, control systems, and power supplies. They operate reliably from -40°C to 105°C, include remote On/Off, and meet IEC and UL safety standards. Purchase online today for dependable, efficient power conversion tailored to demanding industrial environments.
Order your XP Power Series JWL50 50W power module today and give your industrial projects the dependable high-performance power they need.
Frequently Asked Questions
Where can I buy XP POWER JWL5048S05?
You can click on the BUY or RFQ button to purchase JWL5048S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWL5048S05?
You can download the JWL5048S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWL5048S05?
XP POWER
