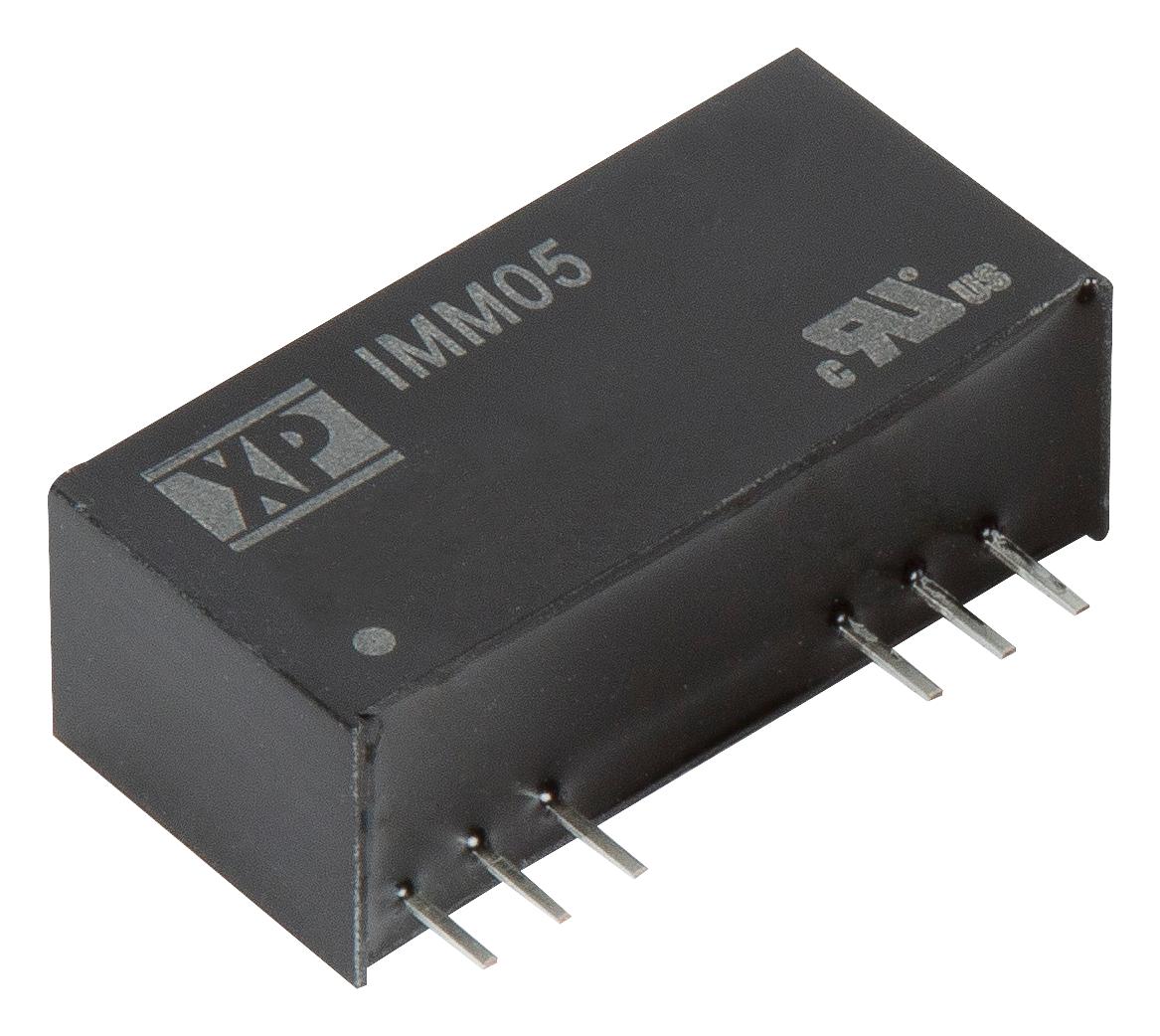

XP POWER IMM0524D12 Medical DC-DC Converter
The IMM05 series of DC-DC converters provides a compact 5W power solution with galvanic isolation suitable for medical applications. These converters feature regulated single and dual outputs ranging from 3.3V to ±15V, with 1500VAC isolation and 2:1 input voltage range. Packaged in an ultra-compact SIP9 form factor, they include features such as remote on/off, support for operation from 20°C to 100°C, and full load capacity up to 60°C. Certified for worldwide medical safety standards, they are ideal for BF and CF medical applications requiring low leakage currents.
XP POWER IMM0524D12 Medical DC-DC Converter Specifications:
- Power: 5 Watts
- Input Voltage Range: 4.5-9V, 9-18V, 18-36V, 35-72V
- Output Voltage: 3.3V, 5V, 12V, 15V, ±12V, ±15V
- Output Current: Up to 705mA
- Isolation Voltage: 1500 VAC
- Package: SIP9 ultra-compact
- Operating Temperature: -20°C to +100°C
- Maximum Case Temperature: 105°C
- Remote On/Off: Yes
- Certifications: Medical safety standards (BF/CF imaging)
- Dimensions: 1.02 x 0.36 x 0.49 inches (26.0 x 9.3 x 12.5 mm)
- Weight: approximately 6.2 g
- Leakage Current: 2 μA at 250 VAC
- Full load operation: up to +60°C
- Isolation Resistance: 10^9 ohms
- Line and load regulation within specified ranges
- Ripple and Noise: 75 mV pk-pk
- Approvals: UL, CSA, IEC/EN 60601-1
Buy the Buy XP Power IMMO5 Series DC-DC Converter Part Number IMM0524D12 Online
Purchase the XP Power IMMO5 Series DC-DC converter IMM0524D12 online now and enjoy a compact, reliable power solution designed for medical applications. Featuring 1500VAC galvanic isolation, regulated outputs from 3.3V to 15V, remote on/off capability, and certification for worldwide medical safety standards, this converter provides high efficiency and full load operation from -20°C to +100°C. Its ultra-compact SIP9 package makes integration easy, ensuring long-lasting performance and compliance with strict safety regulations. Order today for swift delivery and dependable power in your medical devices.
Get XP Power IMMO5 Series converter IMM0524D12 today—built for medical-grade safety, high efficiency, and reliable galvanic isolation.
Frequently Asked Questions
Where can I buy XP POWER IMM0524D12?
You can click on the BUY or RFQ button to purchase IMM0524D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0524D12?
You can download the IMM0524D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0524D12?
XP POWER
