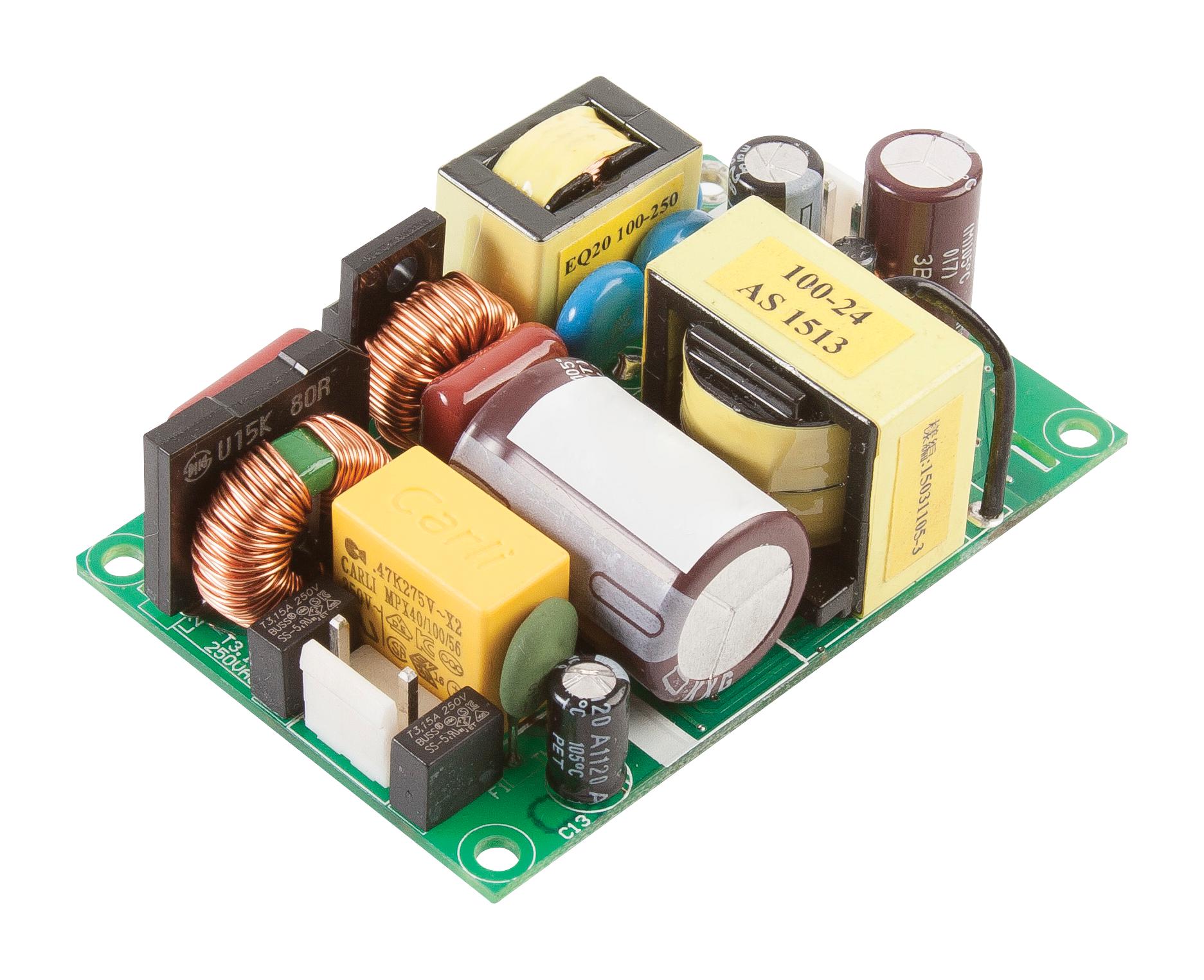

XP POWER ECP130PS28 AC-DC Power Supply
The ECP130 series is a high-efficiency, low-profile AC-DC power supply designed for medical, industrial, and ITE applications. It delivers up to 130W with forced cooling and 100W convection cooling, in a compact 2x3 inch footprint with a height of 1.1 inches. Features include low no-load power consumption under 0.5W, internal fuses, low leakage currents, and safe operation in environments up to 80°C. It meets stringent safety standards for medical and industrial uses, with high power density and compliance to emission requirements, making it a reliable, versatile power solution.
XP POWER ECP130PS28 AC-DC Power Supply Specifications:
- Power Output: 130W (forced-cooled), 100W (convection cooled)
- Input Voltage Range: 85-264 VAC
- Efficiency: Up to 98%
- No Load Power: Less than 0.5W
- Dimensions: 2 inches by 3 inches by 1.1 inches
- Operating Temperature: -30°C to +70°C
- Cooling: 10 CFM forced-air cooling, convection available
- Safety Approvals: Medical and ITE standards, EN55011/22 Level B emission
- Operating Altitude: up to 5000m
- Isolation: Input to output 4000 V, input to ground 1500 V, output to ground 1500 V
- Certifications: UL, CSA, CE, UKCA
Buy the XP Power ECP130PS28 – Reliable Power Supply for Industrial Applications
Purchase the XP Power ECP130 series power supply online today to benefit from high efficiency, compact size, and proven safety standards. Engineered for demanding medical, industrial, and ITE applications, this power supply provides reliable 130W output with minimal no-load power consumption under 0.5W. Its 2x3 inch footprint and 1.1-inch profile fit seamlessly into tight spaces while delivering high power density and excellent thermal performance. With CE, UL, CSA, and medical safety approvals, buying online guarantees quick delivery and trusted quality for your projects.
Order your XP Power Series ECP130PS28 flexible AC-DC power supply today and ensure your industrial or medical equipment operates with dependable quality and safety.
Frequently Asked Questions
Where can I buy XP POWER ECP130PS28?
You can click on the BUY or RFQ button to purchase ECP130PS28 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECP130PS28?
You can download the ECP130PS28 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECP130PS28?
XP POWER
