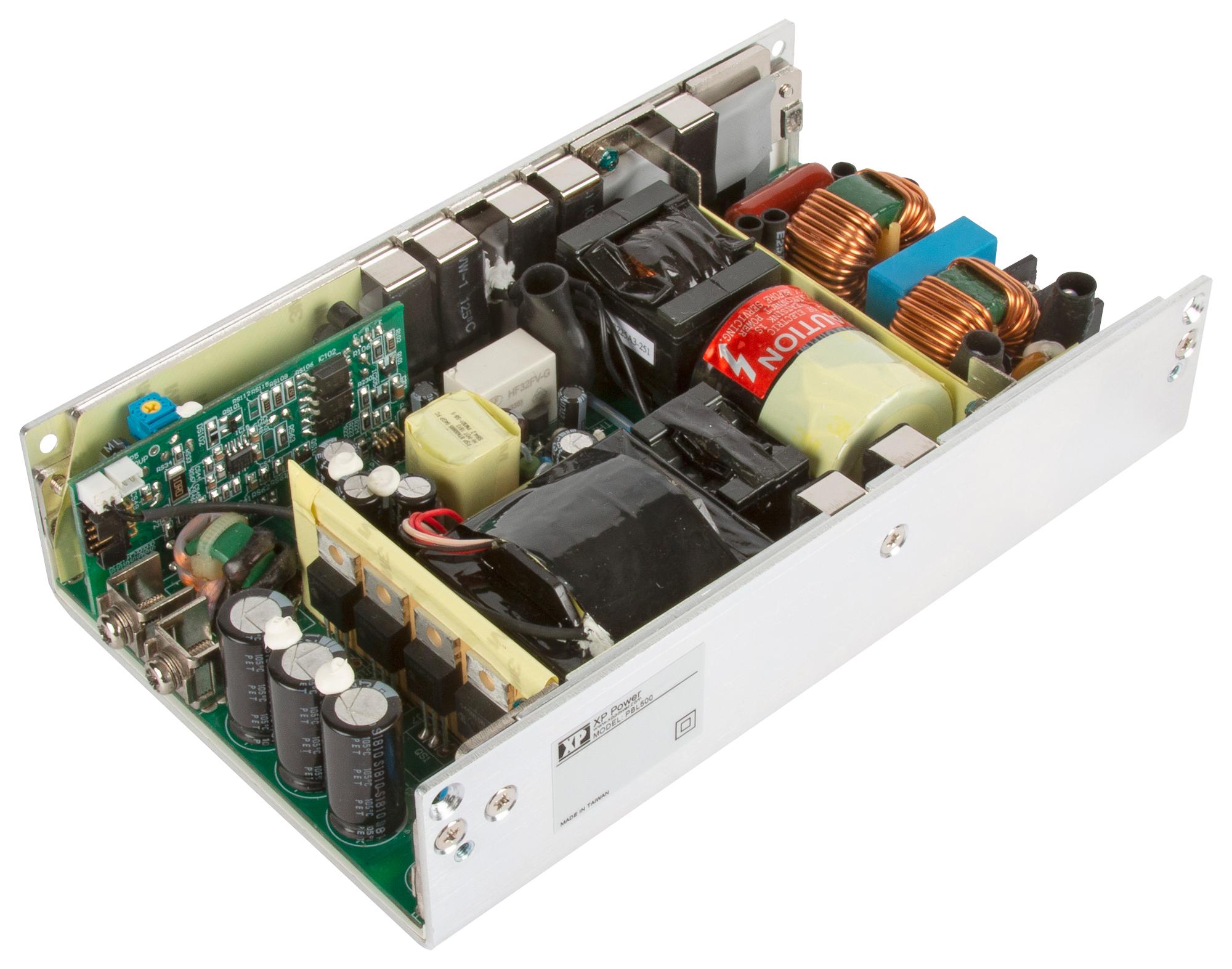

XP POWER PBL500PS24B Power Supply
The PBL500 series are compact, U-channel AC-DC switching power supplies delivering 450-500 watts with forced air cooling or 250 watts convection cooled. Suitable for medical applications, these units feature BF-rated insulation, operate at altitudes up to 5000 meters, and include options for a cover and fan assembly. They provide multiple output voltages, such as 12V, 18V, 24V, and 48V, with low ripple and noise, high efficiency, and comprehensive safety features, making them ideal for demanding industrial and medical electronics requiring reliable power sources.
XP POWER PBL500PS24B Power Supply Specifications:
- Power Output: 450-500W forced air cooled, 250W convection cooled
- Input Voltage: 80-264 VAC, 63 Hz, derate at lower voltages
- Output Voltages: 12V, 18V, 24V, 36V, 48V, 57V adjustable within specified tolerances
- Output Current: Up to 20.83A @ 12V, 16.67A @ 18V, 10.42A @ 24V, 8.94A @ 36V, 5.21A @ 48V, 4.38A @ 57V
- Ripple & Noise: Max 120-570 mV depending on voltage, measured at 20 MHz bandwidth
- Efficiency: Typically 90% at full load
- Operating Temperature Range: -10°C to +70°C, derating linearly above +50°C
- Protection: Overvoltage, overcurrent, thermal shutdown, and short circuit protection
- Isolation: Input to case 4000 VAC, output to case 1500 VAC
- Altitude: Up to 5000 meters
- Safety: UL60601-1, EN60601-1, CSA standards, Class II, BF safety-rated for medical use
- Mechanical: U-channel casing, includes threaded mounting holes, dimensions approximately 4 x 7 x 1.56 inches
- Features: Power OK, inhibit, remote sense, fan with temperature control, low electromagnetic interference
- Reliability: Mean time between failures over 100,000 hours
Buy the XP Power Series PBL500 AC-DC Power Supply: PBL500PS24B
Purchase the XP Power Series PBL500PS24B power supply online today and experience dependable performance for demanding medical and industrial applications. Engineered for safety, efficiency, and long-term reliability, this power supply features a wide input range, multiple output voltages, and low ripple noise to meet your project needs. Its compact U-channel design facilitates easy installation and heat sinking. With built-in protections and certifications for medical standards, you can trust this supply to deliver stable power while simplifying your system design and maintenance requirements.
Order your XP Power Series PBL500PS24B today and ensure your medical and industrial projects are powered with reliable, high-quality supplies.
Frequently Asked Questions
Where can I buy XP POWER PBL500PS24B?
You can click on the BUY or RFQ button to purchase PBL500PS24B from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBL500PS24B?
You can download the PBL500PS24B datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBL500PS24B?
XP POWER
