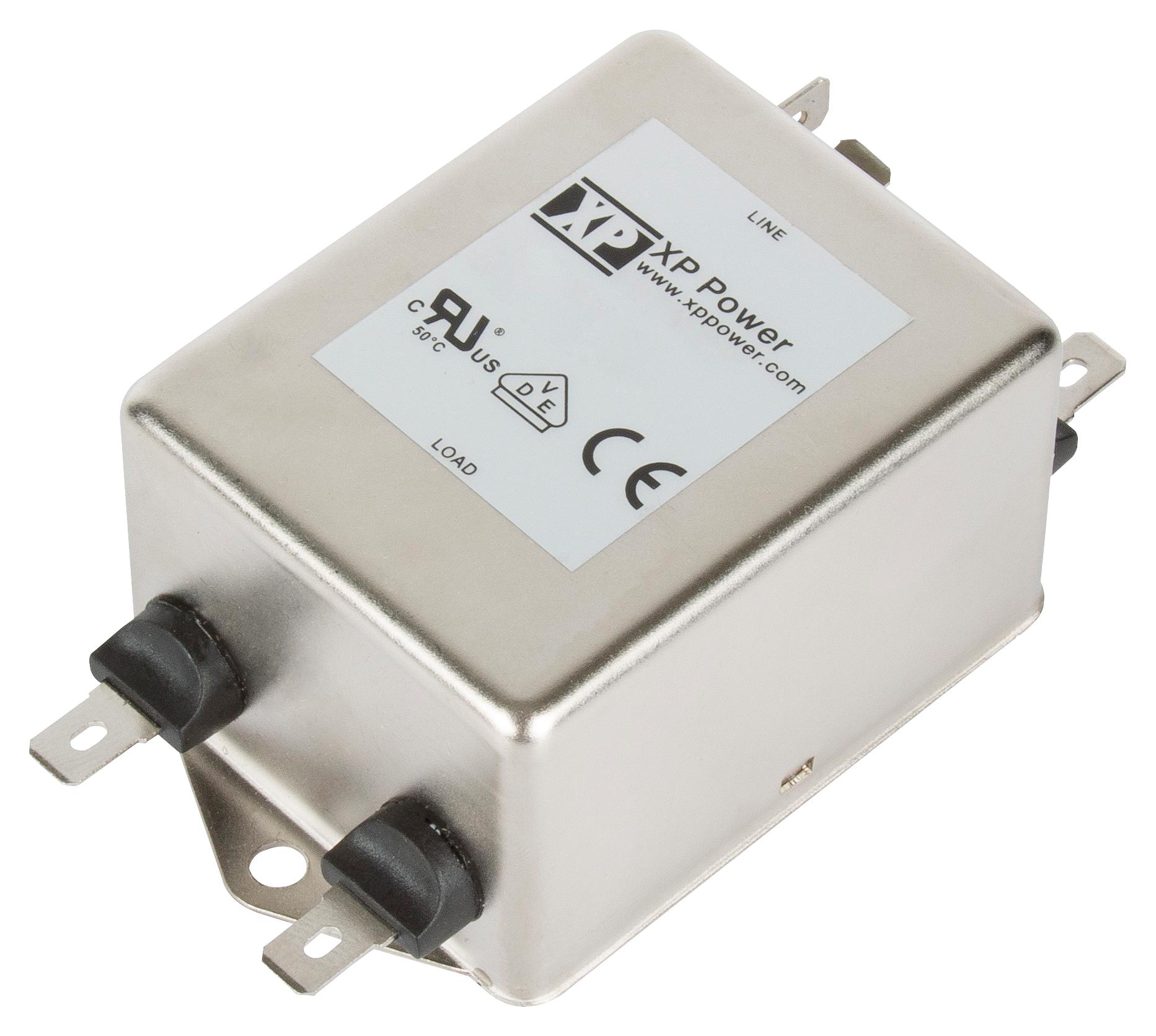

XP POWER FIHAA15C2F Chassis Mount EMI Filter
The FIHA high attenuation dual-stage filter is housed in a compact, chassis-mounted metal case suitable for ITE applications. It features a dual-stage design for effective noise filtering and is equipped with 6.3 x 0.8 mm Faston terminals for input and output connections. The filter should be installed close to the mains entry point to minimize radiated emissions. All models have a shielded metal body and include a bleed resistor to safely discharge capacitors when power is disconnected. Certified to EN60939-2 for passive filters and ANSI/UL1283 for EMI filters, it operates across a wide temperature range from -40°C to +110°C, with full power capability up to +50°C. Available in various current ratings from 1A to 20A.
XP POWER FIHAA15C2F Chassis Mount EMI Filter Specifications:
- Rated Voltage: 250 VAG
- Rated Current: 1A, 3A, 6A, 10A, 15A, 20A (models FIHAA01C1F to FIHAA20C2F)
- Input Frequency: 400Hz
- Earth Leakage Current: 2-5W (medical versions), 3-6mA (TTE versions)
- Temperature Range: -40°C to +110°C, full power up to +50°C
- Flammability Rating: UL 94V-2
- Dielectric Strength: 1500 VAG
- Termination Type: 6.3 x 0.8 mm Faston terminals
- Certifications: EN60939-2, ANSI/UL1283
- Dimensions: Approximate length 2.00 inches (50.8 mm), width 0.24 inches (6.3 mm), height 1.18 inches (30 mm); weight varies from 122g to 130g
- Shielded metal body for EMI suppression
- Includes bleed resistor for safety
- Suitable for Class I appliances
Buy the XP Power Series EMI Filter: FIHAA15C2F
Order the XP Power FIHAA15C2F chassis mount EMI filter online today. Designed for high-performance noise suppression with dual-stage filtering, shielded metal body, and wide temperature range. Its compact design with Faston terminals ensures quick installation close to mains entry points, minimizing emissions. Certified to safety standards EN60939-2 and ANSI/UL1283, this 15A filter safely discharges capacitors via a bleed resistor, ensuring reliable operation across various industrial and IT equipment environments. Purchase now for durable, effective noise suppression in your electronic systems.
Get XP Power FIHAA15C2F today—built for precision filtering and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy XP POWER FIHAA15C2F?
You can click on the BUY or RFQ button to purchase FIHAA15C2F from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FIHAA15C2F?
You can download the FIHAA15C2F datasheet or visit the XP POWER website for support.
Who is the manufacturer of FIHAA15C2F?
XP POWER
