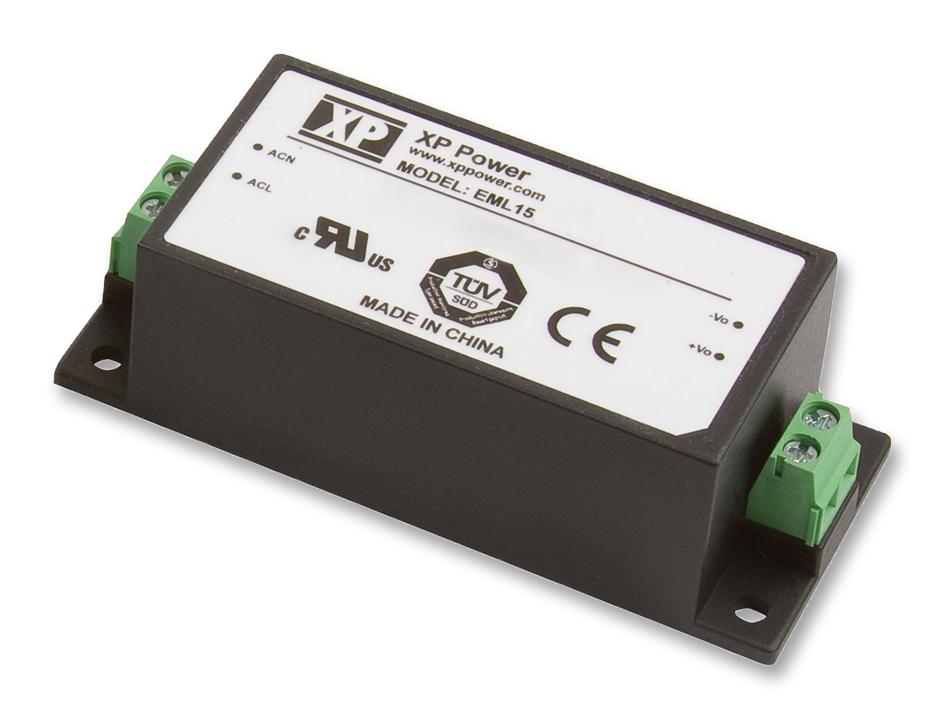

XP POWER EML15US09S Medical Power Supply
The EML15 series offers compact, efficient 15-watt AC-DC power supplies designed for medical applications. These open frame and encapsulated units feature a wide input voltage range of 85-264 VAC, multiple output voltages from 3.3V to 48V, and mounting options including PCB, chassis, and DIN rail. Certified for medical safety standards, they provide peak load capability of 130% for 30 seconds, high efficiency up to 82%, and excellent electromagnetic compatibility. Ideal for healthcare devices requiring reliable, space-saving power solutions with Class II isolation and easy integration.
XP POWER EML15US09S Medical Power Supply Specifications:
- Input Voltage Range: 85-264 VAC
- Input Frequency: 63 Hz
- Efficiency: up to 82%
- Output Power: 15W
- Output Voltages: 3.3V to 48V options
- Output Current: 3.00A to 0.32A depending on voltage
- Peak Load Capability: 130% for 30 seconds
- Operating Temperature: -20°C to +70°C, derate linearly at higher temperatures
- Isolation: 4000 VAC input to output
- Protection: Overvoltage, overload, short circuit, and overtemperature
- Dimensions: Varying based on mounting type, approx. 3.90 x 1.36 x 1.04 inches for PCB mount
- Certification: IEC60601-1, ANSI/AAMI ES60601-1, UL, CSA, EN60601-1
- EMC: EN55022 Class B, EN61000-4
Buy the XP Power EML15 – Reliable Medical Power Supplies for Industrial Applications
Enhance your healthcare or industrial equipment with the XP Power EML15 series power supplies. Designed for medical safety standards, these units deliver 15W with high efficiency and peak load capabilities. They offer flexible mounting options, including PCB, chassis, encapsulated, and DIN rail, making installation simple in space-constrained environments. Certified for worldwide medical standards, they ensure safe, reliable operation with overvoltage, overload, and short circuit protection. Invest in proven quality to improve your device performance and compliance today.
Buy XP Power EML15 power supplies now and experience unmatched reliability, safety, and efficiency for healthcare and industrial devices.
Frequently Asked Questions
Where can I buy XP POWER EML15US09S?
You can click on the BUY or RFQ button to purchase EML15US09S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part EML15US09S?
You can download the EML15US09S datasheet or visit the XP POWER website for support.
Who is the manufacturer of EML15US09S?
XP POWER
