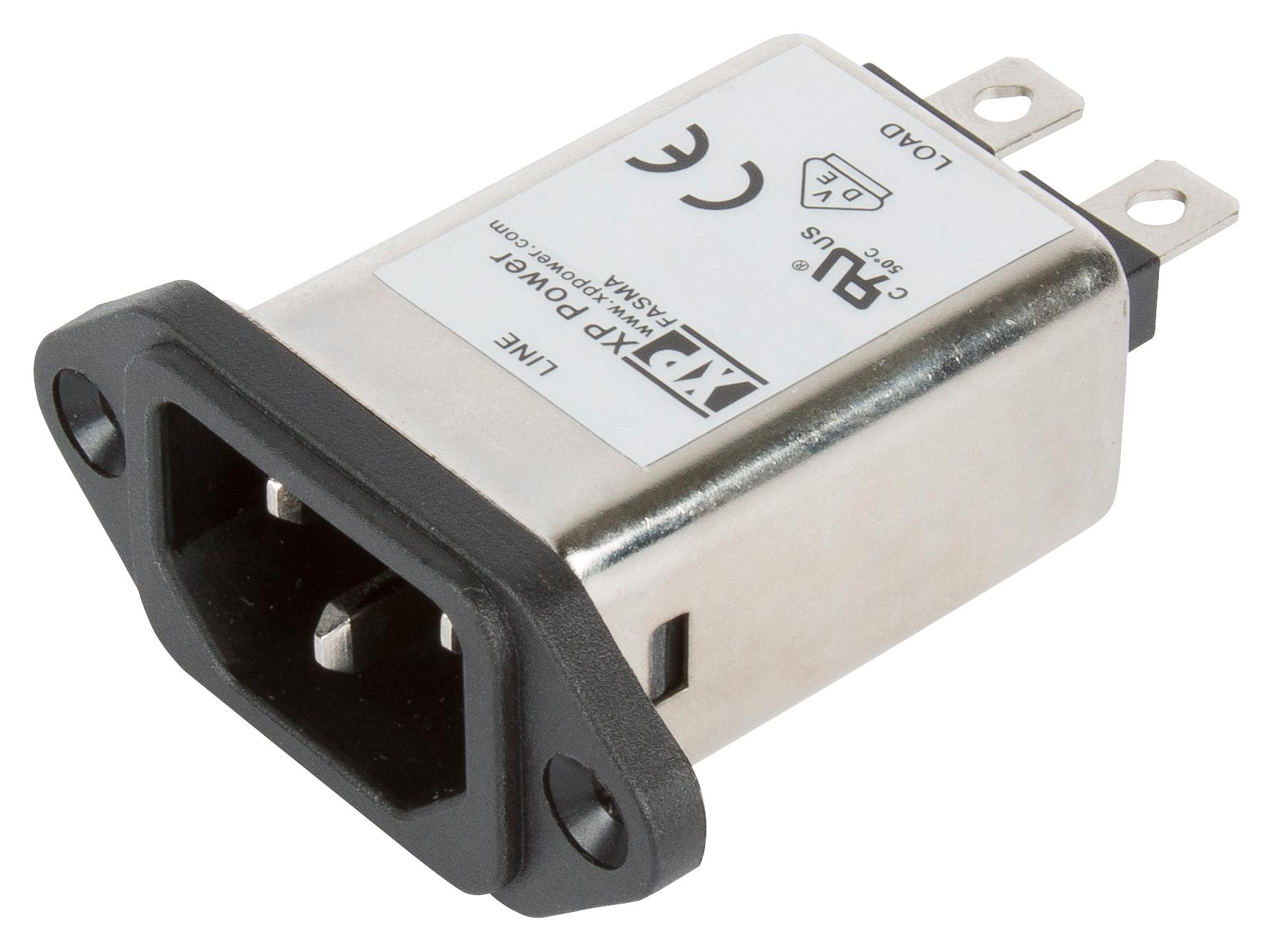

XP POWER FASAS06PFR Datasheet & Stock

The FASA combines an EMI filter with an IEC320-C14 inlet, to provide excellent attenuation in a compact module. They are available as either snap-in (FASASxxPFR) or screw mount (FASASxxSFR) for consumer, commercial, ITE & instrumentation type applications. When fitted to mains powered equipment, they provide excellent attenuation to conducted electro-magnetic interference from the mains supply, whilst reducing any conducted emissions from within the equipment onto the mains supply. Suitable for class I appliances, all models feature a shielded metal body, and are fitted with a bleed resistor to safely discharge the filter capacitors when power is disconnected. Safety approvals are EN60939-2 for passive filters & ANSI/UL1283 for EMI filters. They feature a wide operating temperature range of -40°C to +110°C with full power operation up to +50°C.




IEC320-C14 Filtered inlet

Screw Mount & Snap-in Versions

Compact Design

ITE Applications

1A, 3A, 6A & 10A Rating

6.3 x 0.8mm Faston Terminals

Bleed Resistor

Shielded Metal Body

Wide Operating Temperature Range
