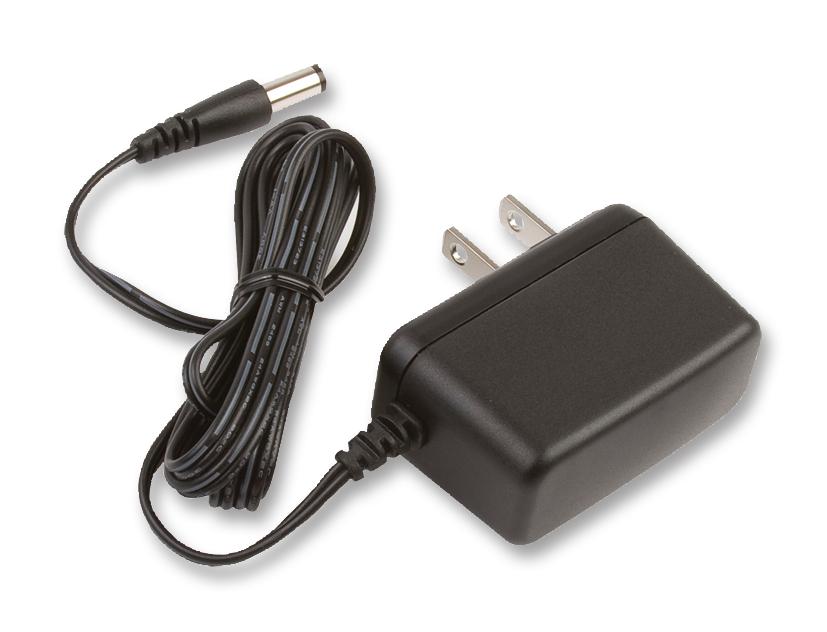

XP POWER VEL24US240USJA AC-DC Power Supply
The VEL24 series provides 24-watt AC-DC power supplies with high efficiency and low no-load power consumption, compliant with Energy Efficiency Level VI standards. Designed for cost-sensitive applications, these power supplies feature universal input voltage compatibility (90–264 VAC), multiple output voltages (12 V to 24 V), and a compact form factor with versions for US, UK, and EU mains. They include safety features like internal fuses, full regulation within 5%, and a wide operating temperature range of 0°C to +60°C, suitable for industrial or automation uses.
XP POWER VEL24US240USJA AC-DC Power Supply Specifications:
- Input Voltage: 90–264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.3 A at 100 VAC
- Inrush Current: 60 A at 25°C
- Power Factor: Class A
- No Load Power: 4 W
- Efficiency: 85% at 100% load
- Isolation: 3000 VAC input to output
- Switching Frequency: 24–70 kHz
- Operating Temperature: 0°C to +60°C (derate at higher temps)
- Storage Temperature: -40°C to +85°C
- Humidity: 3% to 95% RH, non-condensing
- Protection: Internal fuse, continuous short circuit trip and restart
- Dimensions: US - 3.54 x 1.34 x 1.87 inches; EU - 3.54 x 1.34 x 2.26 inches; Others vary
- Weight: ~0.19 kg (0.42 lbs)
- Certifications: UL, TUV, CE, EN55022, EN61000-3-2/-3-3
- Vibration: 2 g, 15 mins/sweep
Buy the Buy XP Power VEL24 Series Power Supply Part Number VEL24US240USJA Online
Discover the XP Power VEL24 series, high-efficiency 24-watt power supplies designed for industrial and automation applications. Featuring universal input voltage ranging from 90 to 264 VAC, multiple output voltages from 12 V to 24 V, and compact dimensions for easy integration. Certified with UL, TUV, and CE standards, these power supplies provide excellent regulation, low standby power, and robust safety features such as internal fuses and isolation. Ideal for cost-sensitive projects requiring reliable, energy-efficient power solutions, available for easy online purchase.
Order your XP Power VEL24US240USJA power supply today and ensure reliable, energy-efficient power for your industrial or automation projects.
Frequently Asked Questions
Where can I buy XP POWER VEL24US240USJA?
You can click on the BUY or RFQ button to purchase VEL24US240USJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL24US240USJA?
You can download the VEL24US240USJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL24US240USJA?
XP POWER
