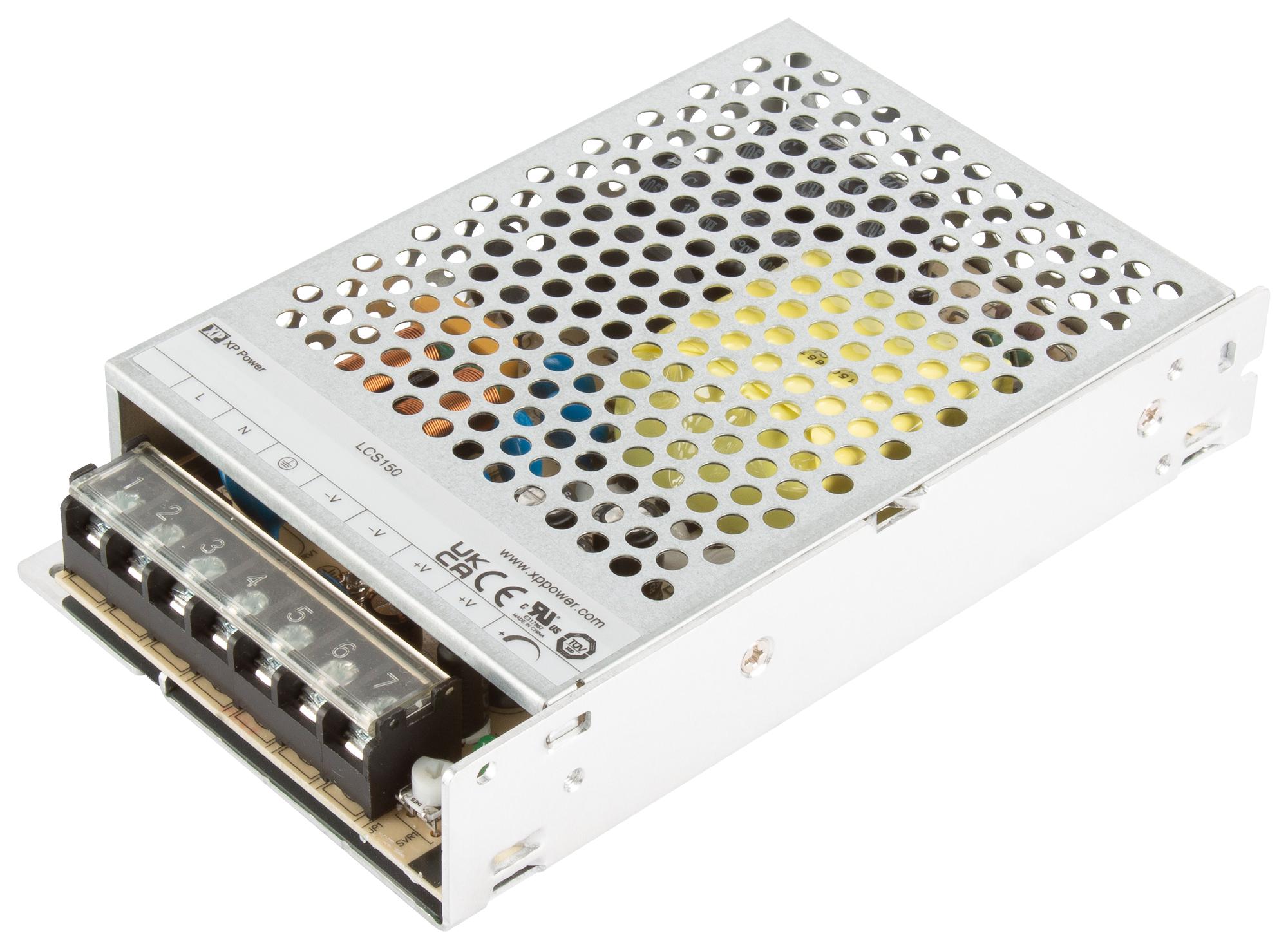

XP POWER LCS150US12 Power Supply
The LCS series of regulated output convection-cooled AC-DC power supplies offers a cost-effective solution for industrial electronics and technology applications. These 150W power supplies feature adjustable output voltage, a power 'ON' LED indicator, low standby power consumption, and comprehensive protection including short circuit, over current, and over voltage safeguards. They are suitable for auxiliary power sources, security systems, lighting control, smart home and office automation, as well as ticketing and vending applications. The units are convection-cooled, meet ITE, industrial, and household approvals, and include an integrated connector cover. They comply with Class B conducted and radiated emission standards, operate within an input voltage range of 85-264VAC, and withstand 300VAC for 5 seconds. Their operating temperature range spans from -30°C to +70°C, and they come with a 3-year warranty.
XP POWER LCS150US12 Power Supply Specifications:
- Power Output: 150W
- Input Voltage Range: 85-264VAC
- Input Voltage Withstand: 300VAC for 5s
- Output Voltages: 12V to 48VDC (adjustable ±10%)
- Output Current: 125A (12V), 10.08A (15V), 6.5A (24V), 43A (36V), 3.3A (48V)
- Efficiency: Up to 89%
- Ripple & Noise: 150mV pk-pk at full load
- Dimensions: 6.26 x 3.82 x 1.18 inches (159 x 97 x 30 mm)
- Operating Temperature: -30°C to +70°C
- Protections: Short circuit, overvoltage, overload
- Standby Power Consumption: Low
- Certifications: ITE, industrial & household approvals, Class B emissions
- Cooling: Convection
- Warranty: 3 years
Buy the XP Power Series LCS150 Power Supply: LCS150US12
Choose the XP Power Series LCS150US12 power supply for your industrial, security, or household automation projects. This 150W convection-cooled unit features adjustable output voltage, LED power indicator, robust protections, and wide input compatibility. Its efficient design ensures energy savings with up to 89% efficiency, while operating across a temperature range of -30°C to +70°C. Easy to install with standard dimensions and certifications for safety and EMC compliance, it’s the ideal choice for reliable, safe, and efficient power, backed by a three-year warranty for peace of mind.
Order your XP Power Series LCS150US12 convection-cooled power supply today and ensure reliable power delivery for your industrial and household projects.
Frequently Asked Questions
Where can I buy XP POWER LCS150US12?
You can click on the BUY or RFQ button to purchase LCS150US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS150US12?
You can download the LCS150US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS150US12?
XP POWER
