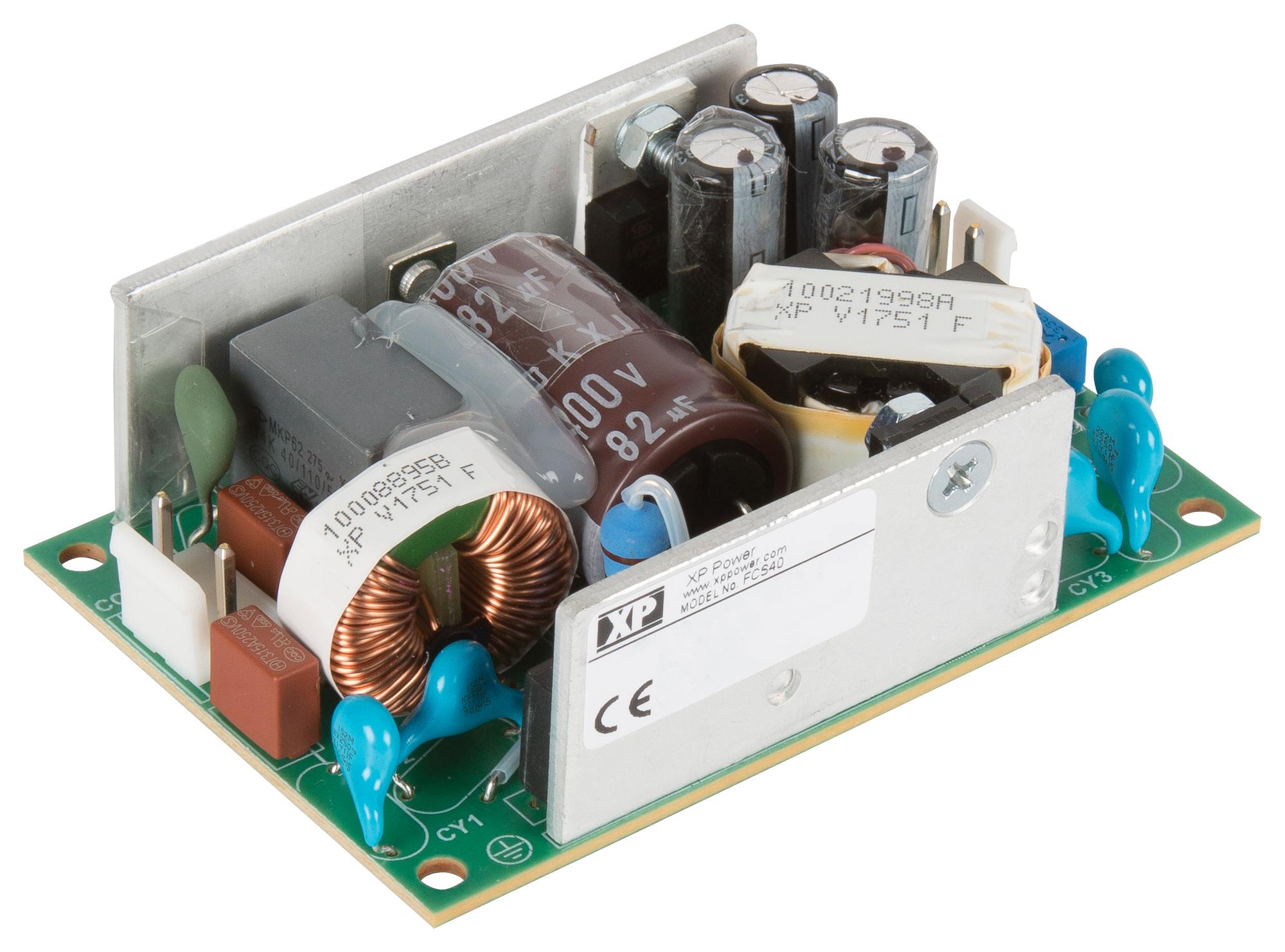

XP POWER FCS40US12 Power Supply
The FCS40 series is a high-efficiency, low-profile AC-DC power supply designed for medical, industrial, and household appliance applications. It offers up to 40W of convection-cooled power within a compact footprint of 2 inches by 3 inches and a height of just over 1 inch. This power supply operates across a wide input voltage range of 90V to 264VAC, with minimal de-rating down to 80VAC. It features two AC line fuses and meets low leakage current requirements for medical safety standards. Suitable for both Class I and Class II installations, the FCS40 series provides reliable, high-density power in a compact form factor, making it ideal for medical equipment and other sensitive applications.
XP POWER FCS40US12 Power Supply Specifications:
- Power Output: 40W convection-cooled
- Input Voltage Range: 90V to 264VAC, operates down to 80VAC with minimal de-rating
- Dimensions: 2 inches by 3 inches footprint, height 1.04 inches
- Efficiency: Up to 86% at full load 230VAC
- No Load Power: Less than 0.3W
- Protection: Two AC line fuses, overcurrent and short circuit protection
- Safety Standards: Complies with IEC 60601-1, IEC 60335-1, UL, CSA, and medical safety approvals
- Temperature Range: Operating from -25°C to +70°C with derating
- Isolation Voltage: Input to output 4000 VAC, input/output to ground 1500 VAC
- Weight: 86 grams (0.19 lbs)
Buy the Buy XP Power FCS40US12 Power Supply Part Number FCS40US12 Online
Enhance your equipment with the XP Power FCS40US12 high-efficiency power supply. Designed for medical, industrial, and household applications, it delivers up to 40W of convection-cooled power in a low-profile, compact footprint. Wide input voltage range, minimal no-load power, and robust safety features make it ideal for sensitive and demanding environments. Easy to install and maintain, this power supply ensures dependable operation with high efficiency and compliance with international safety and medical standards. Order now and optimize your system’s power performance effortlessly.
Order your XP Power SeriesFCS40US12 high-density power supply today and ensure reliable, efficient power delivery for medical and industrial projects.
Frequently Asked Questions
Where can I buy XP POWER FCS40US12?
You can click on the BUY or RFQ button to purchase FCS40US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FCS40US12?
You can download the FCS40US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of FCS40US12?
XP POWER
