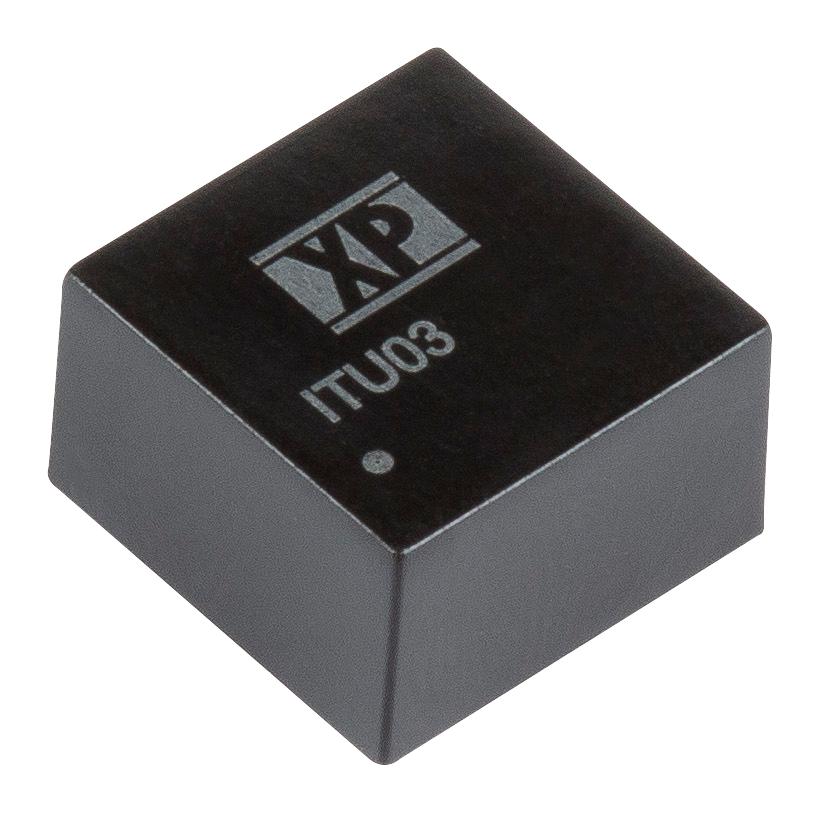

XP POWER ITU0312S05 DC-DC Converter
The ITU series offers a compact 3W DC-DC converter with a wide input voltage range of 4.5 to 18V, 9 to 36V, or 18 to 75V DC, and regulated outputs from 3.3 to 30V. Featuring high efficiency up to 84%, 1.6kVDC input/output isolation, and compact DIP8 package, it includes remote on/off, short circuit protection, and operates from -40°C to +80°C. Suitable for industrial applications, it ensures full power up to +70°C, with a robust design and a 3-year warranty.
XP POWER ITU0312S05 DC-DC Converter Specifications:
- Input Voltage Range: 4.5-18V, 9-36V, 18-75V DC
- Output Power: 3 Watts
- Output Voltage: 3.3V to 30V DC, regulated with 1% accuracy
- Efficiency: Up to 84%
- Isolation Voltage: 1.6 kVDC input/output
- Operating Temperature: -40°C to +80°C with full power up to +70°C
- Package Type: DIP8, compact size 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1mm)
- Protection Features: Short circuit, remote on/off
- MTBF: >820,000 hours (MIL-HDBK-217F, +25°C)
Buy the XP Power ITU0312S – Reliable DC-DC Converter for Industrial Applications
Enhance your power management with this reliable 3W DC-DC converter designed for industrial environments. It features wide input voltage options, regulated output voltages from 3.3V to 30V, high efficiency up to 84%, and robust protection features including short circuit protection and remote on/off. Its compact DIP8 package allows easy integration into space-constrained applications, operating reliably from -40°C to +80°C, with full power maintained up to +70°C. Backed by a 3-year warranty, it ensures durable performance for your critical systems.
Order your XP Power ITU0312S series 3W DC-DC converter today and ensure stable, reliable power supply for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ITU0312S05?
You can click on the BUY or RFQ button to purchase ITU0312S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0312S05?
You can download the ITU0312S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0312S05?
XP POWER
