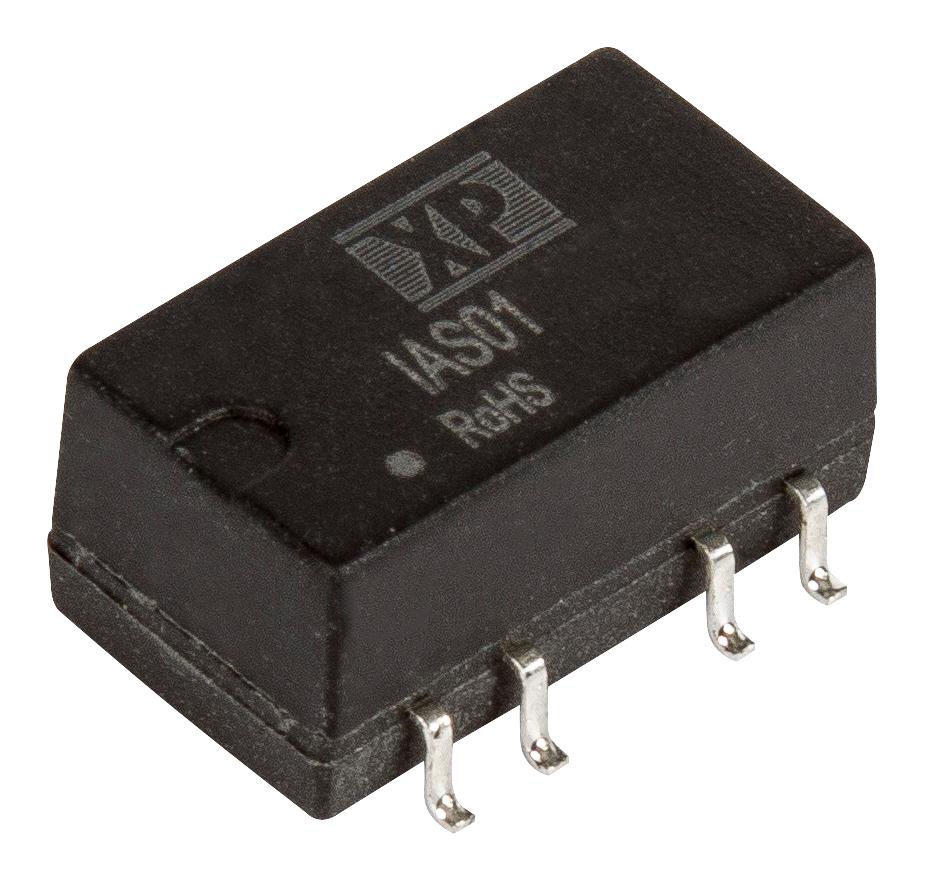

XP POWER IAS0112D12 Dual Output Power Supply
The IAS01 series DC-DC power supply provides an ideal solution for isolating voltage rails in distributed power supply architectures. It is suitable for industrial electronics, instrumentation, and technology applications. Features include unregulated dual ±12V outputs from a 12V input, an input voltage range of ±10%, industry-standard SMD10 DIP package with a standard pinout, and continuous short circuit protection. The power supply is certified with UL62368-1 safety approvals, operates from -40°C to +105°C, and can deliver full load up to +100°C. It comes with a 3-year warranty.
XP POWER IAS0112D12 Dual Output Power Supply Specifications:
- Input Voltage: ±12V
- Output Voltage: ±12V
- Output Current: 12mA (minimum), 241mA (maximum)
- Isolation Voltage: 1.5kVDC (standard), 3kVDC (optional)
- Operating Temperature: -40°C to +105°C
- Full Load Temperature: up to +100°C
- Efficiency: 83%
- Size: 0.600 x 0.335 x 0.285 inches (15.24 x 8.50 x 7.25 mm)
- Input Surge: 18/30V
- Surge Current: 9A to 18A
- Certifications: UL62368-1, cETLus
- Water Resistance: Non-soaking water wash
- Cooling Method: Natural convection
- Pin Material: Phosphor bronze
- Case Material: Flame retardant UL94V-0 plastic
- Switching Frequency: 260–278 kHz
- Input Ripple: 26.4 mV pk-pk
- Input Filter: Integrated capacitor
- Maximum Capacitive Load: 1200 µF
- Power Density: Calculated based on size and power output
- MTBF: 90,000 hours
- Weight: 1.45g
Buy the XP Power IAS01 – Reliable Dual Output Power Supply for Industrial Applications
Purchase the XP Power IAS01 series online today and enjoy a high-quality, reliable dual output power supply designed for industrial and instrumentation applications. Features include high efficiency, UL safety certification, broad temperature operation from -40°C to +105°C, and short circuit protection. Its compact size and industry-standard pinout ensure easy integration into various electronic systems. With a 3-year warranty, the IAS01 series guarantees long-lasting durability and optimal performance, making it an ideal choice for demanding industrial environments.
Get XP Power IAS01 series today—engineered for reliable performance in industrial, instrumentation, and electronic systems.
Frequently Asked Questions
Where can I buy XP POWER IAS0112D12?
You can click on the BUY or RFQ button to purchase IAS0112D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IAS0112D12?
You can download the IAS0112D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IAS0112D12?
XP POWER
