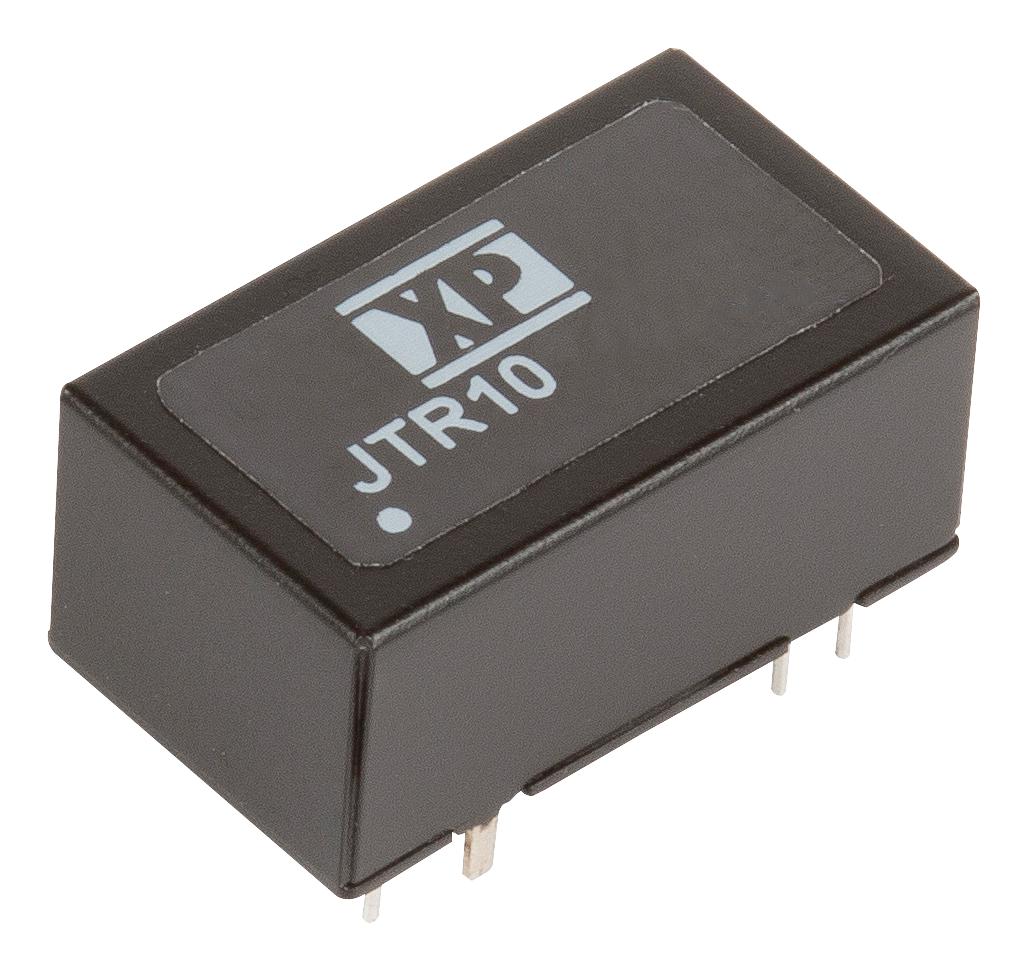

XP POWER JTR1024S3V3 DC-DC Power Converter
The JTR10 series are 10W DC-DC power converters housed in a compact DIP16 package. These converters feature ITE safety approvals and offer 1500VDC isolation voltage. They boast a high power density and are suitable for various applications. Key specifications include an ultra-wide 4:1 input voltage range, 500VDC isolation, and an operating temperature range from -40°C to +88°C, with full power output up to +70°C. The dimensions are 0.94 inches x 0.54 inches x 0.41 inches (23.8mm x 13.7mm x 10.3mm).
XP POWER JTR1024S3V3 DC-DC Power Converter Specifications:
- Input Voltage Range: 9V to 36V or 18V to 75VDC with 4:1 ratio
- Output Voltage: models available from 3.3V to 30VDC, dual outputs +12 & +15VDC
- Output Power: 10 Watts
- Isolation Voltage: 1500VDC
- Operating Temperature: -40°C to +88°C, full power up to +70°C
- Efficiency: up to 87%
- Safety Approvals: IEC/UL/cUL 62368-1 (pending)
- Dimensions: 0.94 x 0.54 x 0.41 inches (23.8 x 13.7 x 10.3mm)
- Case Material: Black coated copper with epoxy potting
- MTBF: >500,000 hours
- Weight: approx. 10 grams
- Switching Frequency: 370 kHz
Buy the XP Power Series JTR10 DC-DC Converter: JTR1024S3V3
Purchase the XP Power JTR1024S3V3 DC-DC power converter online for high efficiency, robust safety features, and a compact design. Ideal for industrial, automation, and control applications requiring reliable power. With a wide input voltage range of 9V to 36V or 18V to 75VDC, it offers versatile operation. Its 1500VDC isolation, efficient performance up to 87%, and temperature range from -40°C to +88°C ensure durability in demanding conditions. Buy now for quick shipping and dedicated customer support.
Get XP Power JTR1024S3V3 today—built for high efficiency and reliable performance in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER JTR1024S3V3?
You can click on the BUY or RFQ button to purchase JTR1024S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTR1024S3V3?
You can download the JTR1024S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTR1024S3V3?
XP POWER
