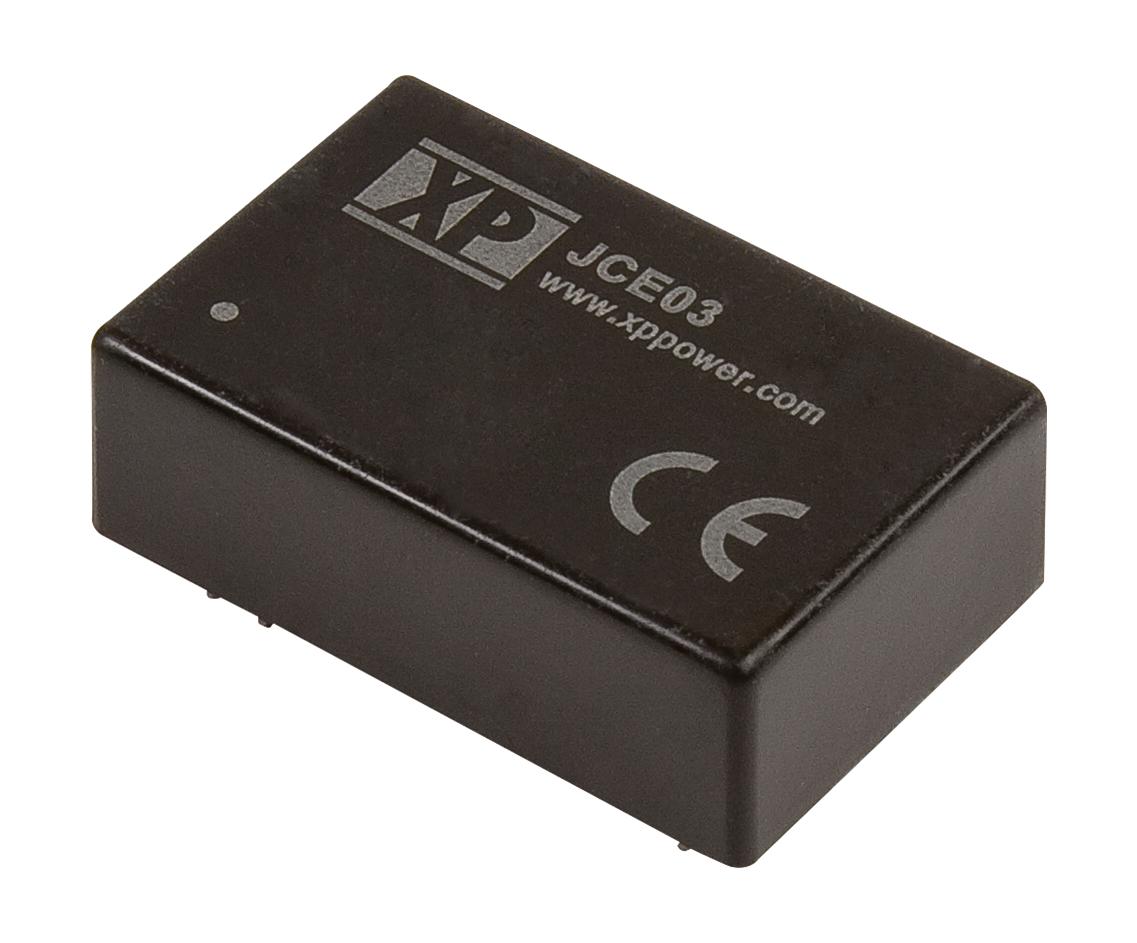

XP POWER JCE0312D12 DC-DC Converter
The JCE03 series is a compact, reliable 3-watt isolated DC-DC converter housed in an industry-standard DIP24 plastic case, ideal for industrial and automation applications. It features a 2:1 input voltage range (8V to 36V), fully regulated outputs, and an isolation barrier of 1500VDC, with an optional 3000VDC. Operating efficieny reaches up to 81%, and it functions within a temperature range of -40°C to 100°C. Suitable for sensing, instrumentation, process control, safety, and other industrial uses, it ensures long-lasting stability and performance.
XP POWER JCE0312D12 DC-DC Converter Specifications:
- Input Voltage Range: 8V to 36V DC
- Output Voltage: Options include 3.3V, 5V, 12V, 15V, 24V, with various current ratings
- Output Power: 3W
- Isolation Voltage: 1500VDC, optional 3000VDC with suffix '-H'
- Efficiency: Up to 81%
- Operating Temperature: -40°C to +100°C
- Operating Humidity: 5% RH non-condensing
- Cooling: Natural convection
- Dimension: 1.25 x 0.80 x 0.40 inches (31.75 x 20.32 x 10.16 mm)
- Input Filter: Pi type, Ripple & Noise: 80 mVp-p
- Short Circuit Protection: Continuous with auto recovery
- Weight: 0.03 lbs (13 grams)
Buy the XP Power JCE0312D12 – Reliable Industrial DC-DC Converter for Automation
Purchase the XP Power JCE0312D12 DC-DC converter online today to ensure your projects and industrial equipment operate at peak efficiency. This reliable module provides 3W of power with fully regulated outputs, high efficiency up to 81%, and 1500VDC isolation for safety and performance. Its compact DIP24 package fits easily into your designs, while the wide temperature range of -40°C to 100°C guarantees durability in harsh environments. Ideal for sensing, instrumentation, automation, and control systems, it delivers dependable results you can trust for long-term operation.
Get XP Power JCE0312D12 today—built for precision, long-lasting durability, and industrial automation needs.
Frequently Asked Questions
Where can I buy XP POWER JCE0312D12?
You can click on the BUY or RFQ button to purchase JCE0312D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JCE0312D12?
You can download the JCE0312D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JCE0312D12?
XP POWER
