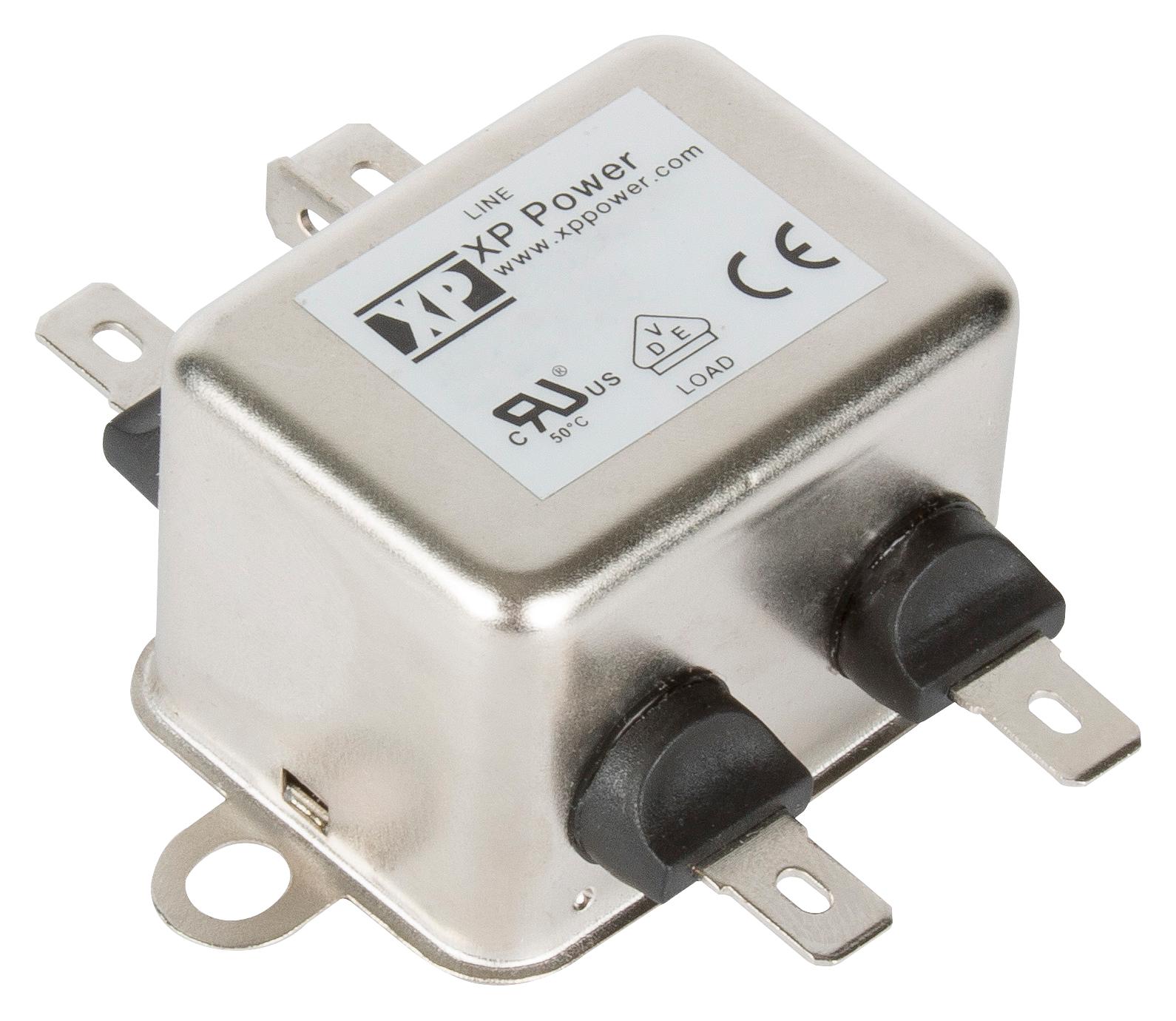

XP POWER FHSMM20A2FR Medical Chassis Filter
The FHSM single-stage chassis-mounted filter is designed for medical applications, featuring a compact metal enclosure with a shielded body. It offers low earth leakage current of 5µA at 250VAC. Equipped with 6.3 x 0.8mm Faston terminals for input and output connections, this filter should be installed near the mains entry to reduce radiated emissions. It includes a bleed resistor to safely discharge capacitors when power is disconnected and is rated for various currents including 1A, 3A, 6A, 10A, 15A, and 20A. The filter complies with safety standards EN60939-2 and ANSI/UL1283, operates across a wide temperature range from -40°C to +110°C, and is suitable for class I appliances.
XP POWER FHSMM20A2FR Medical Chassis Filter Specifications:
- Rated Voltage: 250 VAC
- Rated Current: 20 A
- Earth Leakage Current: 5 µA
- Input and output terminals: 6.3 x 0.8mm Faston
- Temperature Range: -40°C to +110°C
- Flammability Rating: UL 94V-2
- Dielectric Strength: 1500 VAC
- Safety Approvals: EN60939-2, ANSI/UL1283
- MTBF: 22 million hours (MIL-HDBK-217F at 40°C)
- IP Rating: Suitable for chassis mounting, minimal radiation
- Dimensions: Compact metal case (specific dimensions externally sourced)
Buy the XP Power FHSMM20A2FR – Reliable Medical Chassis Mount Filter for Industrial Applications
Experience the reliability and safety of the XP Power chassis-mounted filter designed for medical equipment. With low earth leakage, shielded metal body, and wide temperature operation, this filter ensures optimal EMI suppression and durability. Easily install near mains entry points using the robust Faston terminals for secure connections. Complying with EN60939-2 and UL1283 standards, it provides safe, efficient performance across multiple current ratings up to 20A. This high-quality filter is ideal for medical and industrial applications requiring safety, compactness, and precision.
Get XP Power FHSMM20A2FR today—built for medical precision, safety compliance, and long-lasting durability in demanding industrial environments.
