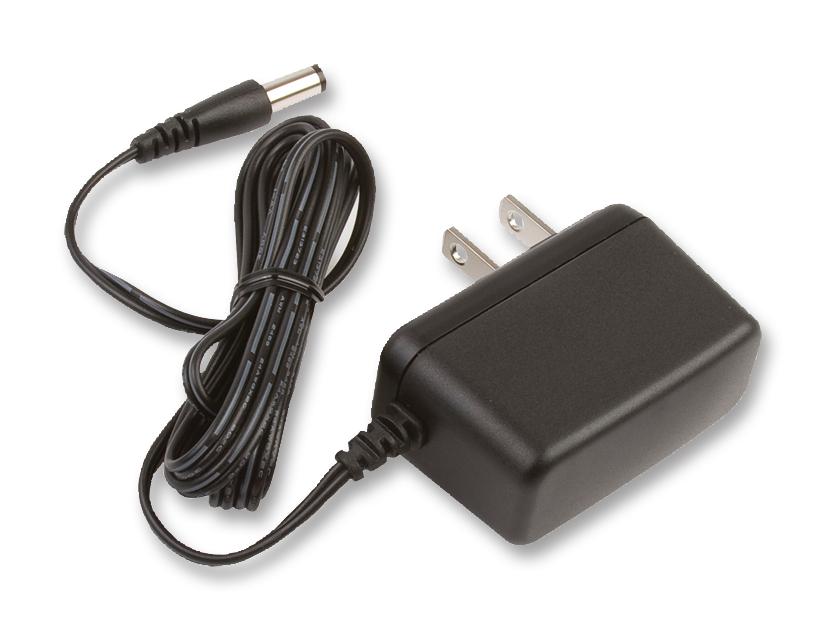

XP POWER VEL36US240USJA AC-DC Power Supply
The VEL36 series AC-DC power supplies deliver 36 watts with high energy efficiency Level VI and low no-load power consumption, making them ideal for cost-sensitive applications requiring reliable power conversion. They feature universal input voltage from 90 to 264 VAC, multiple output voltages (12V, 15V, 18V, 24V), and typical efficiencies of 87% at various loads. With robust protection features, a compact design, and compliance with international safety standards, these power supplies are suitable for industrial, automation, and electronic device applications.
XP POWER VEL36US240USJA AC-DC Power Supply Specifications:
- Input Voltage: 90 - 264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.8 A at 115 VAC, 0.4 A at 230 VAC
- Power Factor: EN61000-8-2, class A
- Output Voltages: 12 V, 15 V, 18 V, 24 V
- Output Current: up to 3000 mA
- Efficiency: 87 % at 25%, 50%, 75%, 100% load and 115 VAC
- Total Regulation: 5 %
- Start Up Delay: 4 s
- Hold Up Time: 8 ms at full load and 100 VAC
- Isolation: 3000 V AC input to output
- Switching Frequency: 24 - 70 kHz
- Operating Temperature: 0°C to +60°C, derating at higher temperatures
- Operating Humidity: 5 - 95 % RH, non-condensing
- Weight: approximately 0.34 lbs (UK version)
- Certifications: UL, TUV, CE, CB, RoHS
- Efficiency Level: VI, meets DOE standards
- Protection: Short circuit, overload, over-voltage
- Cooling: Natural convection
Buy the Buy XP Power VEL36 Series AC-DC Power Supplies Part Number VEL36US240USJA Online
Purchase the XP Power VEL36US240USJA AC-DC Power Supply online today to ensure your electronic devices operate reliably with industry-leading efficiency. With universal input and multiple output voltages, this power supply is suitable for industrial, automation, and consumer electronics. Its compact design, high efficiency level VI compliance, and robust protection features make it a top choice for cost-sensitive applications. Enjoy fast delivery, secure checkout, and dedicated customer support by buying online now.
Buy XP Power VEL36US240USJA now and experience unmatched reliability and performance in compact, energy-efficient power solutions for your electronics.
Frequently Asked Questions
Where can I buy XP POWER VEL36US240USJA?
You can click on the BUY or RFQ button to purchase VEL36US240USJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL36US240USJA?
You can download the VEL36US240USJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL36US240USJA?
XP POWER
