XP POWER ISB0148S15 DC-DC Converter
The ISB01 series is a compact 1W regulated DC-DC converter available in single and dual output versions, featuring a 2:1 input voltage range. It has a small SMD package measuring 18.9mm x 17.2mm x 8.7mm, weighing 4.5g. The device provides 1500VDC input-to-output isolation, ensuring safety and noise immunity. It supports continuous short circuit protection with auto recovery, is certified under IEC60950-1 and UL standards, and operates reliably from -40°C to 95°C. Its specifications include ±1% initial accuracy, ±0.2% line regulation, ±1% load regulation, and 220kHz switching frequency.
XP POWER ISB0148S15 DC-DC Converter Specifications:
- Input Voltage Range: 4.5-9V, 9-18V, 36-75V with corresponding typical inputs
- Output Voltage: 5V, 12V, 15V options with ±1% initial accuracy
- Output Power: 1 Watt
- Isolation: 1500VDC between input and output
- Operating Temperature: -40°C to +95°C
- Dimensions: 18.9mm x 17.2mm x 8.7mm
- Weight: 4.5 grams
- Switching Frequency: 220kHz
- Efficiency: Up to 82%
- Certifications: IEC60950-1, UL/cUL60950-1
- Input Ripple: Specifications vary with model
- Remote On/Off: Yes
- Short Circuit Protection: Continuous with auto recovery
- Material: Non-conductive black plastic case rated UL 94V-0
- Humidity: 5%RH non-condensing

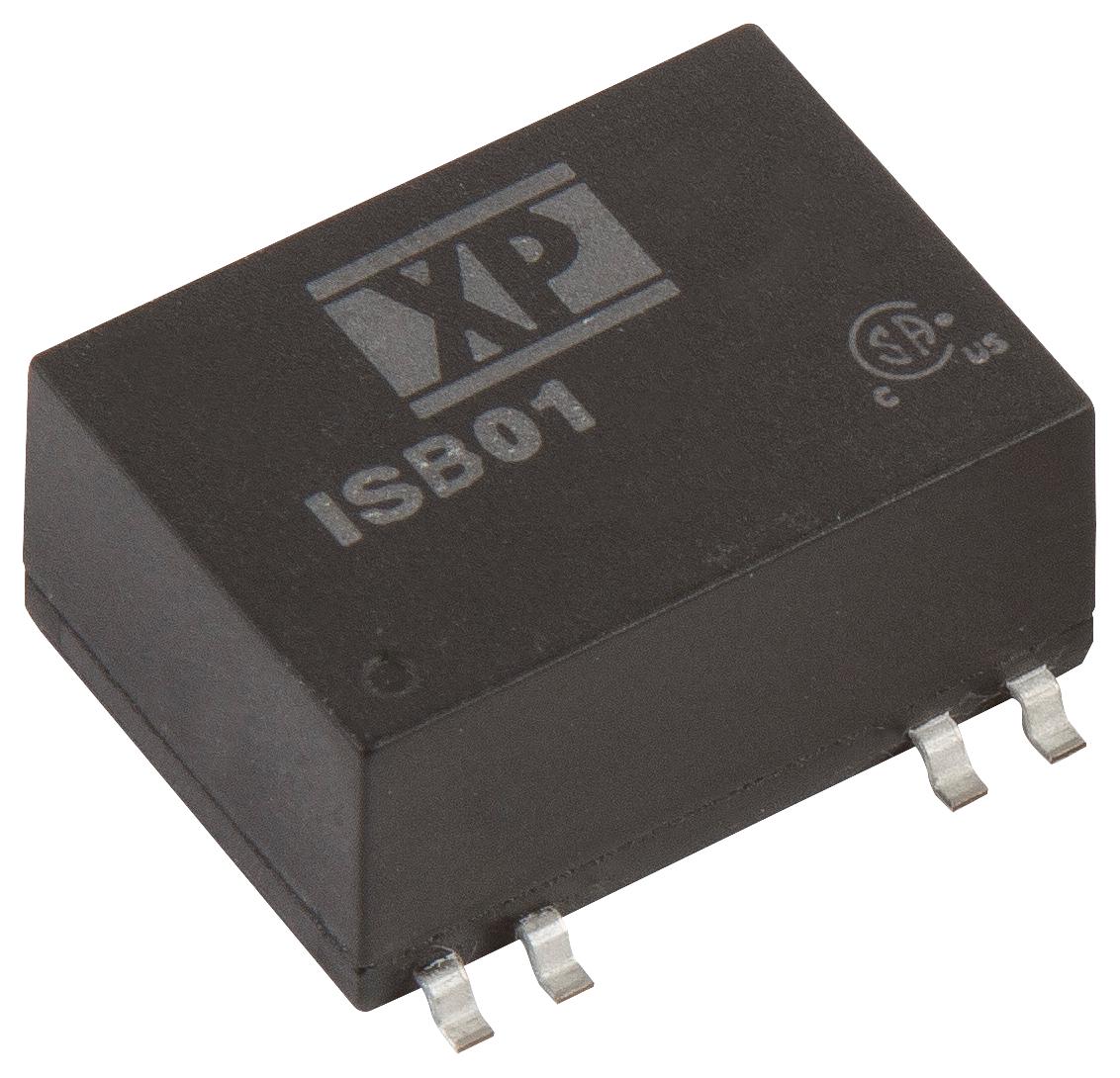

Buy the XP Power Series ISBO1 DC-DC Converter: ISB0148S15
Purchase the XP Power ISB0148S15 today to ensure reliable power conversion with a compact design, 1500VDC isolation, and wide temperature support. Designed for industrial environments, this 1W regulator offers excellent efficiency, automatic short circuit recovery, and remote on/off control. Its small surface-mount package fits easily into various systems, making it ideal for power management, industrial automation, and safety-critical applications. Experience high quality and durability by ordering this efficient DC-DC converter online now.
Get XP Power ISB0148S15 today—built for precision and long-lasting durability in industrial and power management applications.
