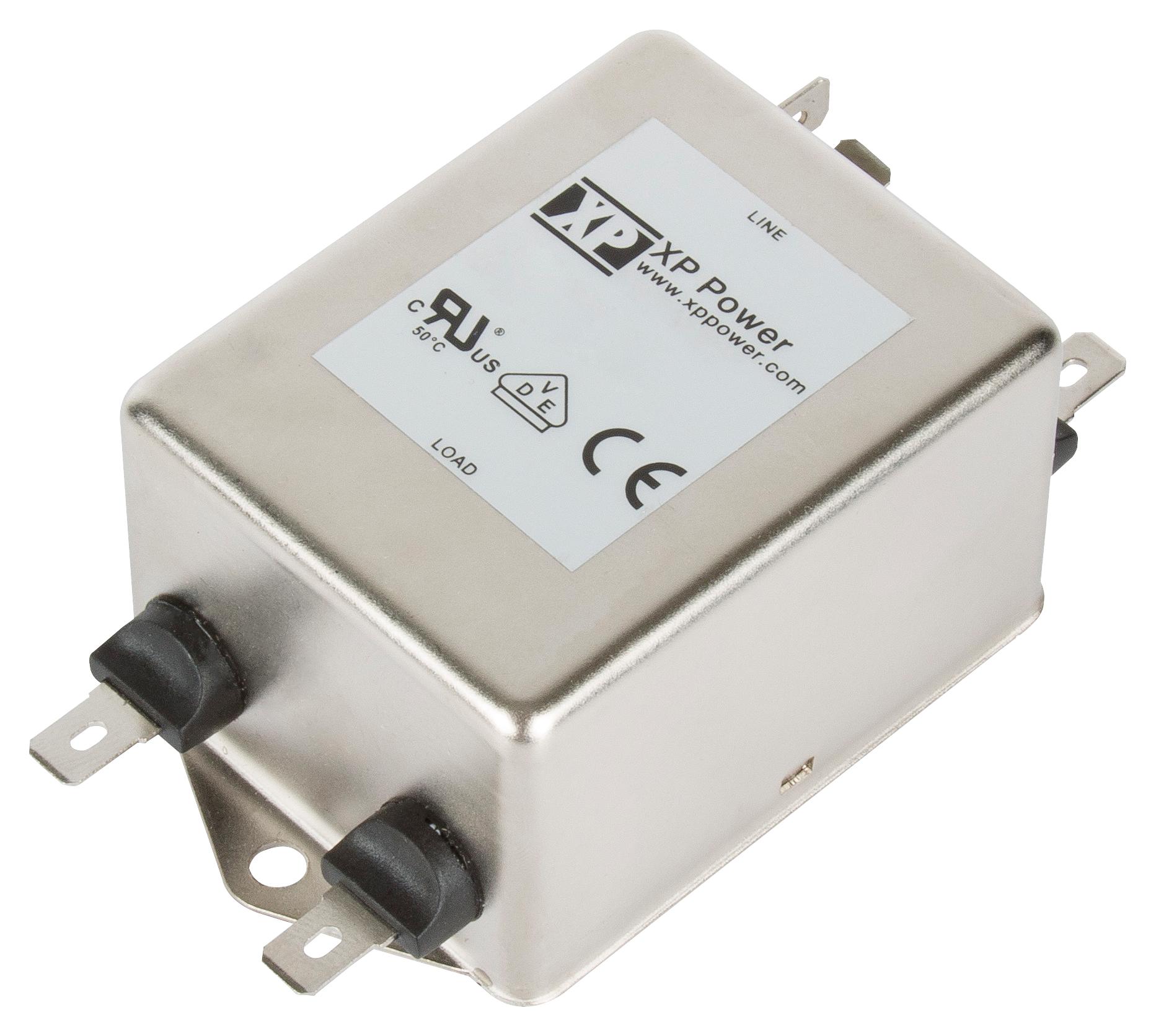

XP POWER FIHMA20C2F Chassis Mount Filter
The FIHM high attenuation dual-stage filters are designed for medical applications and are housed in a compact, chassis-mounting metal case. They provide low earth leakage current of 5μA at 250VAC. These filters feature dual-stage attenuation, a shielded metal body, and are fitted with a bleed resistor to safely discharge the filter capacitors when power is disconnected. Input and output connections are made via 6.3 x 0.8mm Faston terminals. They should be installed close to the mains cable entry point to reduce radiated emissions. Suitable for Class I appliances, these filters meet safety standards EN60939-2 and ANSI/UL1283. They operate across a temperature range of -40°C to +110°C, with full power up to +50°C. Available in various current ratings including 1A, 3A, 6A, 10A, 15A, and 20A.
XP POWER FIHMA20C2F Chassis Mount Filter Specifications:
- Rated Voltage: 250 VAG
- Input Frequency: DG 400 Hz
- Rated Current: 20 A
- Earth Leakage Current: 5 μA
- Temperature Range: -40°C to +110°C
- Power: Full operation up to +50°C
- Terminals: 6.3 x 0.8mm Faston
- Protection Class: Suitable for Class I appliances
- Dielectric Strength: 1500 VAG
- Safety Approvals: EN60939-2, ANSI/UL1283
- Flammability Rating: UL94V-0
- Housing: Shielded metal body
- Dimensions: External size approximately 2.57 x 1.55 inches
- Weight: 130 grams
Buy the XP Power Series Chassis Mount Filter: FIHMA20C2F
Order the XP Power FIHMA20C2F chassis mount filter online today to ensure your medical equipment meets safety standards with reliable EMI suppression. This solution offers dual-stage attenuation, low earth leakage at 250VAC, and wide temperature operation. Easy to install near mains entry points, its shielded metal housing provides durability and safety. With certifications including EN60939-2 and UL1283, this filter guarantees compliance and safety for Class I appliances. Secure your purchase now for quality and peace of mind in medical device applications.
Buy XP Power FIHMA20C2F chassis mount filter now and experience unmatched reliability and performance in medical applications.
Frequently Asked Questions
Where can I buy XP POWER FIHMA20C2F?
You can click on the BUY or RFQ button to purchase FIHMA20C2F from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FIHMA20C2F?
You can download the FIHMA20C2F datasheet or visit the XP POWER website for support.
Who is the manufacturer of FIHMA20C2F?
XP POWER
