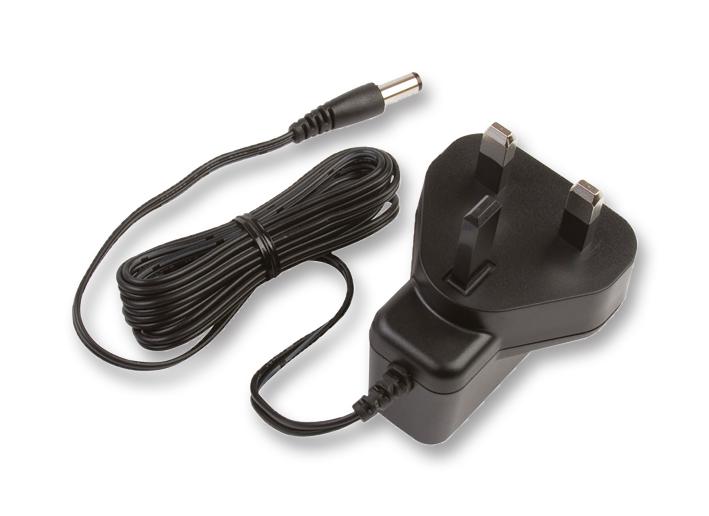

XP POWER VEL12US120UKJA AC-DC Power Supply
The VEL12 series AC-DC power supplies are highly efficient, low-noise units designed for industrial, electronic, and automation applications. They feature universal input voltage (90-264 VAC), multiple output voltages from 5.0V to 12.0V, and comply with energy efficiency standards Level VI. With a compact form factor, the power supplies provide reliable performance, low no-load power consumption, and are suitable for cost-sensitive or industrial environments. They include built-in protection features, such as short circuit protection and overvoltage control, ensuring safe operation in various operating conditions.
XP POWER VEL12US120UKJA AC-DC Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Input Current: 0.3 A at 100 VAC
- Start Up Delay: 30 ms
- Efficiency: 79-83% at 25%, 50%, 75%, 100% load
- Output Voltages: 5.0V, 9.0V, 12.0V (others available)
- Output Current: 2100 mA for 5V, 1280 mA for 9V, 1000 mA for 12V
- Total Regulation: ±5%
- Isolation Voltage: 3000 VAC input to output
- Operating Temperature: 0°C to +60°C, derating at high temperature
- Protection: Short circuit, overvoltage, and overcurrent
- Physical Dimensions: US: 2.99 x 1.16 x 1.73 inches; EU: 2.99 x 1.16 x 1.55 inches
- Weight: Approximately 0.19 kg
- Cooling: Natural convection
- Operating Humidity: 95% RH non-condensing
- Certification: UL, EN60950-1, CE, RoHS
Buy the XP Power VEL12U120 – Reliable AC/DC Power Supply for Industrial Applications
Purchase the XP Power VEL12 series AC-DC power supplies online today and ensure your devices operate reliably with high efficiency and advanced protection features. These compact and versatile units support universal input voltage and deliver stable output voltages from 5.0V to 12.0V, making them ideal for industrial automation, electronic equipment, and cost-sensitive applications. Enjoy quick delivery, secure checkout, and the confidence of a trusted brand known for quality and durability. Upgrade your power solutions now for optimal performance and peace of mind.
Buy XP Power VEL12U120 now and experience unmatched reliability and high efficiency for your industrial and electronic power needs.
Frequently Asked Questions
Where can I buy XP POWER VEL12US120UKJA?
You can click on the BUY or RFQ button to purchase VEL12US120UKJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL12US120UKJA?
You can download the VEL12US120UKJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL12US120UKJA?
XP POWER
