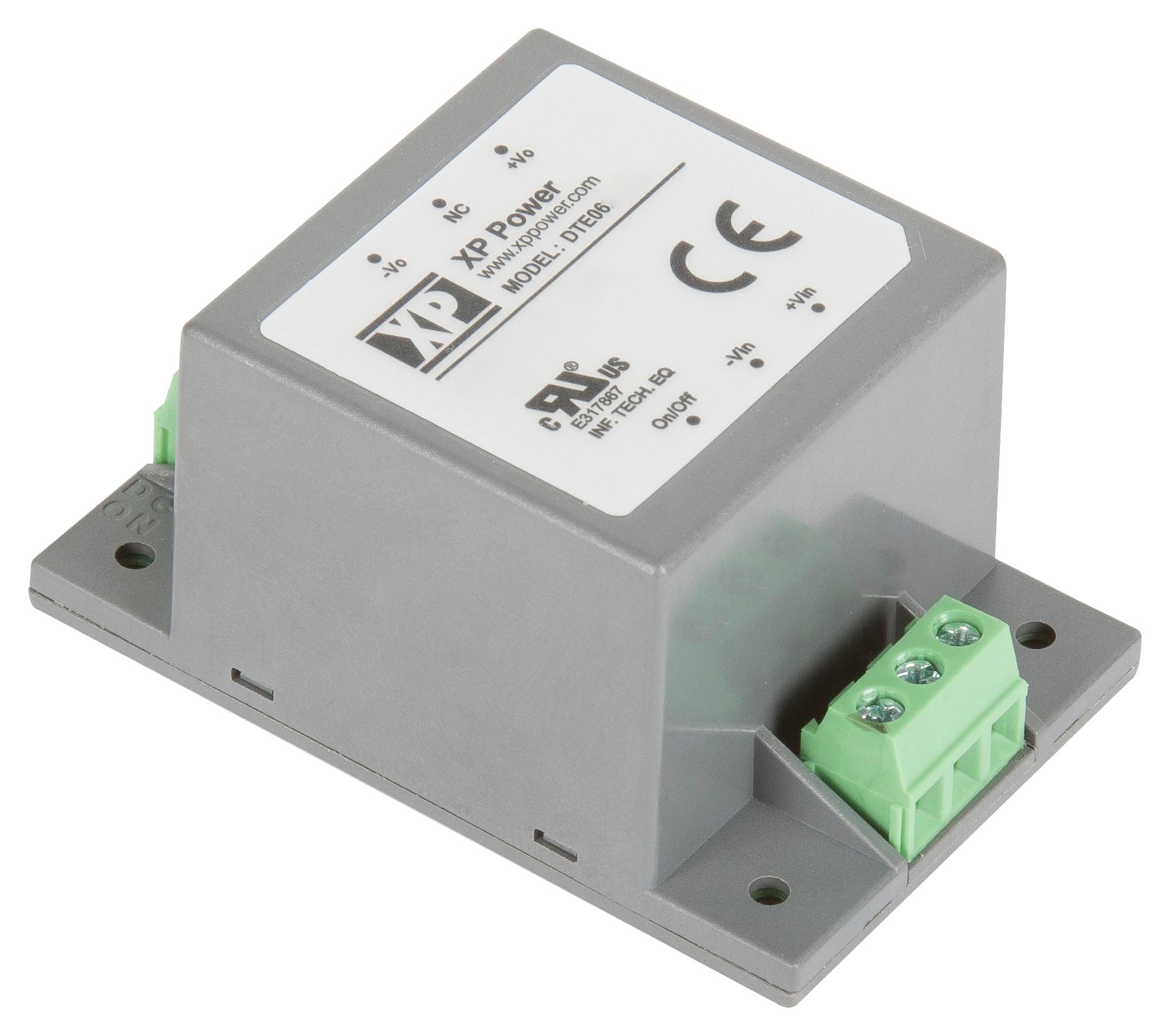

XP POWER DTE0648D15 DC-DC Converter
The DTE06 series are encapsulated 6W DC to DC converters featuring screw terminals for easy connection. They include an LED indicator for power status and standard remote On/Off control, with standby current reduced to just 2.5mA when inhibited. These modules provide 3kVDC isolation between input and output, ensuring excellent separation. They are fully protected against input undervoltage, short circuits, and overloads. Designed for rugged industrial and commercial use, they operate reliably across a temperature range of -40°C to +105°C, with full power available up to 80°C. The series is certified with IEC/UL/cUL 62368-1 safety approvals and complies with EN55032 Class A standards without external components. The units measure 2.09 x 1.34 x 1.04 inches (53.0 x 34.0 x 26.5 mm) and have an MTBF greater than 4 million hours.
XP POWER DTE0648D15 DC-DC Converter Specifications:
- Input Voltage Range: 9-36 V or 18-75 V depending on model, with wide 4:1 input ratio
- Output Voltages: 5.1V, 12V, 15V, 24V, 48V (varies by model)
- Output Current: Ranges from 150 mA to 1.20 A depending on output voltage
- Efficiency: Up to 85%
- Isolation: 3kVDC input/output
- Operating Temperature: -40°C to +105°C, full power to 80°C
- Dimensions: 2.09 x 1.34 x 1.04 inches (53.0 x 34.0 x 26.5 mm)
- Protection: Input undervoltage, short circuit, overload
- Safety Approvals: IEC/UL/cUL 62368-1, EN55032 Class A
- MTBF: Greater than 4 million hours
- Remote On/Off: Yes, with logic control
- Standby Current: 2.5mA when inhibited
- Mechanical: Fully encapsulated, screw terminal connection
- Certifications: UL Listed, cUL Listed
Buy the XP Power DTE0648D15 – Reliable DC-DC Converter for Industrial Applications
Enhance your industrial or commercial projects with the XP Power DTE0648D15 DC-DC converter. Featuring 6W power, 3kV isolation, remote On/Off capability, and a rugged design, it ensures stable operation across wide temperature ranges. Easy screw terminal connections simplify installation, while the LED indicator provides clear power status. Certified safety standards and high MTBF make it trusted for demanding applications. Upgrade your systems today by purchasing online and ensure reliable power conversion in your industrial applications.
Buy XP Power DTE0648D15 now and experience unmatched reliability and performance in demanding industrial environments.
