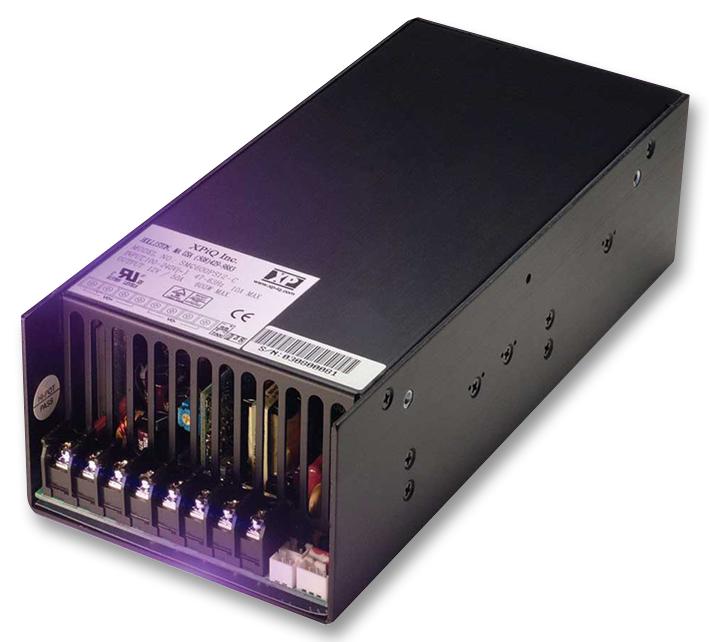

XP POWER SMC500PS24C industrial power supply
The SMC Series power supply provides reliable DC output with active PFC, remote On/Off, and optional current sharing. Designed for industrial and automation applications, it features high peak load rating, efficient operation (80% min at 230 VAC), and a compact design with integral fan for cooling. Compatible with various output voltages from 3.3V to 54V, it includes robust protections such as over/under voltage, over temperature, and short circuit. It complies with SEMI F47, safety standards, and offers a MTBF of 100,000 hours, making it ideal for demanding industrial environments.
XP POWER SMC500PS24C industrial power supply Specifications:
- Input Voltage: 90-264 VAC (120-370 VDC)
- Efficiency: Min 80% at 230 VAC, 70% for Vo <5V
- Isolation: 3000 VAC Input to Output, 1500 VAC Input to Ground
- Input Current: 9 A at 90 VAC, 3.5 A at 230 VAC
- Inrush Current: 40 A at 230 VAC
- Switching Frequency: 100 kHz PFC, 25 kHz PWM
- Power Density: 6.93 W/in³
- Output Voltage: 3.3V to 54V selectable according to model
- Output Current: Up to 90A depending on model
- Ripple & Noise: 75 mV to 540 mV depending on model
- MTBF: 100,000 hours minimum
- Operating Temperature: 0°C to +70°C, derates above 50°C
- Protection: Over/Under voltage, Overtemperature, Short circuit, Overload
- EMC & Safety: Complies with FCC Part 15, CISPR 22 B, UL 60950, CSA C22.2
- Cooling: Integral fan (SMD units require 30 CFM forced air)
- Dimensions: In inches, approx. 8.8 x 2.5 x 1.6 for the U-channel version
- Weight: 3.30 lbs (1.5 kg) approx.
- Certifications: UL, CSA, CE, SEMI F47
- Remote Sense: Supports line drop compensation
- Remote On/Off: TTL logic control
- Current Share: Optional, up to 4 units
- Safety & EMC: Meets EN61000 series standards, includes ESD, EFT, surge protection
Buy the SMC Series Power Supply: 90-264VAC 54V 90A SMC500PS24C
Enhance your industrial automation with the SMC Series power supply. Featuring active PFC, remote On/Off, current sharing, and SEIMI F47 compliance, this powerful unit offers efficient operation with top-grade safety and protection features. Designed for outputs from 3.3V to 54V and current up to 90A, it ensures stable power delivery even in demanding conditions. Easy to install with integral cooling, it is ideal for manufacturing plants, control systems, and automation projects. Purchase online now for fast, reliable delivery and comprehensive support.
Buy SMC Series power supply SMC500PS24C now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER SMC500PS24C?
You can click on the BUY or RFQ button to purchase SMC500PS24C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SMC500PS24C?
You can download the SMC500PS24C datasheet or visit the XP POWER website for support.
Who is the manufacturer of SMC500PS24C?
XP POWER
