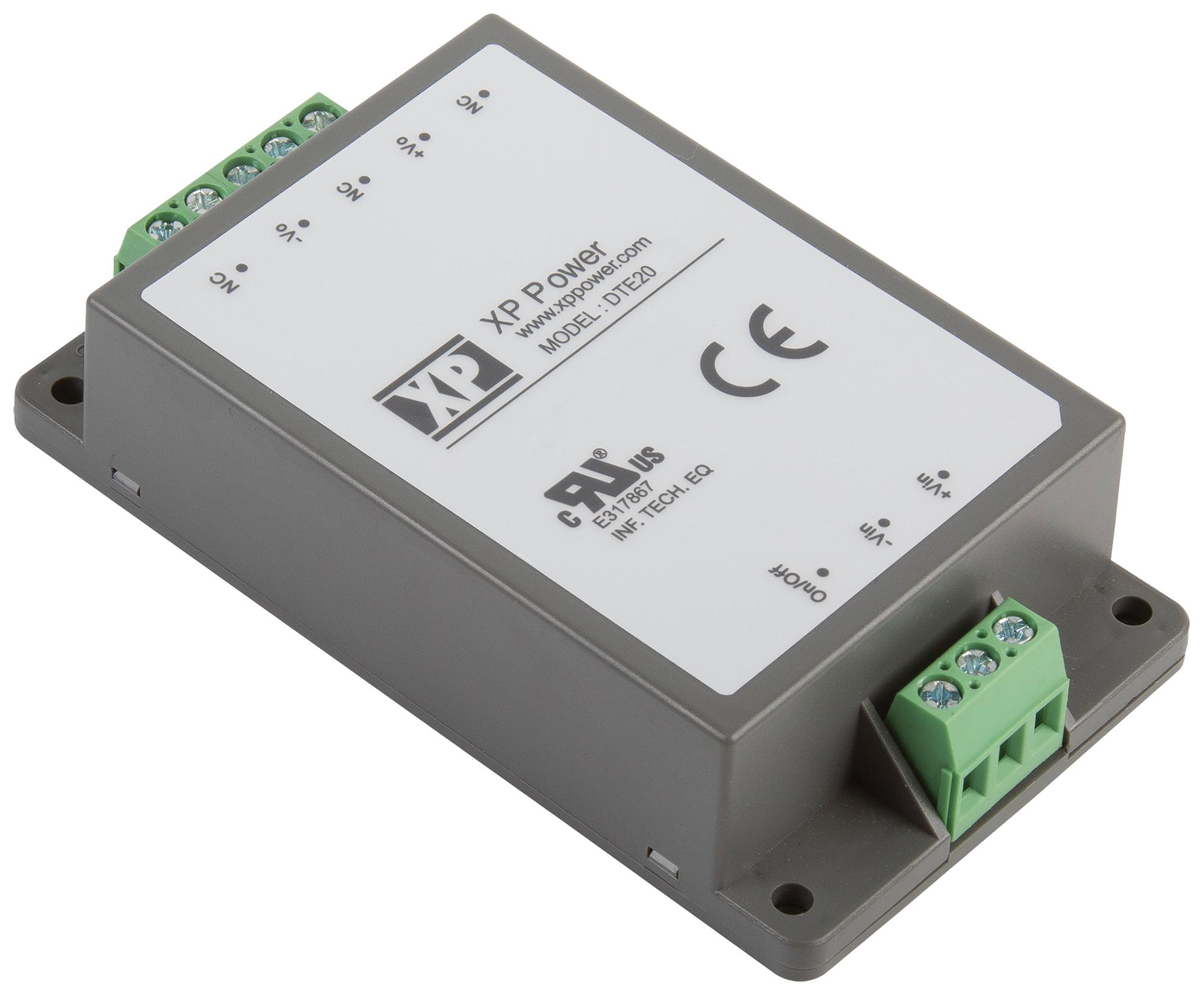

XP POWER DTE2024S48 DC-DC Converter
The DTE20 series is a 20W fully encapsulated, chassis mount DC to DC converter featuring a wide 4:1 input voltage range. It includes short circuit protection with trip and restart functions, overload protection, and an isolation voltage of 2500VDC. The converter operates efficiently at up to 91%, with a broad temperature range from -40°C to 95°C. Additional features include remote on/off control and compliance with EN55022 Conducted Level A without external components. Suitable for power management and industrial applications.
XP POWER DTE2024S48 DC-DC Converter Specifications:
- Power Output: 20 Watts
- Input Voltage Range: 24VDC to 48VDC, wide 4:1 input ratio
- Output Voltage: 24V or 48V
- Output Current: 0.835 A (24V), 0.375 A (48V)
- Efficiency: Up to 91%
- Isolation Voltage: 2500VDC
- Operating Temperature: -40°C to +95°C
- Storage Temperature: -50°C to +125°C
- Dimensions: 3.78 x 2.13 x 0.92 inches (96.0 x 54.0 x 23.3 mm)
- Protection: Short circuit, overload, undervoltage lockout
- Safety Approvals: IEC/UL/cUL62368-1
- Standards Compliance: EN55022 class A, IEC60950-1, UL60950-1
- Remote On/Off: Yes
- Mounting: Chassis mount, optional DIN rail version
- Mounting Features: Screw terminals, LED power indicator
- Environmental: Humidity 5-95% RH non-condensing, shock and vibration resistant
- Cooling: Natural convection
Buy the Buy XP Power DTE20 Series Part Number DTE2024S48 Online
Purchase the XP Power DTE20 series 20W DC-DC converter online today to benefit from a highly efficient, rugged, and compact power solution. Featuring a broad input voltage range from 24VDC to 48VDC, this fully encapsulated module provides reliable power with up to 91% efficiency. It offers comprehensive protection including short circuit, overload, and undervoltage lockout, alongside an isolation of 2500VDC for safety. With remote on/off control, wide operating temperature from -40°C to 95°C, and compliance with IEC62368-1 and EN55022 standards, it’s ideal for industrial, automation, and power management applications.
Order your XP Power DTE2024S48 series 20W power supply today and ensure reliable, efficient power for your industrial and commercial projects.
Frequently Asked Questions
Where can I buy XP POWER DTE2024S48?
You can click on the BUY or RFQ button to purchase DTE2024S48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE2024S48?
You can download the DTE2024S48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE2024S48?
XP POWER
