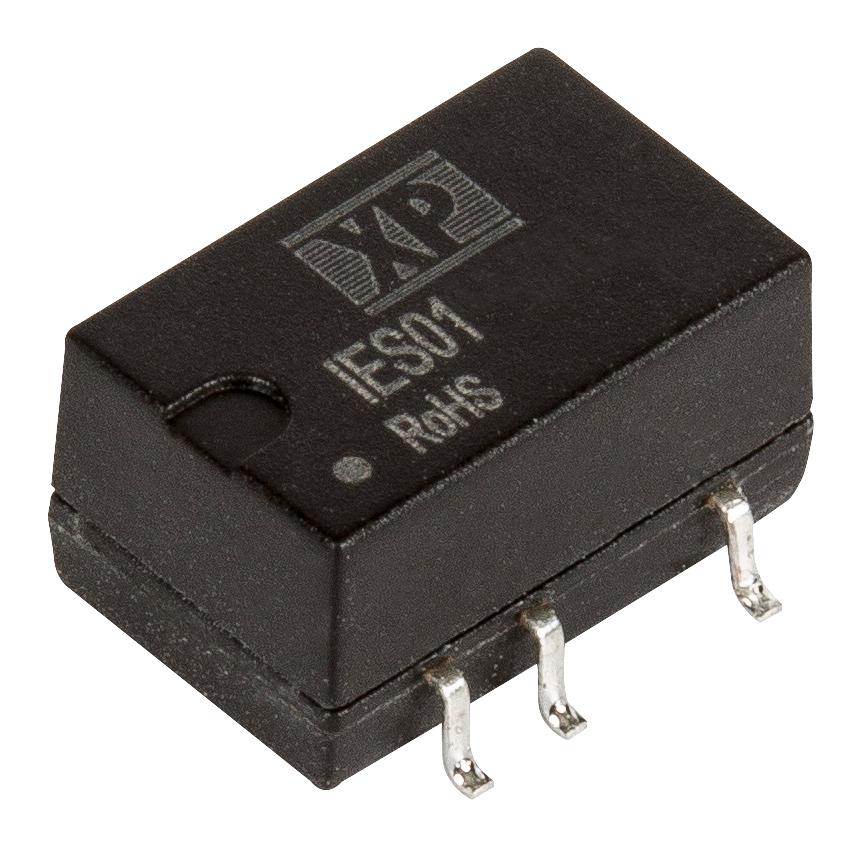

XP POWER IES0115S15 DC-DC Power Supply
The IES01 series single output DC-DC power supply provides an ideal solution for isolating voltage rails in distributed power supply architectures, such as analogue, digital, data, and relay circuits. It features a regulated 15V output from a 15V input voltage with ±10% input range, housed in an SMD8 DIP package with an industry-standard pinout. The power supply offers continuous short circuit protection, UL62368-1 safety approvals, and operates reliably from -40°C to +105°C, maintaining full load performance up to +100°C. It comes with a 3-year warranty.
XP POWER IES0115S15 DC-DC Power Supply Specifications:
- Input Voltage: 26.4V to 48V DC
- Output Voltage: 15V DC
- Output Current: 8mA to 86mA at full load depending on model
- Isolation: 1500/3000 VDC
- Efficiency: Up to 83%
- Operating Temperature: -40°C to +105°C
- Storage Temperature: -55°C to +125°C
- Dimensions: 0.52 in x 0.335 in x 0.285 in (13.2 mm x 8.5 mm x 7.25 mm)
- Weight: 0.003 lbs (1.4 g)
- Switching Frequency: approx. 270 kHz
- Isolation Resistance: >10 MΩ at 500VDC
- Compliance: UL62368-1, CE, UKCA
- Water Wash: Non-soaking, de-ionised water, dry thoroughly
Buy the XP Power IESO1 – Reliable 15V DC-DC Power Supply for Industrial Applications
Purchase the XP Power IESO1 single output DC-DC power supply online now to ensure reliable voltage isolation and high efficiency for your industrial, automation, and electronic control systems. Designed for harsh environments, it offers operating temperatures from -40°C to +105°C, with UL safety certifications, full load performance, and a compact form factor measuring 0.52 x 0.335 x 0.285 inches. With short circuit protection and a durable, flame-retardant UL94V-0 case, this power supply minimizes downtime and guarantees long-term dependable operation for demanding applications.
Get XP Power IESO1 today—built for precision, high temperature efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER IES0115S15?
You can click on the BUY or RFQ button to purchase IES0115S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IES0115S15?
You can download the IES0115S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IES0115S15?
XP POWER
