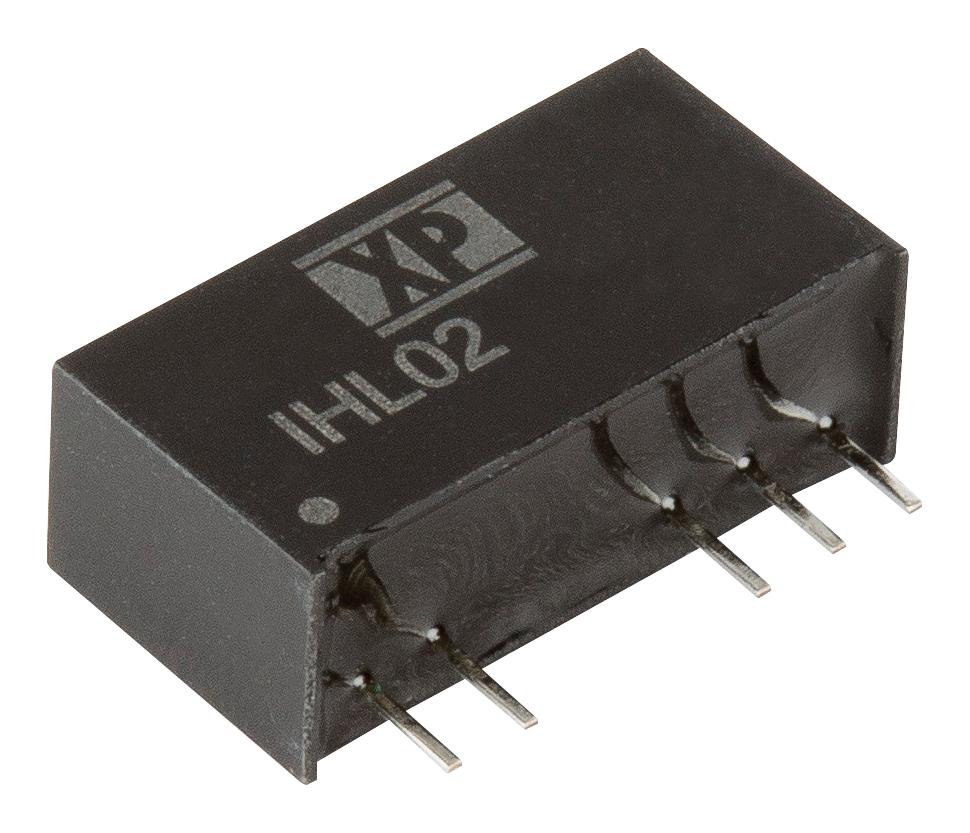

XP POWER IHL0215D12 DC-DC Converter
The IHL02 series is a 2W dual output DC-DC converter housed in a 7-pin SIP package. It features bipolar outputs suitable for MOSFET and IGBT drives, with high isolation of 5,200VDC and a working voltage of 250VAC. The converter offers single and dual output options, operates over a temperature range from -40°C to 95°C, and provides full load performance at 65°C ambient. It includes continuous short circuit protection, making it ideal for power management and industrial applications.
XP POWER IHL0215D12 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5,200 VDC (functional insulation)
- Working Voltage: 250 VAC
- Input Voltage Range: 13.5V to 165V
- Output Voltage Range: 3.3V to 30V
- Output Current: Up to 72V models with specified loads
- Operating Temperature: -40°C to +95°C, full load at 65°C
- Mounting: SIP7 package
- Isolation Resistance: 10 MΩ
- Isolation Capacitance: 7 pF
- Switching Frequency: 50-100 kHz
- Efficiency: 80%
- MTBF: 33 million hours
- Case Material: Non-conductive UL94V-0 plastic
- Solder Material: Solder coated phosphor bronze
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
Buy the XP Power Series IHLO2 DC-DC Converter: IHL0215D12
Purchase the XP Power IHLO2 series DC-DC converter online today to ensure dependable power conversion with high isolation of 5200VDC, operating over a wide temperature range from -40°C to 95°C. This 2-watt device features bipolar outputs suitable for MOSFET and IGBT drives, full load performance at elevated temperatures, and continuous short circuit protection. Ideal for industrial and power management applications, it guarantees longevity, efficiency, and safety in demanding environments. Buy now for secure and efficient power solutions.
Get XP Power IHLO2 series DC-DC converter today—designed for high isolation, bipolar outputs, and reliable industrial power management.
Frequently Asked Questions
Where can I buy XP POWER IHL0215D12?
You can click on the BUY or RFQ button to purchase IHL0215D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0215D12?
You can download the IHL0215D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0215D12?
XP POWER
