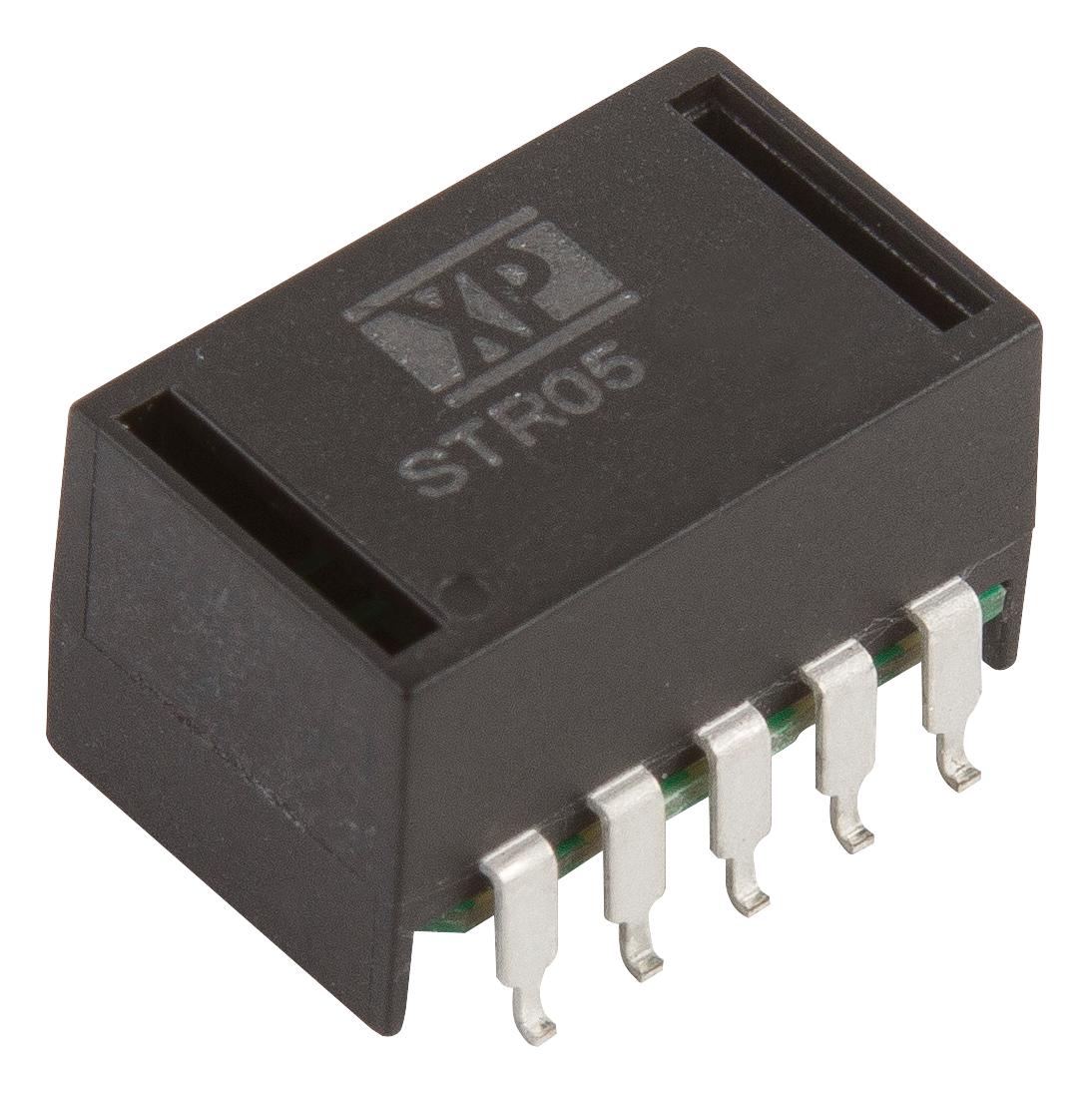

XP POWER STR05S12 Switching Regulator
The XP Power STR05S12 is a compact, regulated switching power regulator capable of providing a 12V output at 0.5A. Designed in a surface-mount package, it features a wide input voltage range from 15V to 32V and offers high efficiency between 94% and 97%. The device includes continuous short-circuit protection with auto-recovery, remote on/off capability, and adjustable output voltage from 4.5V to 13.5V. It exhibits low ripple and noise levels (30mV to 40mV peak-to-peak) and can support a capacitive load of up to 220µF. The module measures 15.3mm x 12.35mm x 9.24mm, weighs 1.7g, and operates reliably from -40°C to 100°C, making it suitable for power management and industrial applications.
XP POWER STR05S12 Switching Regulator Specifications:
- Input Voltage Range: 15V to 32V
- Output Voltage: 12V
- Output Current: 0.5A
- Efficiency: 94% to 97%
- Maximum Capacitive Load: 220µF
- Ripple & Noise: 30mV to 40mV peak-to-peak
- Operating Temperature: -40°C to +100°C
- Dimensions: 15.3mm x 12.35mm x 9.24mm
- Weight: 1.7g
- Material: Non conductive black plastic case
- Isolation: No isolation
- Switching Frequency: 280–380 KHz
- Short Circuit Protection: Continuous with auto recovery
- Features: Remote On/Off, Output Voltage Trim
- Certifications: UL 94V-0 rated
Buy the Buy XP Power Switching Regulator Part Number STR05S12 Online
Purchase the XP Power switching regulator online today and enjoy fast delivery, high quality, and dependable performance. This compact, high-efficiency power module supports 12V output at 0.5A, making it ideal for industrial, automation, and power management applications. Featuring a wide input voltage range from 15V to 32V, low ripple and noise, and a capacitive load support up to 220µF, it includes remote on/off functionality, output voltage trim, and continuous short-circuit protection. Measure only 15.3mm x 12.35mm x 9.24mm, weigh just 1.7g, and operate reliably from -40°C to 100°C, offering exceptional value and performance for your electronic projects.
Order your XP Power Series STR05S12 switching regulator today and ensure reliable and efficient power delivery for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER STR05S12?
You can click on the BUY or RFQ button to purchase STR05S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STR05S12?
You can download the STR05S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STR05S12?
XP POWER
