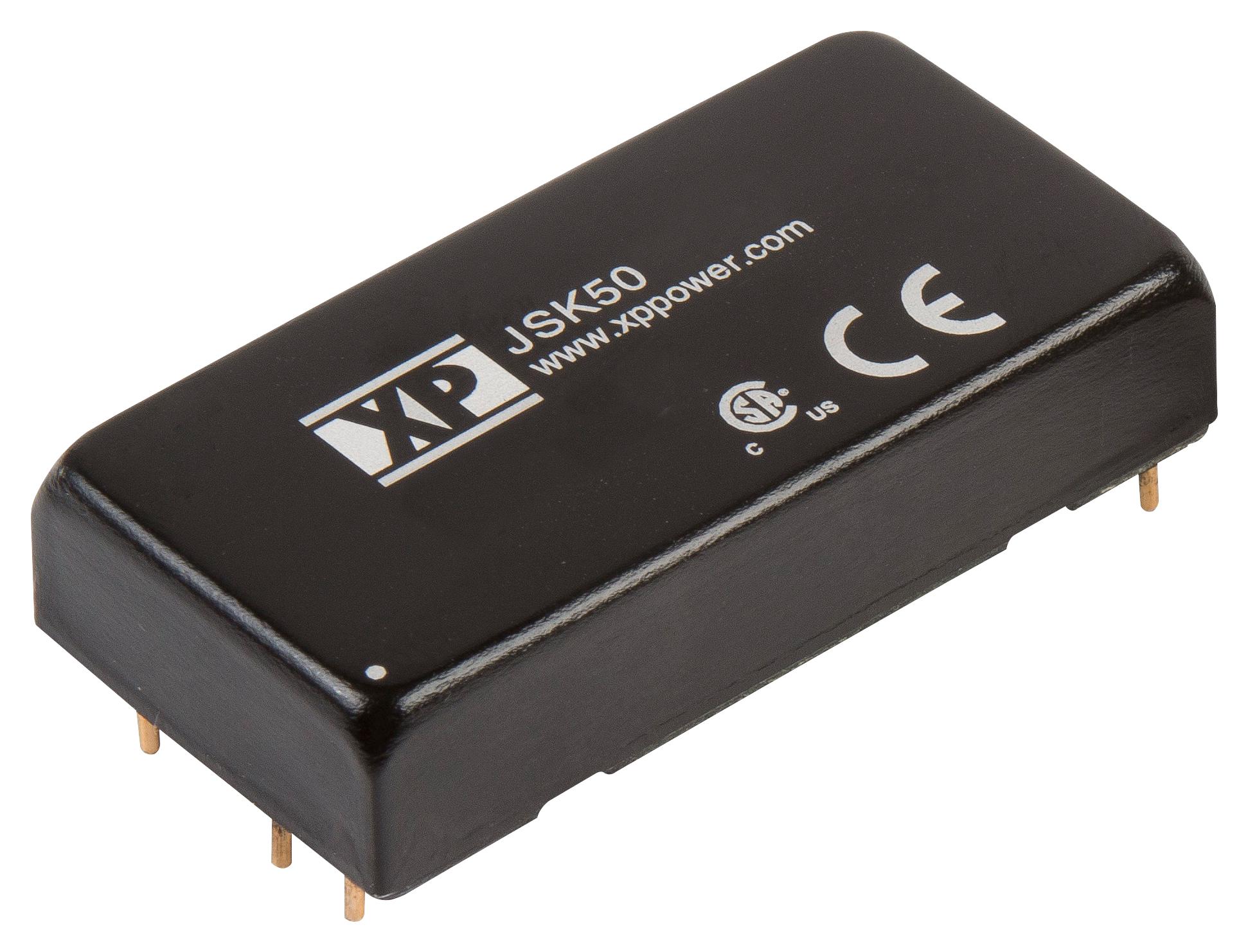

XP POWER JSK5012S15 DC Power Module
The JSK50 series offers a reliable 50-watt regulated power supply suitable for industrial and power management applications. It features a wide 2:1 input voltage range from 8V to 36V, with models supporting output voltages of 3.3V, 5V, 12V, 15V, or 24V. The compact 2 x 1-inch metal case provides high power density, 1500VDC isolation, and remote On/Off control. Operating seamlessly from -40°C to +105°C with derating, the series complies with IEC 60950-1 and UL safety standards, making it ideal for demanding environments requiring durability and safety compliance.
XP POWER JSK5012S15 DC Power Module Specifications:
- Power Output: 50 Watts
- Input Voltage Range: 8V to 36V DC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V
- Output Current: Varies with model (up to maximum specified load)
- Isolation Voltage: 1500 VDC
- Package Dimensions: 2 inches x 1 inch x 0.43 inches (50.8 mm x 25.4 mm x 11.0 mm)
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature: -50°C to +125°C
- Efficiency: Up to 90%
- Voltage Regulation: ±2% (typical)
- Ripple & Noise: Meets industry standards
- Remote On/Off: Yes
- Safety Standards: UL-60950-1, UL-62368-1
- Isolation Resistance: 1 MΩ at 500 VDC
- Cooling: Natural convection
- Mechanical Case: Six-sided metal case
- High Power Density: 625 W/in³
- Thermal Protection: Yes, with derating
- Compliance: IEC 60950-1, UL, CE
Buy the XP Power Series DC-DC Converter: JSK50 50W Regulated Power Supply
Purchase the XP Power JSK50 series DC power module online today and experience reliable 50-watt regulation with wide input support, compact size, and excellent safety standards. Designed for industrial, automation, and power management applications, this module offers high efficiency, high power density, and optional heatsink features, ensuring optimal performance in demanding environments. With a robust metal case, remote On/Off control, and 1500VDC isolation, the JSK50 provides easy integration, durability, and peace of mind for engineers and technicians seeking dependable power solutions.
Get XP Power JSK50 today—built for precision, safety, and long-lasting durability in industrial and power management applications.
Frequently Asked Questions
Where can I buy XP POWER JSK5012S15?
You can click on the BUY or RFQ button to purchase JSK5012S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSK5012S15?
You can download the JSK5012S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSK5012S15?
XP POWER
