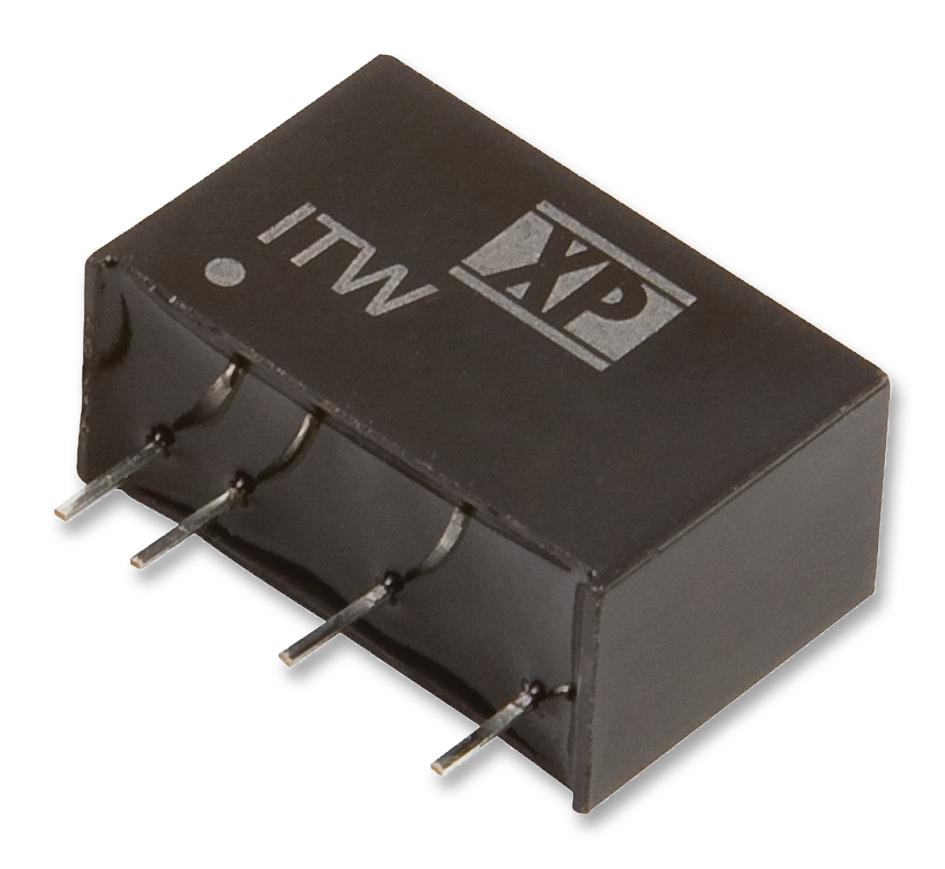

XP POWER ITW1215SA DC-DC Converter
The ITW1215SA is a high-efficiency, fully regulated DC-DC converter capable of delivering 15V at 105mA with a 2:1 input voltage range. It features 1500 VDC isolation, no minimum load requirement, and operates from 9V to 18V input with a temperature range of -40°C to +105°C. Its small size (17.0 x 11.0 x 7.6 mm) makes it ideal for space-constrained applications. This converter ensures reliable performance with low ripple, excellent transient response, and high efficiency up to 81%. Suitable for industrial, medical, and communication equipment requiring isolated power supplies.
XP POWER ITW1215SA DC-DC Converter Specifications:
- Input Voltage Range: 9V to 18V
- Output Voltage: 15V
- Output Current: 105mA
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Dimensions: 17.0 x 11.0 x 7.6 mm
- Efficiency: up to 81%
- Ripple & Noise: 50 mV pk-pk
- Transient Response: within 2 ms
- Humidity: 5% RH non-condensing
- Cooling: Natural convection
- Short Circuit Protection: Continuous with auto recovery
Buy the Buy XP Power DC-DC Converter Part Number ITW1215SA Online
Purchase the XP Power ITW1215SA DC-DC converter online today to ensure a reliable, high-performance power supply for your industrial or communication systems. Its compact design, wide temperature range, and high efficiency provide optimal power conversion. With excellent isolation capabilities and low ripple noise, this module is ideal for applications demanding safety and stability. Order now to benefit from fast shipping and dedicated customer support, ensuring your project stays on schedule with premium quality power conversion components.
Buy XP Power ITW1215SA now and experience unmatched reliability and performance in compact power solutions.
Frequently Asked Questions
Where can I buy XP POWER ITW1215SA?
You can click on the BUY or RFQ button to purchase ITW1215SA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITW1215SA?
You can download the ITW1215SA datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITW1215SA?
XP POWER
