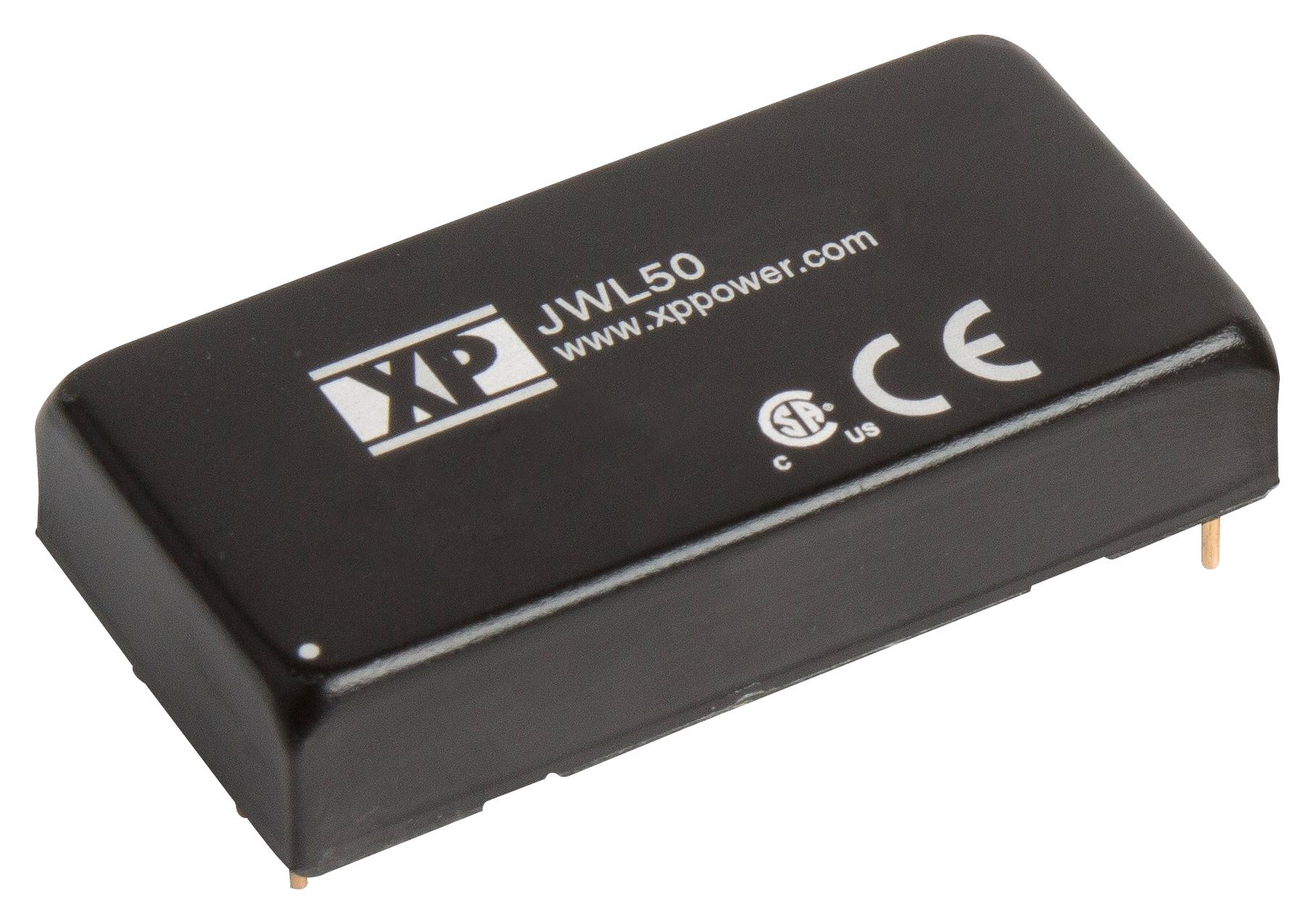

XP POWER JWL5024S24 DC-DC Power Supply
The JWL50 series power supply delivers 50 Watts of reliable power in a compact 2 x 1 inch metal case, featuring an ultra-wide 4:1 input range from 9V to 36V or 18V to 75V DC. It supports single and dual output options, including 3.3V, 5V, 12V, 15V, and 24V, with external voltage adjustment of ±10%. The series complies with IEC 60950-1 and UL safety standards, provides 1500VDC isolation, remote On/Off, and over-temperature protection, making it ideal for industrial and power management applications across a wide temperature range (-40°C to 105°C).
XP POWER JWL5024S24 DC-DC Power Supply Specifications:
- Power Output: 50 Watts
- Input Voltage Range: 9V to 36V DC and 18V to 75V DC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V; adjustable ±10%
- Output Power: Regulated single and dual outputs
- Isolation: 1500VDC input to output
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +105°C with derating
- Cooling: Natural convection
- Dimensions: 2 x 1 x 0.43 inches
- Housing Material: Black anodised aluminium, UL94V-0 rated
- Protection Features: Remote On/Off, over-temperature
- Safety Standards: UL60950-1, IEC 60950-1
- Certifications: UL, CE, UKCA
- Relative Humidity: Up to 95% non-condensing
- Switching Frequency: 285 kHz
- Weight: 0.074 lbs (34 g)
Buy the XP Power JWL5024S24 – Reliable Power Supply for Industrial Applications
Experience reliable power with the XP Power JWL5024S24 series, offering 50 Watts of regulated output in a compact, robust metal case. Designed for industrial and power management applications, it features an ultra-wide input voltage range, multiple output voltages adjustable by ±10%, and safety compliance with UL and IEC standards. The series includes remote On/Off and over-temperature protection, operating efficiently from -40°C to 105°C. Easy to install and maintenance-free, it's the ideal solution for demanding environments needing stable, high-quality power.
Get XP Power JWL5024S24 today—built for precise power regulation and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER JWL5024S24?
You can click on the BUY or RFQ button to purchase JWL5024S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWL5024S24?
You can download the JWL5024S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWL5024S24?
XP POWER
