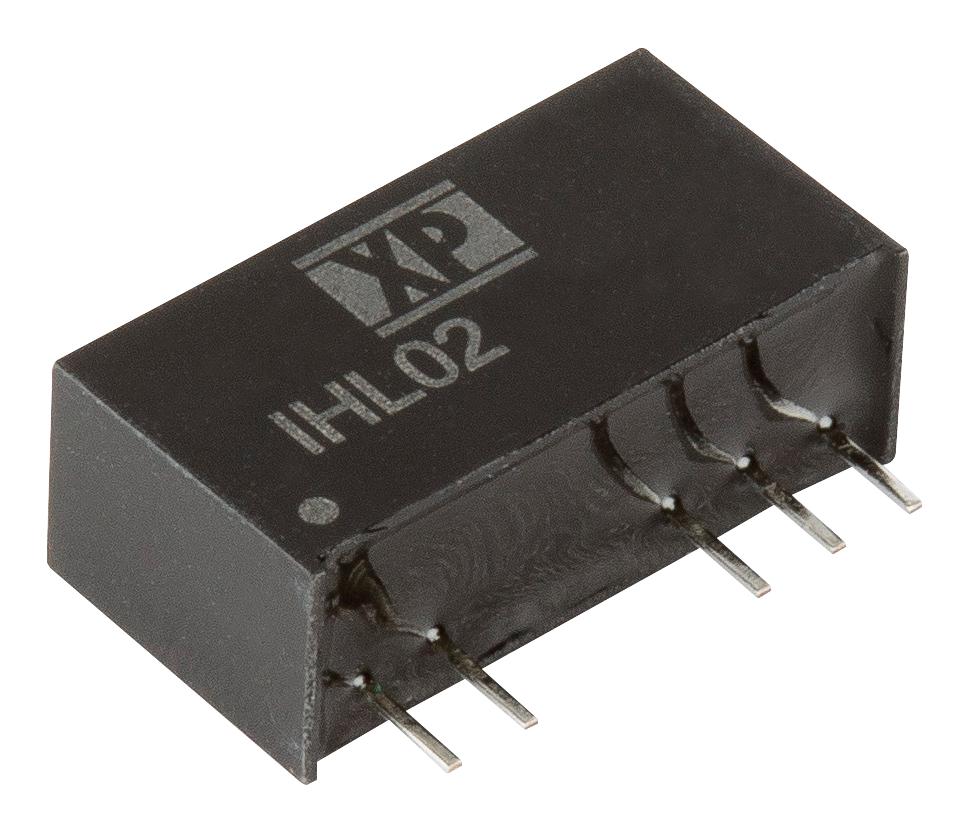

XP POWER IHL0212S3V3 High Isolation Power Converter
The IHL02 series is a 2W DC-DC converter featuring dual outputs and housed in a compact SIP7 package. It provides bipolar outputs suitable for MOSFET and IGBT drives, with high isolation of 5200VDC, a working voltage rated for 250VAC, and full load capability at an ambient temperature of 65°C. Its design includes continuous short-circuit protection and excellent common mode transient immunity of 20 kV/μs. Operable from -40°C to +95°C, this converter is ideal for power management in industrial and power conversion applications, ensuring robust, reliable operation in demanding environments.
XP POWER IHL0212S3V3 High Isolation Power Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200VDC (functional insulation)
- Working Voltage: 250VAC
- Input Voltage Range: 13.5V to 165V (nominal) with surge tolerance at 20V
- Output Voltage: Models available with 3.3V, 5V, 12V, and 15V options
- Output Current: Varies by model, up to 72V nominal outputs
- Isolation Resistance: 10¹⁰Ω
- Isolation Capacitance: 7 pF
- Package: SIP7, dimensions approximately 19.5 x 7.2 x 10.0 mm
- Operating Temperature: -40°C to +95°C, full load at 65°C ambient
- Efficiency: Around 80%
- Switching Frequency: 50-100 kHz
- MTBF: 3.3 million hours
- Certifications: CE, UKCA
- Humidity Range: 25-95% RH non-condensing
- Material: Non-conductive UL94V-0 plastic case, epoxy potting
Buy the XP Power IHL0212S3V3 – Reliable Power Converter for Industrial Applications
Purchase XP Power IHL0212S3V3 online today for an efficient, reliable power conversion solution. Designed for industrial environments, this high isolation 2W DC-DC converter offers bipolar outputs, robust insulation of 5200VDC, and operation across a wide temperature range. Its compact SIP7 form factor is perfect for space-constrained applications. Enjoy fast delivery, secure checkout, and the confidence of quality assured by XP Power, ensuring your power management needs are met with precision and durability for demanding industrial uses.
Get XP Power IHL0212S3V3 today—built for precision, high isolation, and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER IHL0212S3V3?
You can click on the BUY or RFQ button to purchase IHL0212S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0212S3V3?
You can download the IHL0212S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0212S3V3?
XP POWER
