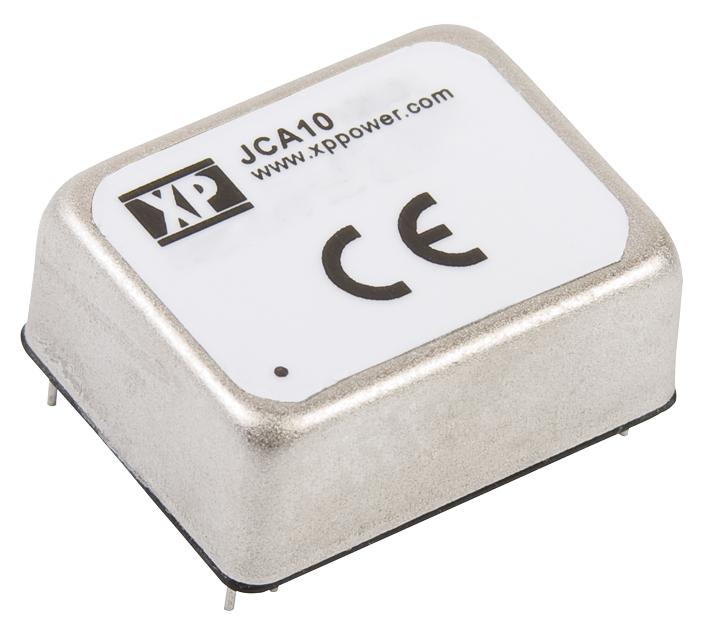

XP POWER JCA1012S12 power supply module
This power supply features a wide 2:1 input voltage range and fully regulated outputs, ensuring stable power delivery. It is housed in a compact 24-pin metal case with a 1.0" x 0.8" footprint, making it suitable for space-constrained applications. The module provides 1.5kVDC isolation for safety and noise reduction, along with undervoltage lockout to protect connected components. It also includes indefinite short circuit protection and an input Pi filter that meets EN55022 Level A standards. The power supply is certified with UL and TUV approvals, making it reliable for various power management applications such as DC power converters and other electronic systems.
XP POWER JCA1012S12 power supply module Specifications:
- Input Voltage Range: 4.5-9.0 VDC, 9-18 VDC, 36-75 VDC, 48 VDC
- Input Current: 80 mA at 5 V, 30 mA at other voltages
- Input Filter: 470uH common mode choke, meets EN55022 Level A
- Ripple & Noise: 50 mV pk-pk (20 MHz bandwidth)
- Output Voltage: 5V, 12V, 24V, 48V
- Initial Set Accuracy: ±1%
- Start Up Delay: 30 ms max
- Start Up Rise Time: 3.5 ms typical
- Line Regulation: 0.2%
- Load Regulation: 1%
- Cross Regulation: 5% on dual outputs with one at 5% load, other varies from 5% to 100%
- Transient Response: 4% max deviation, recovery within 1% in <500 us for 25% load change
- Efficiency: Not specified
- Isolation: 1500 VDC input to output, 500 VDC input/output to case
- Switching Frequency: 300 kHz typical
- Power Density: 31.25 W/in³
- Protection: Short circuit, overcurrent (150%), overvoltage (150%), auto recovery
- Operating Temperature: -40°C to +100°C (de-rating applies above +70°C)
- Storage Temperature: -55°C to +125°C
- Cooling: Convection cooled
- Operating Humidity: Up to 95% RH, non-condensing
- Approvals: UL, CB, TUV, IEC62368-1, EN62368-1, CE Mark LVD
- MTBF: >950,000 hours at 25°C (MIL-HDBK-217F)
Buy the ACME JCA1012S12 – Reliable Power Supply for Industrial Applications
Secure your projects with the advanced power supply module that offers a wide input range, high isolation, and robust short circuit protection. Compact and certified with UL and TUV, it’s ideal for space-constrained industrial applications. Ensure safe, reliable power delivery with excellent noise reduction, adjustable outputs, and a proven track record of durability. Perfect for manufacturers and engineers seeking efficiency and peace of mind in power management solutions. Purchase online today and empower your electronic systems with confidence.
Buy ACME JCA1012S12 now and experience unmatched reliability and performance for your electronic systems.
