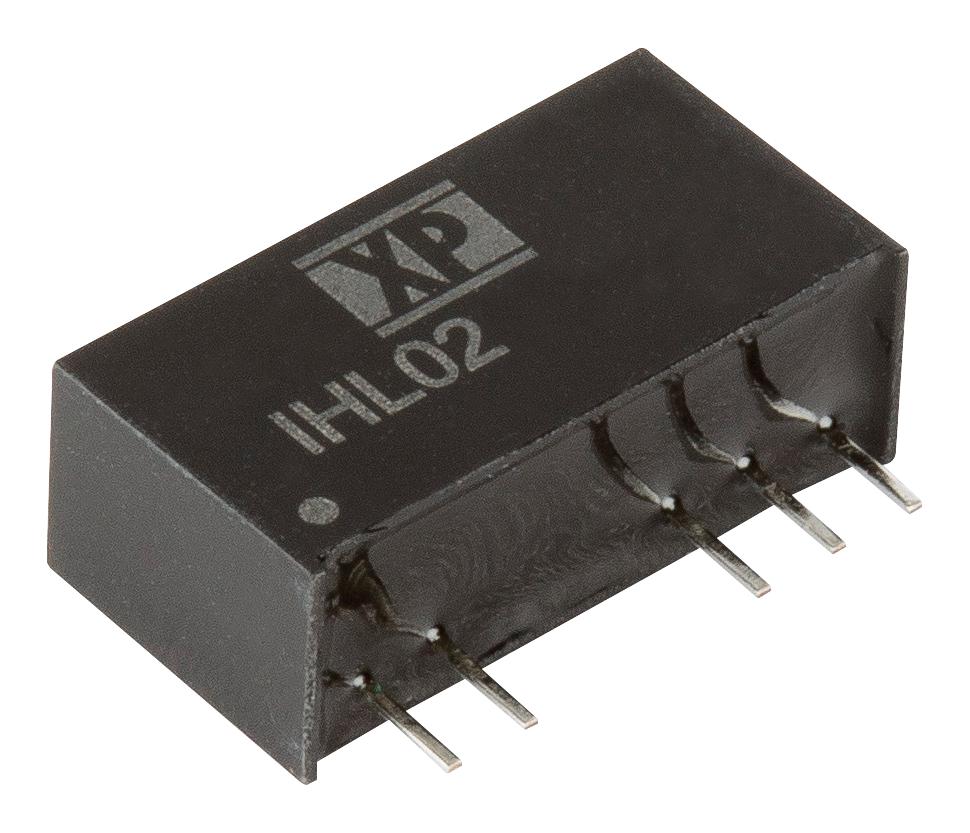

XP POWER IHL0224D09 DC-DC Converter
The IHL02 series is a 2-watt DC-DC converter in a 7-pin SIP package, featuring bipolar outputs suitable for MOSFET and IGBT driver applications. It offers high isolation ratings of 5200VDC and 250VAC working voltage, with options for single or dual outputs. The device is designed for reliable performance with continuous short circuit protection and can operate within a temperature range of -40°C to 95°C. It is ideal for power management and industrial applications, providing full load capability at 65°C ambient temperature.
XP POWER IHL0224D09 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200 VDC functional, 250 VAC working voltage
- Input Voltage Range: 13.5V to 165V
- Output Voltage: 3.3V to 30V depending on model
- Output Current: Up to 72V nominal, current varies with model
- Temperature Range: -40°C to +95°C
- Full load at 65°C ambient temperature
- Package: SIP7
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Short Circuit Protection: Continuous, auto recovery
- Isolation Resistance: 10^8 Ω
- Switching Frequency: 50 to 100 kHz
- Efficiency: Up to 80%
- MTBF: 3.3 million hours
- Operating Temperature: -40°C to +95°C
- Case Material: Non-conductive black plastic (UL94V-0)
- Solder Material: CS191R-H solder coated phosphor bronze
- Potting Material: Epoxy (UL94V-0)
Buy the XP Power Series IHL02 DC-DC Converter: IHL0224D09
Purchase the XP Power IHL0224D09 DC-DC converter online today and benefit from high isolation ratings of 5200VDC, bipolar outputs, and excellent thermal performance. Designed for power management, industrial applications, and motor drive circuits, this 2-watt converter operates efficiently within a broad temperature range of -40°C to 95°C. Its SIP7 compact package ensures easy integration, while features like continuous short circuit protection and high mean time between failure guarantee long-term reliability. Get this reliable power conversion solution with fast online ordering.
Buy XP Power IHL0224D09 now and experience unmatched reliability and performance for industrial power management.
Frequently Asked Questions
Where can I buy XP POWER IHL0224D09?
You can click on the BUY or RFQ button to purchase IHL0224D09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0224D09?
You can download the IHL0224D09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0224D09?
XP POWER
