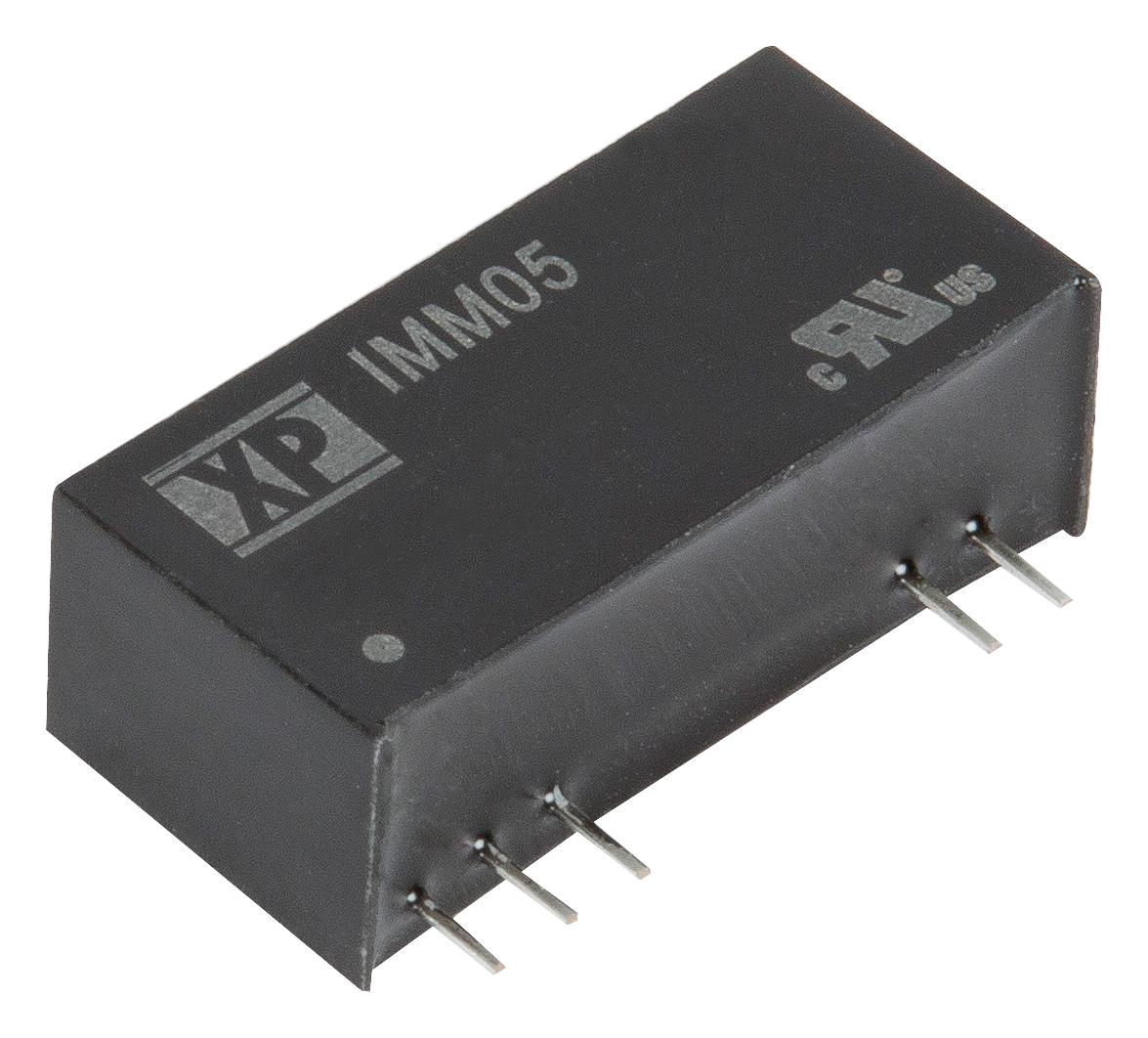

XP POWER IMM0505S15 Medical Power Converter
The IMM05 series of DC-DC converters provides an ultra-compact 5W power solution with isolation features suitable for medical applications. These converters offer regulated single and dual outputs ranging from 3.3V to ±15V. They are certified for worldwide medical standards, with a 2:1 input voltage range and a 1500VAC isolation barrier. The units feature a compact SIP9 package, include a 1 x MOPP at 250VAC compliance, and support remote on/off control. Operating temperatures span from 20°C to +100°C, with full load capability up to +60°C. These converters are ideal for applications requiring isolation and reliable power in medical equipment.
XP POWER IMM0505S15 Medical Power Converter Specifications:
- Power Output: 5 Watts
- Input Voltage Range: 2:1 (varies with model)
- Output Voltage: 3.3V to ±15V (regulated, depending on model)
- Isolation Voltage: 1500 VAC
- Package: SIP9
- Isolation Class: 1 x MOPP at 250VAC
- Operating Temperature Range: -20°C to +100°C
- Full Load Operating Temperature: Up to +60°C
- Remote On/Off Control: Yes
- Weight: approximately 6.2 g
- Certifications: Worldwide Medical Certification, UL94V-0 potting, IEC/EN60601-1 compliance
Buy the XP Power Series IMM05 DC-DC Converter: IMM0505S15
Purchase the XP Power IMM0505S15 medical DC-DC converter online today. This highly reliable 5W isolated power supply offers regulated outputs from 3.3V to ±15V, ensuring safe and consistent power for medical devices. It features a compact SIP9 package, 1500VAC isolation, remote on/off control, and supports operating temperatures from -20°C to +100°C, with full load operation up to +60°C. Ideal for medical equipment requiring high safety standards, this converter provides peace of mind through proven durability and certification.
Get XP Power IMM0505S15 today—built for medical precision, with reliable isolation and regulation for critical medical applications.
Frequently Asked Questions
Where can I buy XP POWER IMM0505S15?
You can click on the BUY or RFQ button to purchase IMM0505S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0505S15?
You can download the IMM0505S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0505S15?
XP POWER
