XP POWER ITZ0924S05 DC-DC Converter
The ITZ Series is a compact, reliable 9-watt DC-DC converter designed for industrial applications. It features a SIP-8 package, with single and dual output options, high efficiency up to 88%, and a wide input range of 4:1 from 9 V to 36 V for 24 V.nominal and 18 V to 75 V for 48 V.nominal. It operates in temperatures from -40°C to +85°C, offers 1500 VDC isolation, and requires no minimum load. Full remote on/off control, continuous short circuit protection, and high power density make it an ideal choice for demanding industrial power conversion needs.
XP POWER ITZ0924S05 DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC (24 V nominal) and 18-75 VDC (48 V nominal)
- Output Power: 9 Watts
- Output Voltage: 3.3 V, 5 V, 12 V, 15 V, 24 V, 28 V, 36 V (depending on model)
- Maximum Efficiency: 88%
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +85°C
- Transient Response: 36/28 % deviation, recovery within 2% in less than 2ms
- Ripple & Noise: 75 mV pk-pk
- Remote On/Off Control: Yes, with open circuit/on, 2.4mA current off
- External Capacitive Load: specified per model
- Switching Frequency: 400/500 kHz
- Weight: approx 0.013 lbs (6.9 g)
- Dimensions: 0.86 x 0.42 x 0.44 inches (21.9 x 10.7 x 11.2 mm)
- Certifications: EN61000-4 immunity standards, UL/CSA safety
- MTBF: Meets MIL-HDBK-217F standards

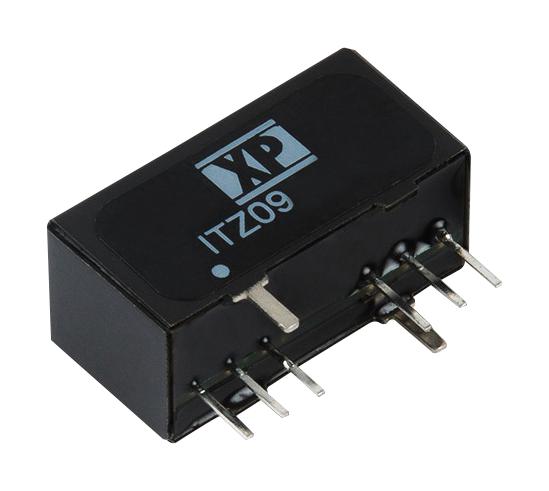

Buy the XP Power ITZ – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power ITZ series 9 Watt DC-DC converter online now and enhance your industrial power management systems. This ultra-compact, fully regulated power supply offers a wide input range of 4:1, high efficiency up to 88%, and excellent thermal performance from -40°C to +85°C. With 1500 VDC isolation, remote on/off, and robust short circuit protection, it provides reliable operation in demanding industrial environments. Get yours today online for quick delivery and seamless integration into your projects.
Order your XP Power ITZ series 9 Watt DC-DC converter today and ensure your industrial projects have dependable, high-quality power solutions.
Frequently Asked Questions
Where can I buy XP POWER ITZ0924S05?
You can click on the BUY or RFQ button to purchase ITZ0924S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITZ0924S05?
You can download the ITZ0924S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITZ0924S05?
XP POWER
