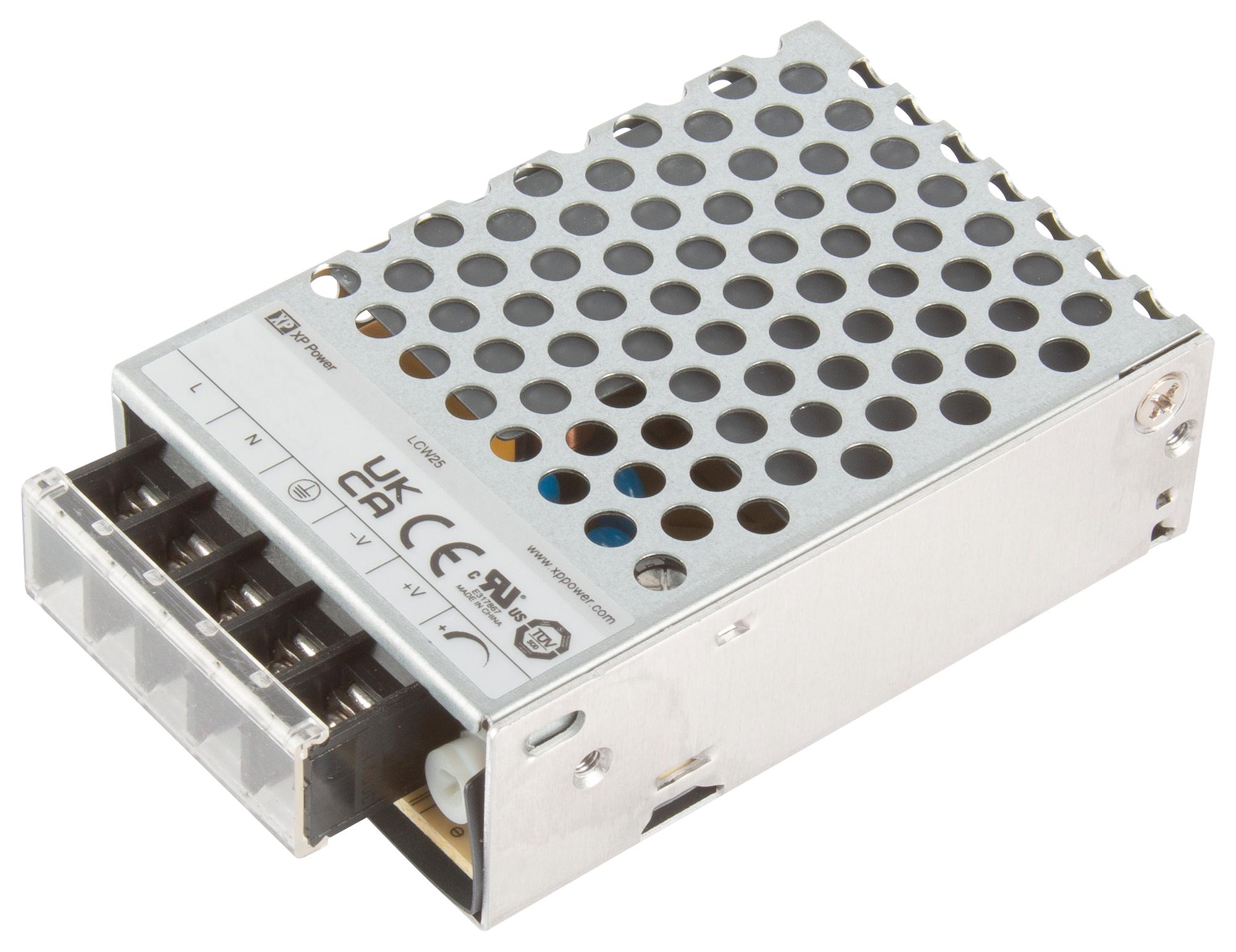

XP POWER LCW25US12 Power Supply Module
The LCW25 series regulated output convection-cooled AC to DC power supplies offer a reliable and cost-effective solution for industrial electronics and automation applications. These 25W power supplies are convection cooled, feature an integrated connector cover, and are designed with safety and emissions compliance in mind. They support a wide AC input range from 85V to 305V, have adjustable output voltage with a ±10% trim, and operate at a switching frequency of 65kHz with an efficiency of 85%. Additional features include low stand-by power consumption, output short circuit, overcurrent, overload, and overvoltage protections. The units are certified by UL (UL62368-1), EN (EN62368-1), CE, and UKCA, making them suitable for various industrial and automation tasks such as auxiliary power, security systems, lighting control, smart home or office automation, and vending machines. The rugged aluminum chassis with vented galvanized steel cover supports operation from -30°C to +70°C and may include conformal coating options. Each unit comes with a 3-year warranty. Dimensions are 3.70 inches x 2.17 inches x 0.98 inches (94mm x 55mm x 25mm), including the connector.
XP POWER LCW25US12 Power Supply Module Specifications:
- Input Voltage Range: 85-305VAC
- Input Frequency: 47-63Hz
- Efficiency: up to 88%
- Output Power: 25W
- Output Voltage Adjustment: +10%
- Output Voltage Range: 3.3V to 48VDC
- Output Current: 6A to 1.1A depending on model
- Dimensions: 3.70 inches x 2.17 inches x 0.98 inches (94mm x 55mm x 25mm)
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overload, overvoltage
- Certifications: UL (UL62368-1), EN (EN62368-1), CE, UKCA
- Isolation: 4000VAC input to output
- Cooling: Natural convection
- Switching Frequency: 65kHz
- Weight: 0.253 kg
- Conformal Coating Option: Yes with suffix -E
Buy the XP Power LCW25U – Reliable Power Supplies for Industrial Applications
Purchase the XP Power LCW25U power supply online now to ensure reliable operation for your industrial electronics. These convection-cooled units feature wide input voltage support 85-305VAC, high efficiency up to 88%, and comprehensive protections including short circuit, overload, and overvoltage. Designed with safety certifications like UL, EN, CE, and UKCA, they are ideal for automation systems, security installations, lighting controls, and vending applications. Operating reliably from -30°C to +70°C, each unit comes with a 3-year warranty and optional conformal coating for enhanced durability. Order now for fast delivery and peace of mind in your critical systems.
Get XP Power LCW25U today—built for precision and long-lasting durability in industrial automation and control systems.
Frequently Asked Questions
Where can I buy XP POWER LCW25US12?
You can click on the BUY or RFQ button to purchase LCW25US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW25US12?
You can download the LCW25US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW25US12?
XP POWER
