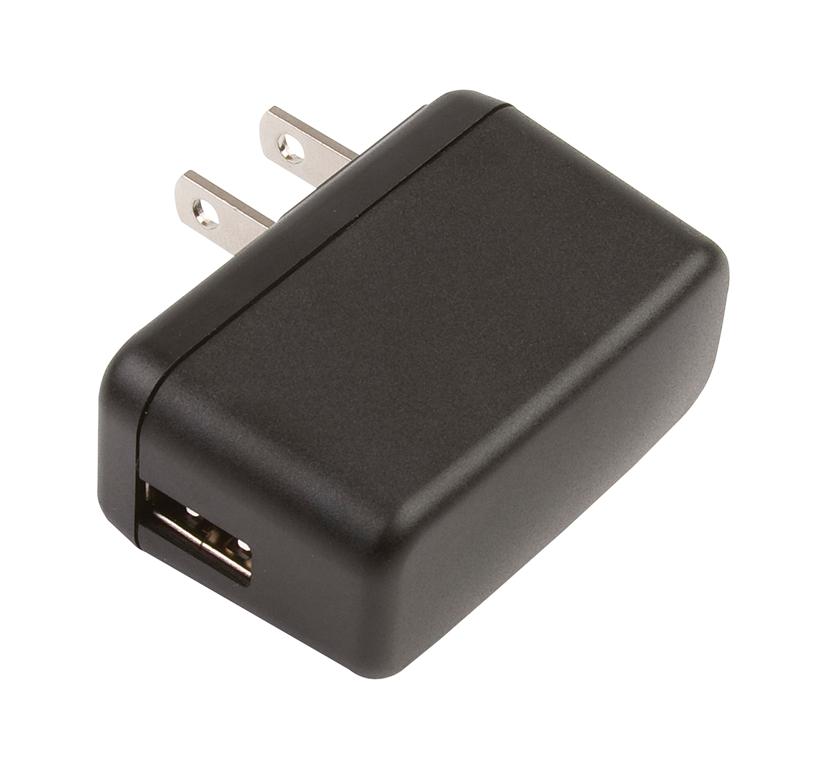

XP POWER VEL05US050USBB Wall Plug Adapter
The VEL05 series wall plug adapters comply with the latest Energy Efficiency Level VI standards, featuring high active mode efficiency and very low no-load power consumption. Available with multiple USB ports and standard barrel jack connectors, these adapters are suitable for a wide range of cost-sensitive applications while delivering industry-leading performance. They include fixed mains connectors, universal input voltage, and are constructed with Class II insulation. The product features European CoC Tier 2 certification and is available in both barrel jack and USB versions. Applications include power management systems. Please note that market demand has extended lead times, causing potential delivery delays. These products are exempt from discounts.
XP POWER VEL05US050USBB Wall Plug Adapter Specifications:
- Output Voltage: 5.0 V to 12.0 V
- Output Power: 5 Watt
- Efficiency Level: VI
- Input Voltage: Universal, 100-240 VAC
- Input Frequency: 50/60 Hz
- No Load Power Consumption: < 0.04 W
- Isolation: 3000 VAC input to output
- Switching Frequency: 24-70 kHz (variable)
- Dimensions: 55.1 x 24.1 x 35.49 mm (US), 55.1 x 49.5 x 42.9 mm (UK), 55.1 x 40.44 x 44.49 mm (AU)
- Housing: Class II construction, fixed mains connectors
- Certifications: CE, UKCA, CoC Tier 2, UL, TUV
- Efficiency: up to 79%
- Operating Temperature: 0°C to +60°C
- Cooling: Natural convection
- Protection: Continuous short circuit, auto-recovery
- EMC Compliance: EN55032, EN61000-3-2, EN61000-3-3
- Standards: IEC 60950-1, IEC 62368-1, UL/cUL 60950-1
Buy the Buy XP Power Wall Plug Adapters Part Number VEL05US050USBB Online
Purchase the XP Power wall plug adapter VEL05US050USBB online today and enjoy industry-leading efficiency, reliable performance, and versatile connectivity options. Designed to meet the latest energy standards, this adapter offers universal input compatibility, low no-load power consumption, and robust safety certifications. Its compact size and high efficiency make it ideal for cost-sensitive applications, including power management systems and portable devices. Order now to benefit from fast delivery and secure online payment options, ensuring your operational efficiency remains uninterrupted.
Buy XP Power VEL05US050USBB now and experience unmatched reliability and power-efficient design for your demanding applications.
