XP POWER QSC15024S12 DC-DC Converter Module
The QSC150 series is a high-power DC-DC converter offering 150 Watts of power with a wide 4:1 input voltage range, suitable for industrial, automation, and control applications. This industry-standard single output module features 2250 VDC isolation, remote ON/OFF control, and operation from -40°C to +105°C. Compact with dimensions of 2.28 x 1.45 x 0.5 inches, it provides high efficiency up to 92%, various output voltages, and includes optional output trim for precise voltage adjustment, making it ideal for rugged, demanding environments.
XP POWER QSC15024S12 DC-DC Converter Module Specifications:
- Power: 150 Watts
- Input Range: 9V to 36V or 18V to 75V depending on model
- Input Surge: 50/100 VDC for 100 ms
- Efficiency: Up to 92%
- Isolation: 2250 VDC input to output
- Output Voltage: 5V, 12V, 24V, 28V, 48V options
- Output Power: 5V 30A, 12V 125A, 24V 63A, 28V 54A, 48V 32A
- Dimensions: 2.28 x 1.45 x 0.5 inches (57.9 x 36.8 x 12.7 mm)
- Operating Temperature Range: -40°C to +105°C
- Remote On/Off control
- Output Trim: Adjustable +10%/-10%
- Isolation Voltage: 2250 VDC
- Standards: cUL60950-1, EN61000-4 series immunities
- Peak Switching Frequency: Up to 8 MHz
- Thermal Resistance: Approx. 10°C/W natural convection
- Weight: 0.15 lbs (68 g)

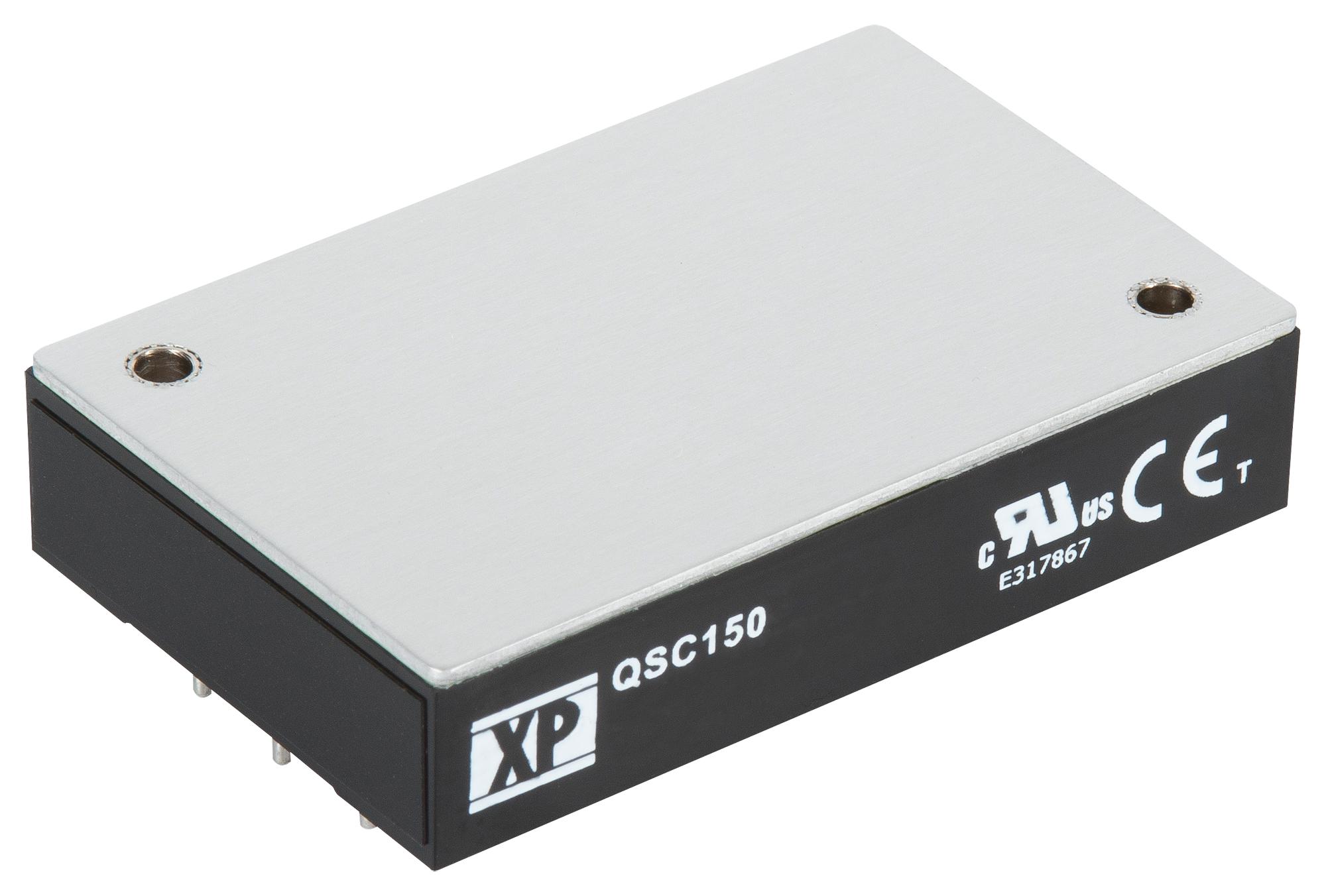

Buy the Buy XP Power QSC150 Series DC-DC Converter Part Number QSC15024S12 Online
Purchase the XP Power QSC150 series DC-DC converter online today and enjoy reliable, high-performance power conversion for industrial, automation, and control systems. Designed with industry standards, this power module features a wide input voltage range, high efficiency up to 92%, and a 2250 VDC isolation voltage for safety and durability. Compact at 2.28 x 1.45 x 0.5 inches, it offers remote ON/OFF control, output trim adjustments, and operates across a temperature range of -40°C to +105°C. Perfect for rugged and demanding environments requiring precise, stable power solutions.
Get XP Power QSC15024S12 today—built for high efficiency, rugged environments, and precise voltage regulation in industrial applications.
Frequently Asked Questions
Where can I buy XP POWER QSC15024S12?
You can click on the BUY or RFQ button to purchase QSC15024S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QSC15024S12?
You can download the QSC15024S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QSC15024S12?
XP POWER
