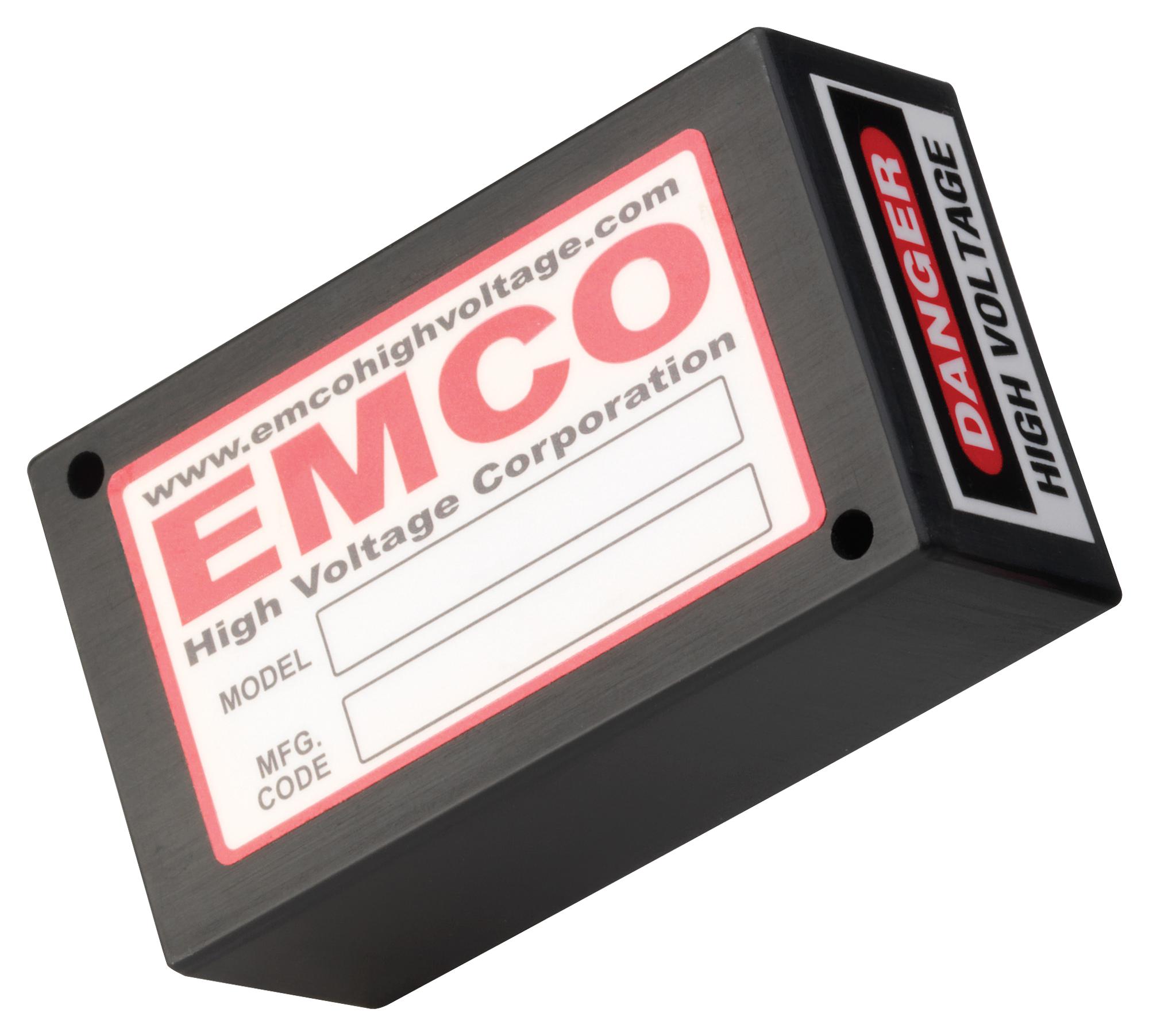

XP POWER E60 High Voltage DC Converter
The E Series high-voltage DC to DC converters provide reliable, compact solutions for generating output voltages up to 6kV with low ripple, noise, and EMI/RFI. Featuring a PCB mount design and proven durability, these modules are suitable for applications like electrophoresis, electrostatic chuck, capacitor charging, and mass spectrometry. They offer external options such as shielding and dual outputs with center-tap configurations. With a wide input voltage range, low leakage current, and high MTBF over 2 million hours, they ensure safe, efficient operation in demanding industrial environments.
XP POWER E60 High Voltage DC Converter Specifications:
- Input Voltage: 0 to 15V (E02 to E20), 0 to 15V (E30 to E80)
- Output Voltage Range: Up to 6kV (E60), 8kV (E80)
- Output Power: 3W at specific voltages, with options up to 8kV at 2W
- Isolation Voltage: Less than 3.5kV bias for E02 to E60, less than 5kV for E70 to E80
- Response Time: Less than 10ms
- Operating Temperature: -10°C to +60°C (E02 to E60), -10°C to +50°C (E70 to E80)
- Storage Temperature: -25°C to +90°C
- MTBF: Over 2 million hours
- Flammability: UL 94V-0 certified encapsulant
- Dimensions: 2.50 inches length x 1.50 inches width x 0.85 inches height
- Weight: 3 oz
- Case Material: Diallyl Phthalate (DAP)
- Compliance: RoHS
Buy the XP Power E60 – Reliable High Voltage DC Converter for Industrial Applications
Purchase the XP Power E60 high voltage DC converter online today to ensure your industrial and scientific applications operate with precision and reliability. Designed with proven durability and safety in mind, this module offers a maximum output voltage of 6kV, low ripple, EMI/RFI suppression, and dual output options with center-tap configurations. Its compact PCB mount design fits easily into your systems, making it ideal for electrophoresis, capacitor charging, and mass spectrometry. Trust XP Power for quality and performance you can depend on, all available for quick online ordering.
Order your XP Power E60 high voltage module today and enhance your industrial projects with dependable, safe, and efficient high-voltage solutions.
Frequently Asked Questions
Where can I buy XP POWER E60?
You can click on the BUY or RFQ button to purchase E60 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part E60?
You can download the E60 datasheet or visit the XP POWER website for support.
Who is the manufacturer of E60?
XP POWER
