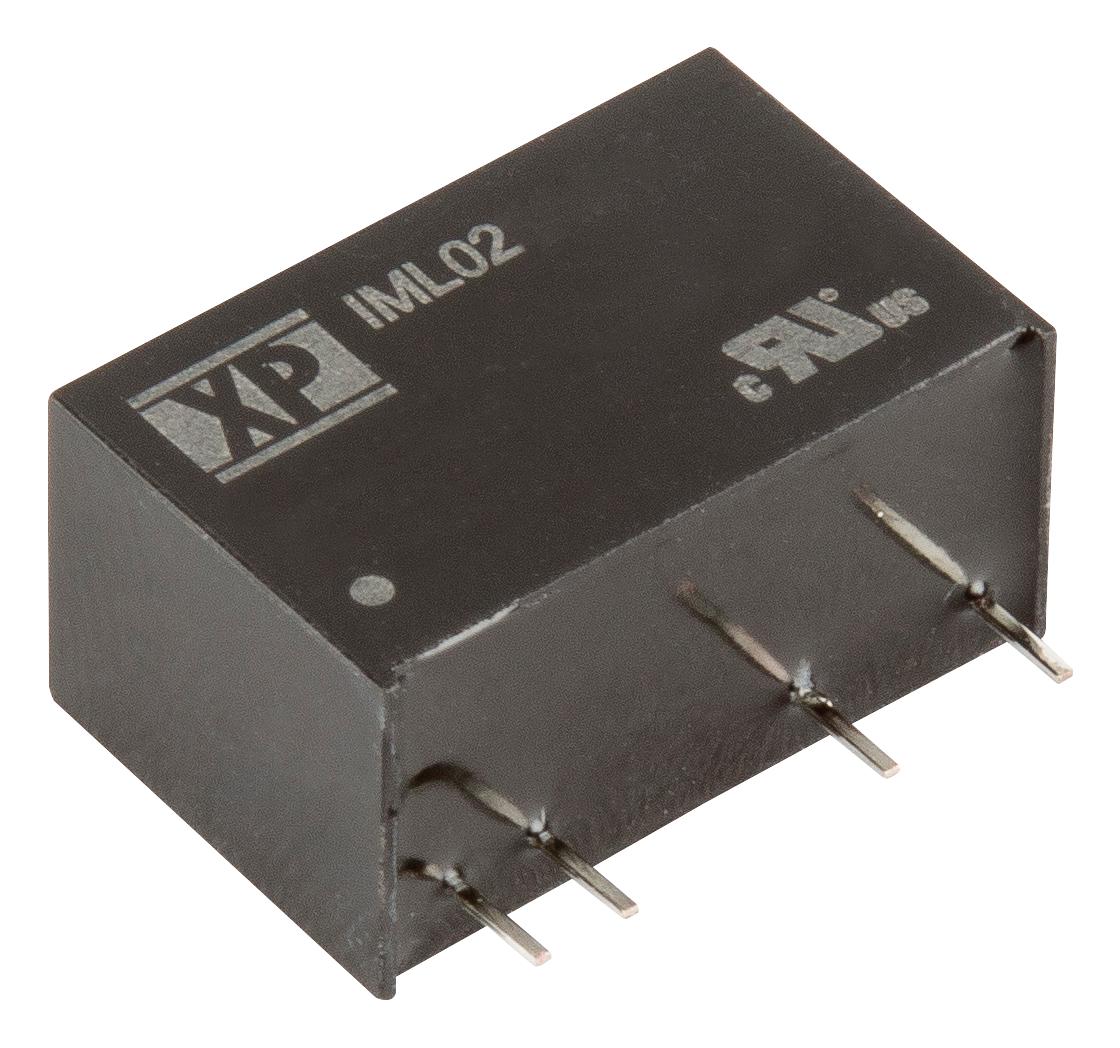

XP POWER IML0215D15 DC-DC Converter
The IML02 series is a 2W DC-DC converter available in single and dual outputs, designed in a compact 7-pin SIP package. It offers medical safety approvals, continuous short circuit protection, and meets conducted and radiated EMC standards per EN55011 class B. Operating from -40°C to 85°C at full load, it provides 4000VAC isolation (1 x MOPP) at 300VAC. With a low patient leakage current of 2µA, it’s ideal for medical, industrial, and power management applications, ensuring high reliability and efficiency.
XP POWER IML0215D15 DC-DC Converter Specifications:
- Power Rating: 2 Watts
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Output Voltage Options: 5V, 12V, 15V
- Output Current Max.: 1W to 2W depending on model
- Isolation Voltage: 4000 VAC, 1 x MOPP
- Operating Temperature: -40°C to +85°C at full load
- Size: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- Leakage Current: 2 µA
- Efficiency: up to 85%
- Certifications: UL, EN60601-1, CSA, TUV, CB, IEC60601-1
- Protection: Continuous short circuit
- Humidity Range: 25% to 95% RH, non-condensing
- Isolation Resistance: 10^2 ohms
- Isolation Capacitance: 10-20 pF
- Switching Frequency: 50-100 kHz
- Weight: 4.2 grams
- Compliance: Meets EMI and safety standards for medical equipment
Buy the XP Power Series IMLO2 DC-DC Converter: IML0215D15
Purchase the XP Power Series IMLO2 DC-DC Converter online today and benefit from its compact design, medical safety approvals, 4000VAC isolation, and wide temperature range. Perfect for medical, industrial, and power management applications, this 2W converter offers high efficiency, low patient leakage current, and reliable performance. With continuous short circuit protection and certifications including UL and EN60601-1, it ensures safety and dependability in demanding environments. Get yours now for seamless integration and peace of mind in your projects.
Order your XP Power Series IMLO2 DC-DC Converter today and ensure reliable power with medical safety approval, low leakage current, and high efficiency for your critical projects.
Frequently Asked Questions
Where can I buy XP POWER IML0215D15?
You can click on the BUY or RFQ button to purchase IML0215D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IML0215D15?
You can download the IML0215D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IML0215D15?
XP POWER
