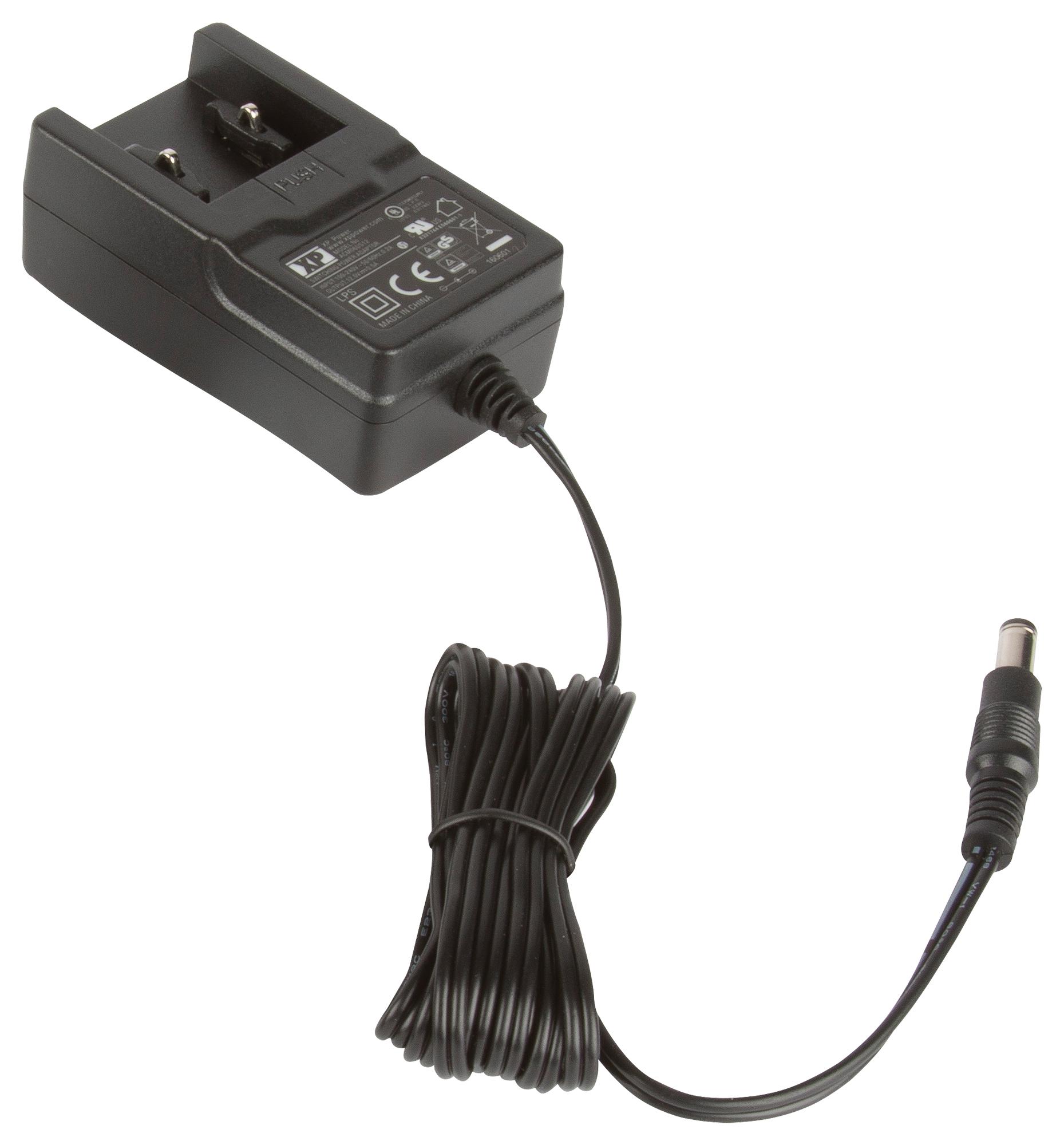

XP POWER ACM06US05 Power Adapter
The ACM06 series wall plug adapters meet the latest Energy Efficiency Level VI standards, offering high efficiency in active mode and extremely low no-load power consumption. Available in standard jack connector and USB versions, these adaptors are suitable for a wide range of cost-sensitive industrial and medical applications, delivering reliable performance. Features include European CoC Tier 2 approval, medical and ITE certifications, interchangeable mains connectors, and output voltages ranging from 5V to 12V. They are designed with Class II construction and come with a three-year warranty, making them ideal for power management, industrial, and medical applications.
XP POWER ACM06US05 Power Adapter Specifications:
- Power: 6 Watt
- Energy Efficiency Level: VI
- Input Voltage: AC input plugs (separate), 115/230 VAC typical
- Output Voltage: 5 V to 12 V, with models like ACMO6US12 and ACMO6US05
- Output Regulation: 5% (for voltage stability)
- Efficiency: Up to 82%
- Isolation: 4000 VAC input to output
- Leakage Current: 20-100 uA at 264 VAC
- Switching Frequency: 24-70 kHz
- Operating Temperature: 0°C to 40°C derating to 60% load at 60°C
- Storage Temperature: -20°C to 85°C
- Humidity: 5-90% RH, non-condensing
- Protection: Class II construction, IEC60601-1 medical approval, 2x MOPP
- Dimensions: Approximate body size 2.89 x 1.21 x 1.67 inches (73.5 x 30.7 x 42.5 mm)
- Warranty: 3 years
Buy the XP Power Series ACMO6 Power Supplies: ACMO6US05
Purchase the XP Power ACMO6US05 power adapter online today for a reliable, efficient, and certified power solution. Designed to meet strict industry standards and operate seamlessly in medical, industrial, and power management environments, this adaptor features a compact form factor, interchangeable connectors, and robust construction. With a three-year warranty and compliance with energy efficiency level VI, it ensures long-term durability and safety. Improve your power system today by buying this versatile and high-performance power supply online.
Get XP Power ACMO6US05 today—built for high efficiency and reliability in industrial and medical power applications.
Frequently Asked Questions
Where can I buy XP POWER ACM06US05?
You can click on the BUY or RFQ button to purchase ACM06US05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM06US05?
You can download the ACM06US05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM06US05?
XP POWER
