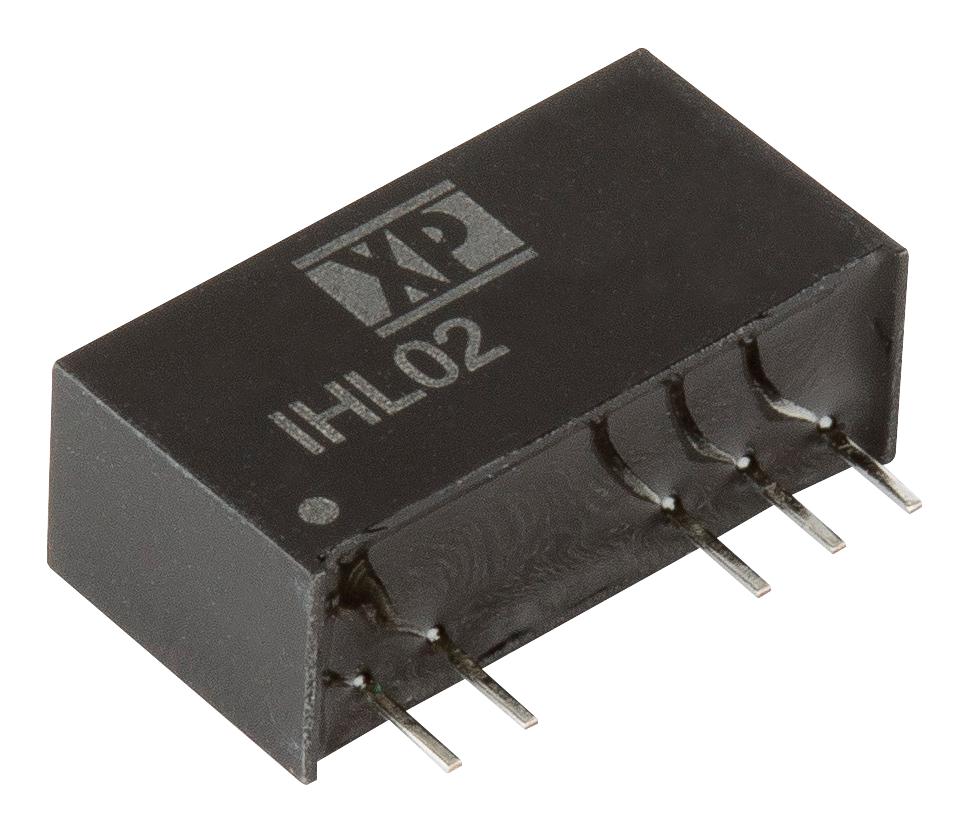

XP POWER IHL0212S05 DC-DC Converter
The IHL02 series is a 2W, dual-output DC-DC converter housed in a 7-pin SIP package. It features bipolar outputs suitable for MOSFET and IGBT drive applications, with high electrical isolation of 5200VDC and a working voltage of 250VAC. The converter supports both single and dual output configurations, offers continuous short circuit protection, and operates within an ambient temperature range of -40°C to 95°C. It is designed for power management and industrial applications, providing reliable performance at full load in environments up to 65°C ambient temperature.
XP POWER IHL0212S05 DC-DC Converter Specifications:
- Power Output: 2 Watts
- Isolation Voltage: 5200VDC (functional insulation)
- Working Voltage: 250VAC, 400VDC
- Output Voltage: 3.3V to 30V (model dependent)
- Output Current: up to 72V model with typical currents specified
- Input Voltage Range: 13.5V to 165V
- Input Ripple Current: 20 mA pk-pk
- Switching Frequency: 50-100 kHz
- Efficiency: Approximately 80%
- Temperature Range: -40°C to +95°C operational, -40°C to +125°C storage
- Case Material: Non-conductive UL94V-0 plastic
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Operating Humidity: 25–95% RH non-condensing
- MTBF: 3.3 million hours
- Certifications: CE, UKCA compliance
- Physical Mounting: SIP7 package, solder-coated pins
Buy the XP Power IHL02 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power IHL02 series DC-DC converter online today and benefit from high isolation, bipolar outputs, and reliable operation for industrial and power management applications. This compact solution provides up to 2W power, excellent efficiency, and protection features including short circuit protection. Designed to operate in demanding environments up to 95°C, it ensures uninterrupted performance in power supplies, motor drives, and automation systems. Get yours now for dependable power conversion and peace of mind in your critical projects.
Order your XP Power IHL02 series DC-DC converter today and ensure power stability and isolation in your industrial projects with confidence.
Frequently Asked Questions
Where can I buy XP POWER IHL0212S05?
You can click on the BUY or RFQ button to purchase IHL0212S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0212S05?
You can download the IHL0212S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0212S05?
XP POWER
