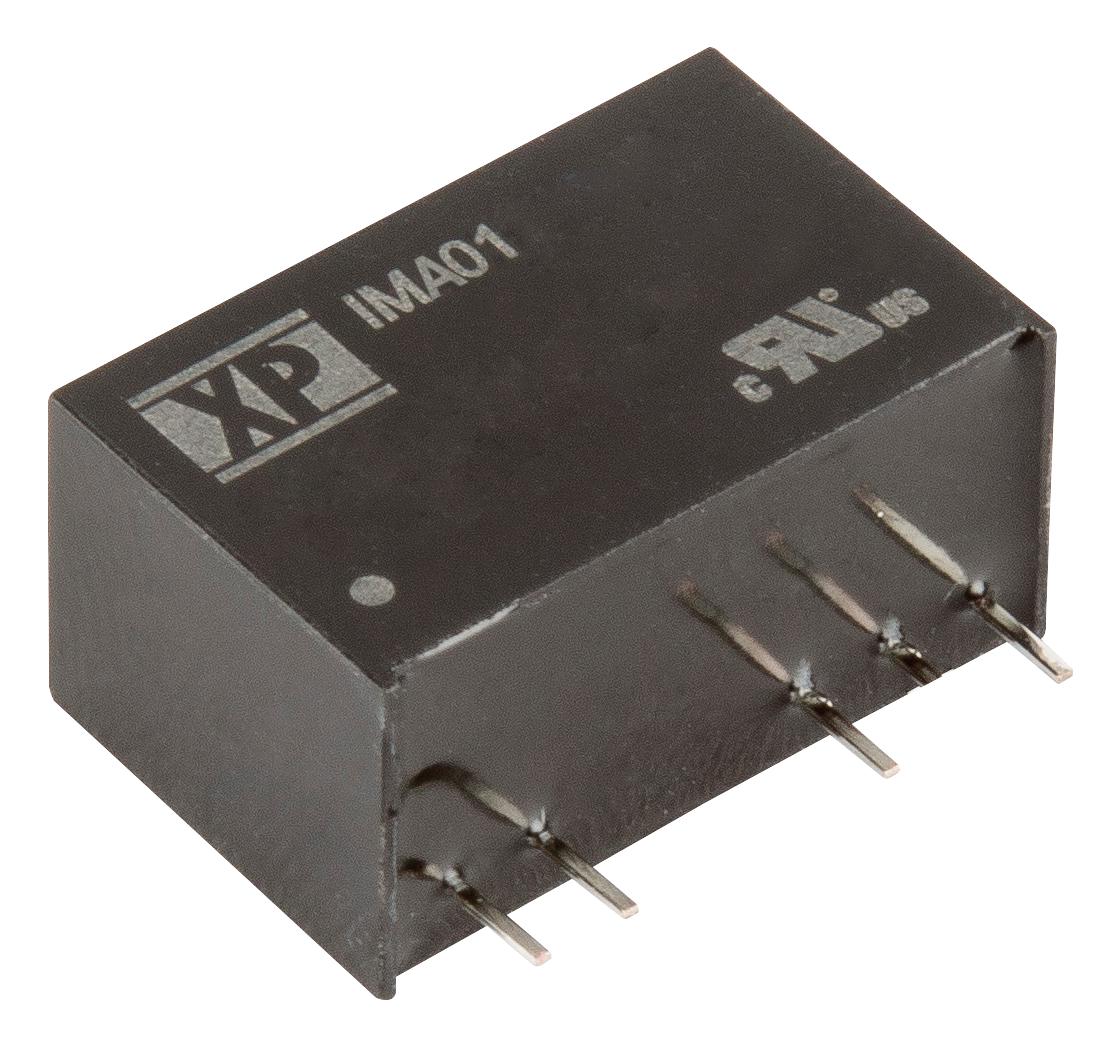

XP POWER IMA0112D09 Medical Power Converter
The IMA01 series is a 1W, single and dual output DC to DC converter housed in a 7-pin SIP package. It features worldwide medical safety approvals, including UL, ANSI/AAMI ES60601-1, CSA C22.2 No. 60601-1, TUV, EN60601-1, CB, and IEC60601-1. The converter offers continuous short circuit protection, a wide operating temperature range from -40°C to 75°C at full load, and provides 4000VAC isolation with 1 x MOPP at 300VAC. It has a low patient leakage current of 2µA and is suitable for medical, industrial, and power management applications.
XP POWER IMA0112D09 Medical Power Converter Specifications:
- Power Rating: 1 Watt
- Package: SIP7
- Input Voltage Range: 10.8-13.2 V, 13.5-16.5 V, 21.6-26.4 V
- Output Voltage: 5V, 12V, 15V, 24V (see models)
- Isolation Voltage: 4000 VAC, 1 x MOPP at 300 VAC
- Operating Temperature: -40°C to +75°C at full load
- Leakage Current: 2 µA
- Humidity: 25% to 95% RH, non-condensing
- MTBF: 2.5 million hours
- Certification: UL, EN60601-1, CSA C22.2, CB, CE, UKCA
Buy the Toya IMA01 – Reliable Medical Power Supply for Industrial Applications
Purchase the Toya IMA01 series DC-DC converter online today. This high-quality, medical-grade power supply offers isolation, wide temperature operation, and low patient leakage current, making it ideal for medical, industrial, and power management applications. Its robust design ensures safety, reliability, and compliance with international standards. With easy online ordering, you can secure this efficient, compact power solution quickly. Enhance your equipment's performance by choosing the Toya IMA01 series, the trusted choice for demanding industrial and healthcare environments.
Buy Toya IMA01 series DC-DC converter now and experience unmatched reliability and performance in medical and industrial power solutions.
Frequently Asked Questions
Where can I buy XP POWER IMA0112D09?
You can click on the BUY or RFQ button to purchase IMA0112D09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMA0112D09?
You can download the IMA0112D09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMA0112D09?
XP POWER
