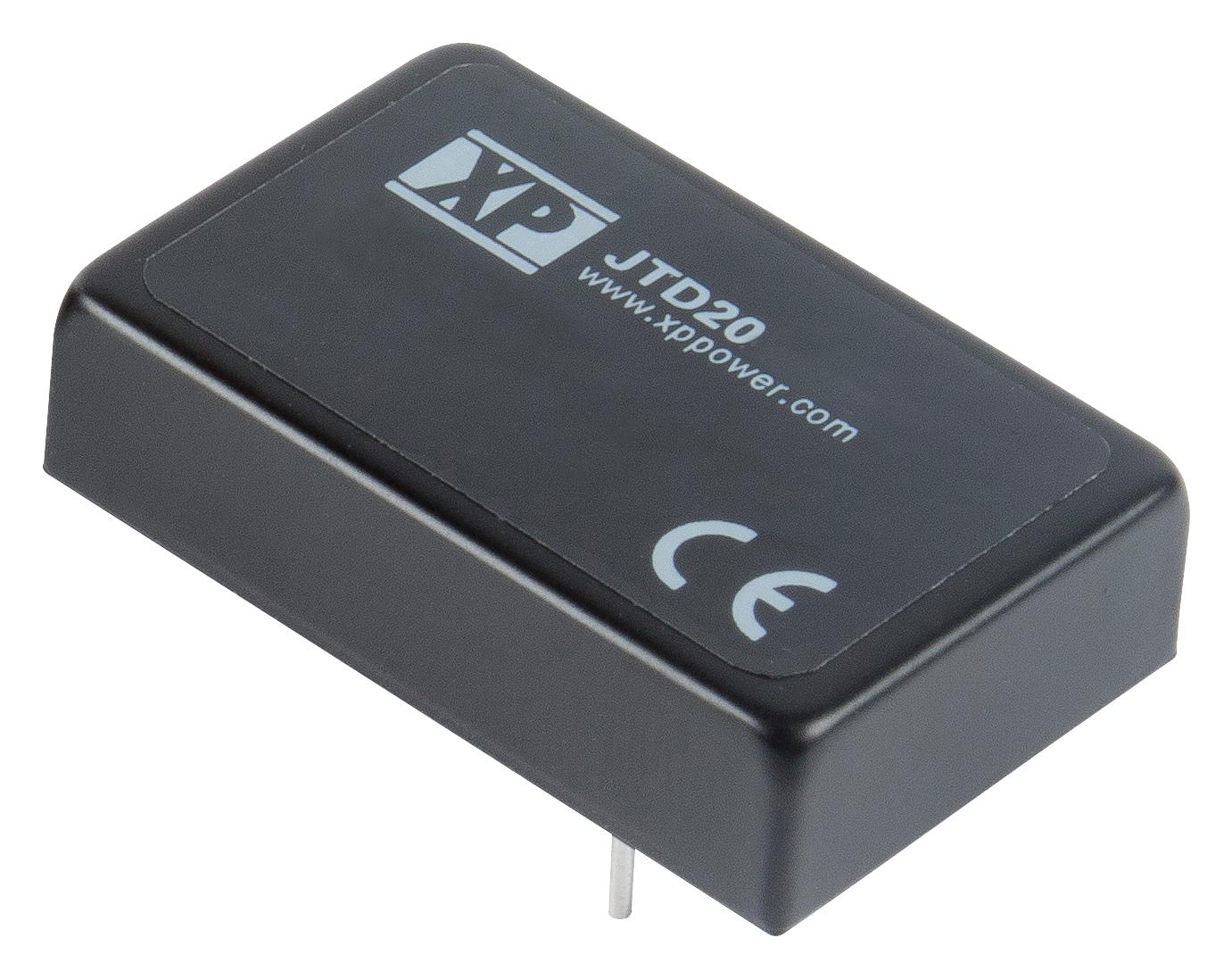

XP POWER JTD2048S05 DC-DC Converter
The JTD20 Series DC-DC Converter from XP Power offers a compact 20-watt power solution with wide 4:1 input range, high efficiency up to 91%, and 3000 VDC isolation. Designed for industrial applications, it features a metal case, short circuit and overload protection, remote on/off, and output trim capability. Operating from -40°C to +100°C, it is suitable for demanding environments. Its small footprint and robust design make it ideal for space-constrained industrial power systems, automation, and control equipment, ensuring reliable performance across a range of voltages.
XP POWER JTD2048S05 DC-DC Converter Specifications:
- Input Voltage Range: 18-75 VDC, 24V/48V nominal
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V, 33V options
- Output Power: 20 Watts
- Efficiency: Up to 91%
- Isolation: 3000 VDC input to output, 1600 VDC input/output to case
- Operating Temperature: -40°C to +100°C (derating required above 65°C)
- Dimensions: 1.6 x 1.0 x 0.41 inches (40.6 x 25.4 x 10.4 mm)
- Surge and ripple: Meets industry standards, low conducted EMI
- Protection: Short circuit, overload, overvoltage, and thermal protection
- Remote On/Off: Enabled via control pin
- Mechanical: Metal case, epoxy potting, UL94V-0 rated
- Switching Frequency: 270/330 kHz
- Certifications: UL/eUL60950-1, 62368-1
Buy the XP Power JTD20 – Reliable DC-DC Converter for Industrial Applications
Procure the XP Power JTD2048S05 DC-DC Converter online and enjoy a reliable 20-watt power module suitable for industrial environments. With a wide input range, high efficiency up to 91%, and comprehensive protection features, this converter guarantees dependable performance in automation, control, and instrumentation systems. Its compact size, robust metal case, and operating temperature range enable installation in space-constrained applications while maintaining regulatory compliance. Enhance your project’s power reliability by purchasing this high-quality, certified converter directly from our online store today.
Order your XP Power JTD2048S05 DC-DC Converter today and ensure your industrial projects benefit from dependable power solutions with high efficiency.
