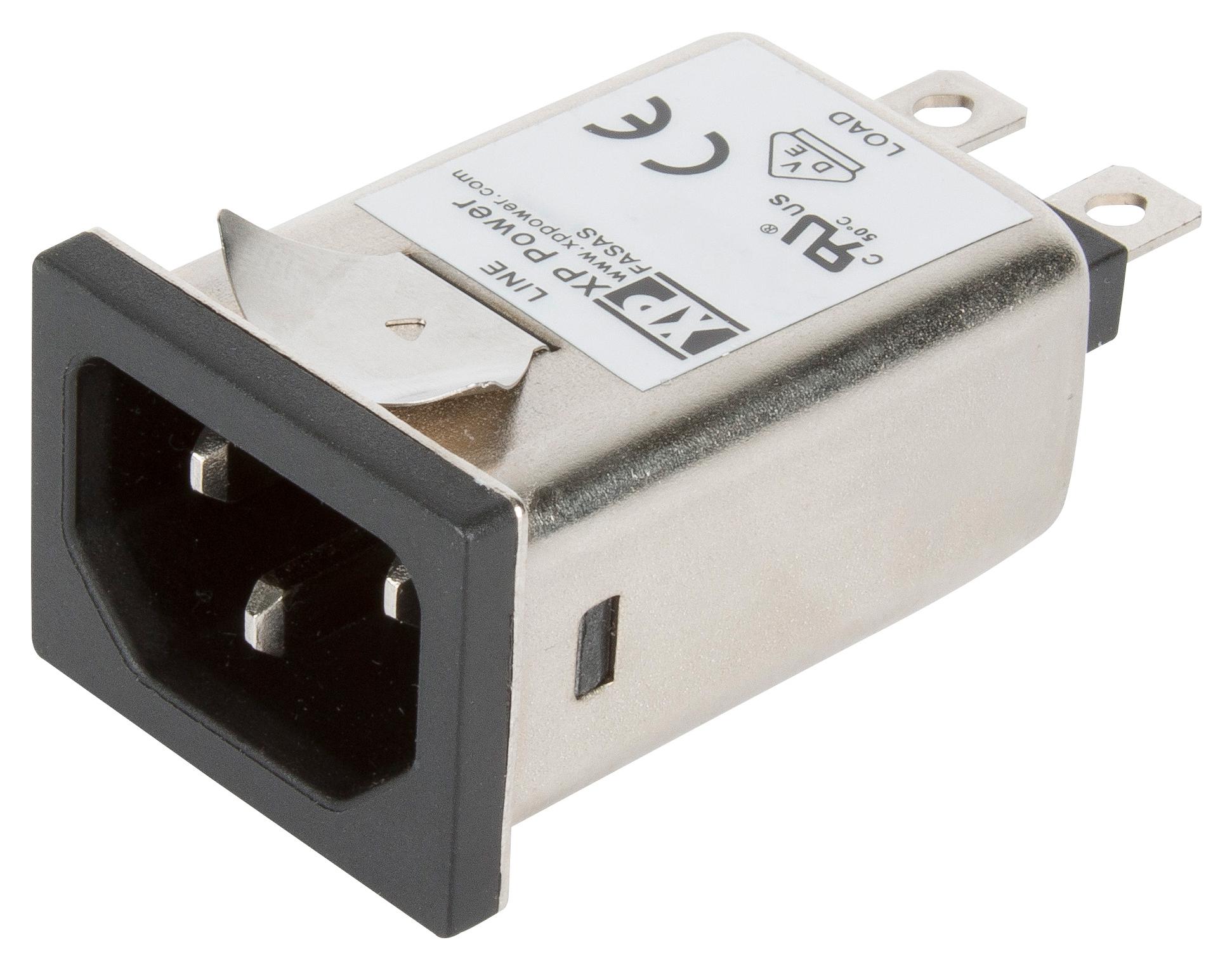

XP POWER FASAS01SFR IEC inlet with filter
The FASA combines an EMI filter with an IEC 320-C14 inlet, providing excellent attenuation of conducted electromagnetic interference in a compact module. Available in snap-in or screw mount versions, it is suitable for consumer, commercial, ITE, and instrumentation applications. When installed in mains-powered equipment, it reduces electromagnetic interference conducted from the mains supply and prevents emissions from the equipment from reaching the mains. All models feature a shielded metal body and include a bleed resistor to safely discharge filter capacitors when power is disconnected. They meet safety standards EN60939-2 and ANSI/UL 1283. The filter operates across a wide temperature range from -40°C to +110°C, with full power capability up to +50°C. Available ratings include 1A, 3A, 6A, and 10A, with 6.3 x 0.8mm Faston terminals.
XP POWER FASAS01SFR IEC inlet with filter Specifications:
- Rated Voltage: 250VAC
- Rated Current: 1A, 3A, 6A, 10A (see models and ratings table)
- Frequency: 50/60 Hz
- Temperature Range: -40°C to +110°C, full power up to +50°C
- Shielded metal body for electromagnetic interference attenuation
- Terminals: Faston 6.3 x 0.8mm straight
- Includes bleed resistor for safe capacitor discharge
- Safety approvals: EN60939-2, ANSI/UL 1283
- Dimensions: Approximate panel cutout 0.88 inches (22.5 mm) for screw mount, 1.8 inches (45.2 mm) for snap-in
- Weight: approx. 38g to 41g depending on model
- Mounting options: screw mount, snap-in
- Application: EMI filtering for consumer, commercial, ITE, instrumentation equipment
- Protection Class: Suitable for Class I appliances
- Compliance: EN60939-2, ANSI/UL 1283
Buy the XP Power Series IEC Inlet with Line Filter: FASAS01SFR
Secure your electronic devices with the high-performance IEC inlet featuring an integrated EMI filter. Designed for easy mounting options, it ensures efficient electromagnetic interference reduction, compliance with safety standards, and wide-temperature operation. Perfect for ITE and appliance applications, this module offers robust shielding, safe discharge via bleed resistor, and reliable electrical performance across various ratings. Purchase online now to enhance your equipment’s electromagnetic compatibility and ensure consistent, safe operation in demanding environments.
Buy XP Power FASAS01SFR IEC inlet with EMI filter now and ensure reliable electromagnetic interference suppression for your equipment.
Frequently Asked Questions
Where can I buy XP POWER FASAS01SFR?
You can click on the BUY or RFQ button to purchase FASAS01SFR from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FASAS01SFR?
You can download the FASAS01SFR datasheet or visit the XP POWER website for support.
Who is the manufacturer of FASAS01SFR?
XP POWER
