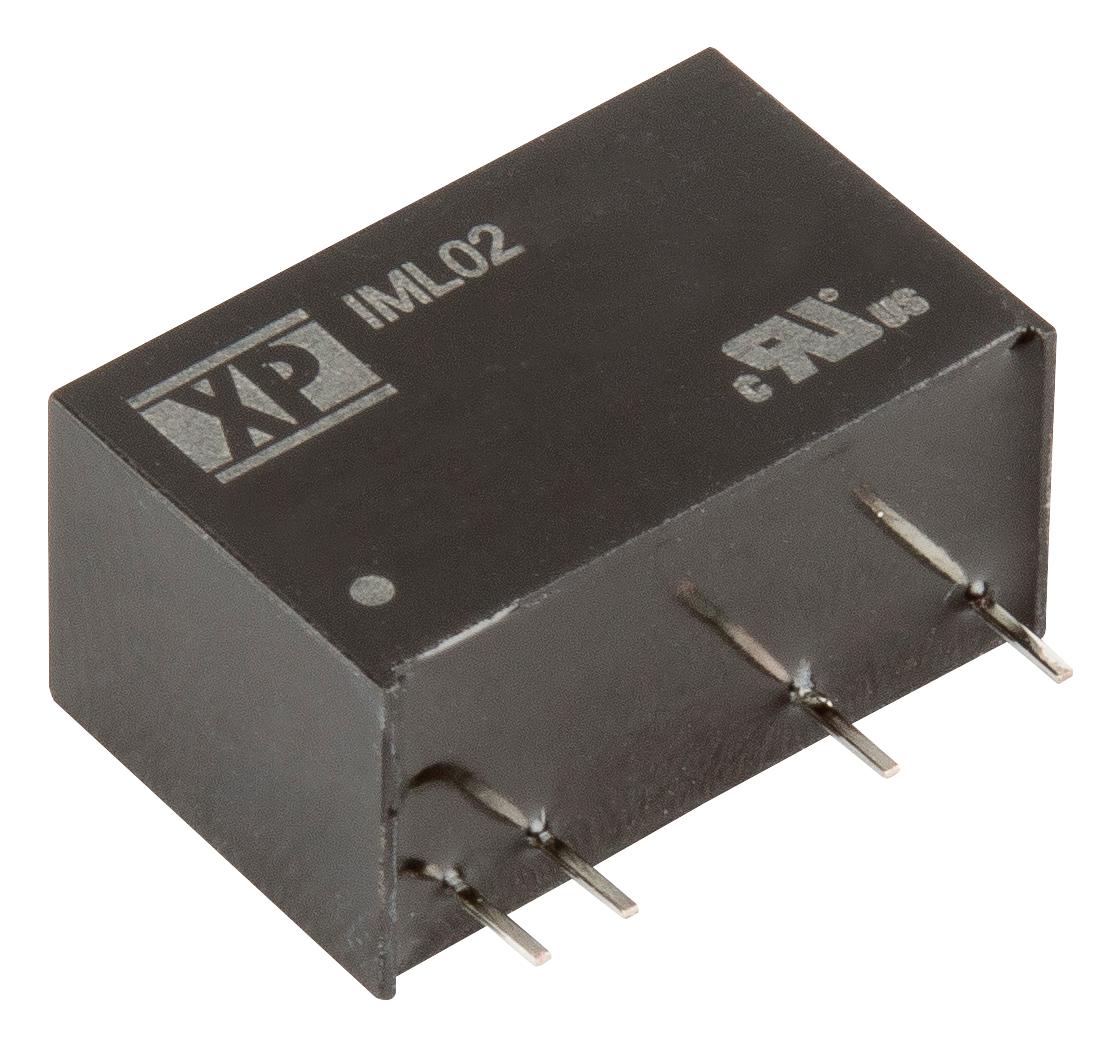

XP POWER IML0212S15 Medical DC-DC Converter
The IML02 series is a 2W, single and dual output DC-DC converter in a compact SIP7 package, suitable for medical and industrial applications. It features worldwide medical safety approvals, 4000VAC isolation, and operates from -40°C to +85°C at full load, ensuring reliable performance across environments. With continuous short circuit protection, low patient leakage current of 2µA, and compliance with EN55011 class B standards, it is ideal for power management and medical systems. Certifications include UL, CSA, TUV, IEC60601-1, and more, making it a highly versatile component.
XP POWER IML0212S15 Medical DC-DC Converter Specifications:
- Power: 2 Watts
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Output Voltage: 5V, 12V, 15V options
- Dimensions: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- Isolation: 4000 VAC, 1 x MOPP
- Operational Temperature: -40°C to +85°C at full load
- Leakage Current: 2 µA
- Efficiency: Approx. 80%
- Switching Frequency: 50-100 kHz
- Humidity: 25-95% RH (non-condensing)
- Certifications: UL, CSA, TUV, IEC60601-1, CE
- Patient Leakage Current: 2 µA
- Operating Altitude: Up to 5000 m
- Isolation Resistance: 10^2 Ω
- Isolation Capacitance: 10-20 pF
Buy the XP Power Series IML02 DC-DC Converter: IML0212S15
Order the XP Power IML0212S15 medical-grade DC-DC converter online today to ensure your medical or industrial system benefits from robust 2W power, 4000VAC isolation, and excellent efficiency. Designed for safety and performance across a wide temperature range, it features worldwide certifications such as UL, CSA, and IEC60601-1, ensuring compliance and reliability. Compact and highly efficient, this power converter is ideal for demanding environments like medical devices, industrial electronics, and power management systems. Get yours online now and enhance your system's safety and performance with just a few clicks.
Buy XP Power IML0212S15 now and experience unmatched reliability, safety, and efficiency for medical and industrial power solutions.
Frequently Asked Questions
Where can I buy XP POWER IML0212S15?
You can click on the BUY or RFQ button to purchase IML0212S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IML0212S15?
You can download the IML0212S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IML0212S15?
XP POWER
