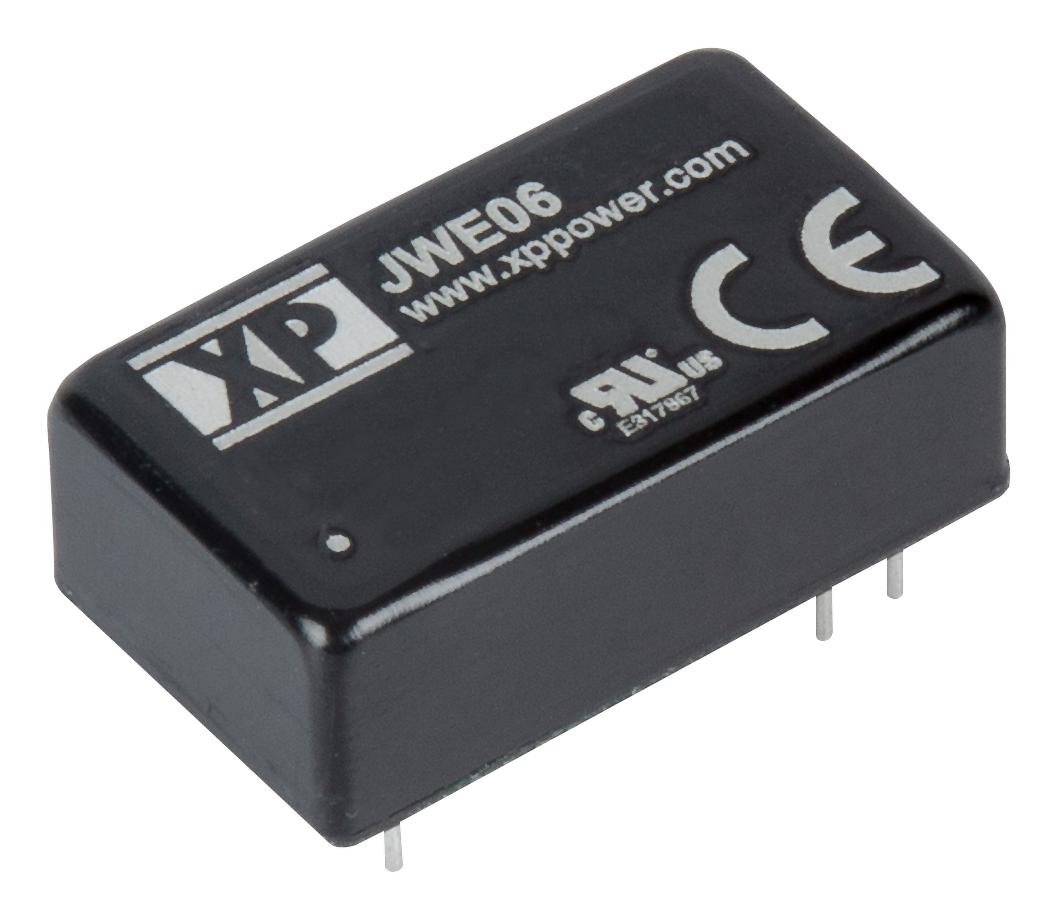

XP POWER JWE0624D12 DC-DC Converter
The JWE06 series is a high power density DC-DC converter offering both single and dual output options with a 6W power rating. It features an ultra-wide 4:1 input voltage range—9V to 36V for 24V input models, and 18V to 75V for 48V input models—making it suitable for applications with varying input voltages. The converter measures a compact 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm) in a DIP16 package and provides a power density of 50 W/in² for the 8W versions. It offers regulated single outputs of 3.3V, 5V, 12V, 15V, and 24VDC, or dual outputs of ±12V and ±15VDC. Encased in a UL 94V-0 rated black metal case, the module provides 1500VDC isolation, with high stability and a typical regulation accuracy of ±0.5% across all line and load conditions. Its operating temperature range extends from -40°C to 105°C, with derating commencing at 75°C for JWE06 models and 70°C for 8W variants. The converter meets EN55022 Class A conducted emission standards without additional filtering, making it suitable for power management and DC conversion applications.
XP POWER JWE0624D12 DC-DC Converter Specifications:
- Power Rating: 6W
- Input Voltage Range: 9V to 36V (24V nominal), 18V to 75V (48V nominal)
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V
- Input-Output Isolation: 1500 VDC
- Case Dimensions: 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm)
- Operating Temperature Range: -40°C to +105°C
- Derating Temperature: 75°C for JWE06, 70°C for 8W models
- Efficiency: Up to 87%
- Safety Approvals: UL 94V-0 rated metal case
- Switching Frequency: 370 kHz
- Power Density: 50 W/in²
- Humidity: Non-condensing
- Cooling: Natural convection
- Isolation Resistance: 10^9 Ω at 500 VDC
- Ripple & Noise: 55 mV pk-pk
Buy the XP Power Series JWE06 6W DC-DC Converter: JWE0624D12
Order the XP Power JWE0624D12 DC-DC Converter online today and enjoy advanced power conversion technology with ultra-wide input ranges, high efficiency, and robust build quality. Ideal for aerospace, industrial, and communication systems, this compact module offers reliable electrical isolation of 1500VDC, ensuring safety and performance. With a footprint of just under 1 inch, it fits easily into space-constrained designs. Experience rapid delivery, exceptional customer support, and the confidence of a high-quality, UL-rated power module designed for demanding applications.
Get XP Power JWE0624D12 today—built for high efficiency and reliable power delivery in industrial and power management applications.
Frequently Asked Questions
Where can I buy XP POWER JWE0624D12?
You can click on the BUY or RFQ button to purchase JWE0624D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWE0624D12?
You can download the JWE0624D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWE0624D12?
XP POWER
