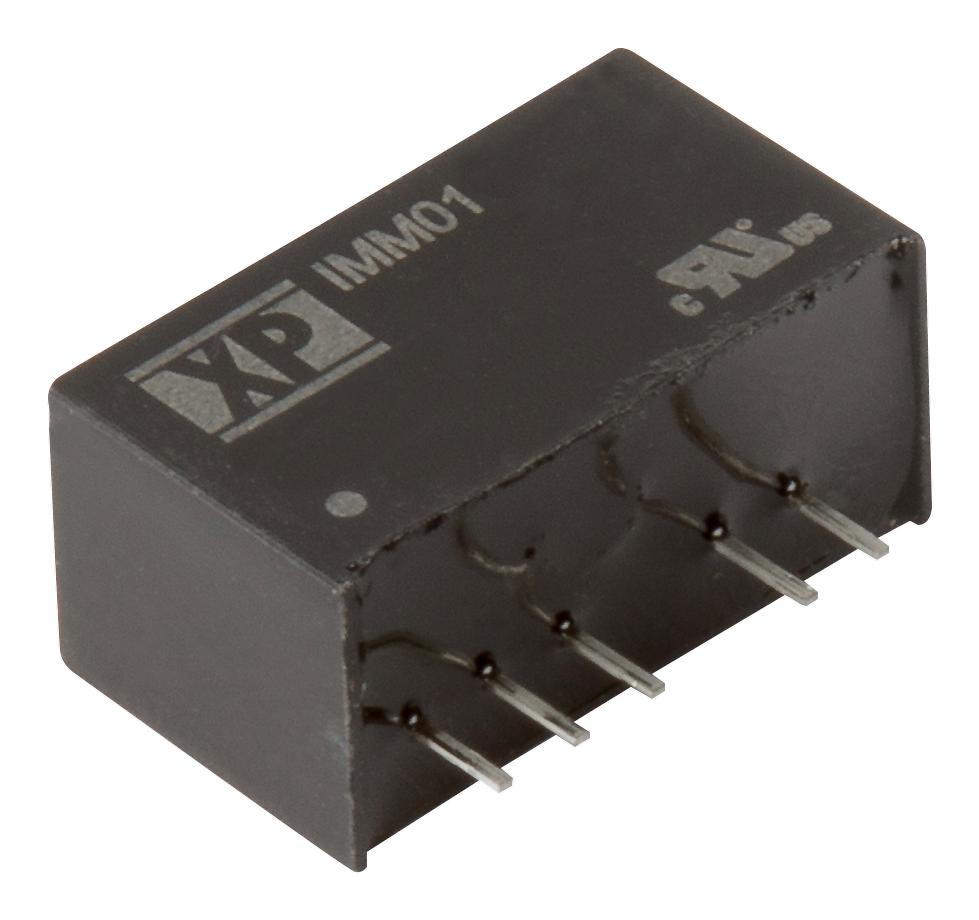

XP POWER IMM0105S15 Medical DC-DC Converter
The IMM01 series is a 1W DC to DC converter available in single and dual output configurations, housed in a compact SIP7 package. It features worldwide medical approvals, including UL, ANSI/AMMI ES60601-1, CSA C22.2 No. 60601-1, TUV, EN60601-1, CB, and IEC60601 standards. The converter boasts a patient leakage current of 2 µA, with fold-back short circuit protection and auto recovery. Operating from -20°C to 100°C, it supports full load at 60°C ambient, providing 1500VAC isolation with 1 x MOPP. Ideal for medical, industrial, and power systems requiring reliable and certified DC/DC conversion.
XP POWER IMM0105S15 Medical DC-DC Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 3V3 to 45-90V
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 22V, 25V, 9V to 18V
- Output Current: Up to 375 mA depending on model
- Isolation Voltage: 1500 VAC, 1 MOPP
- Operating Temperature: -20°C to +100°C
- Full Load at 60°C Ambient
- Leakage Current: 2 µA
- Dimensions: 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Package: SIP7
- Short Circuit Protection: Continuous fold-back with auto recovery
- Efficiency: Up to 78%
- Isolation Resistance: 10 MΩ
- Certification: UL, EN60601-1, CSA, CB, IEC60601-1
- Isolation Capacitance: 27 pF
- Switching Frequency: 175 to 7000 kHz
- Weight: Approximately 3.6 grams
- Altitude: Up to 3048 m
- Humidity: Non-condensing
Buy the XP Power IMM0105S15 – Reliable Medical DC-DC Converter for Industrial Applications
Enhance your medical, industrial, or power management projects with the reliable IMM01 series DC-DC converter. Designed for safety-critical applications, it features high isolation, worldwide medical approvals, fold-back short circuit protection, and broad temperature range operation. Its compact SIP7 package makes integration easy, supporting up to 1W output power and ensuring compliance with strict medical standards like IEC60601-1. Purchase online today to get dependable, certified power conversion tailored for demanding environments.
Order your XP Power Series IMM0105S15 medical-grade DC-DC converter today and ensure safe, certified power solutions for your healthcare and industrial projects.
Frequently Asked Questions
Where can I buy XP POWER IMM0105S15?
You can click on the BUY or RFQ button to purchase IMM0105S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0105S15?
You can download the IMM0105S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0105S15?
XP POWER
