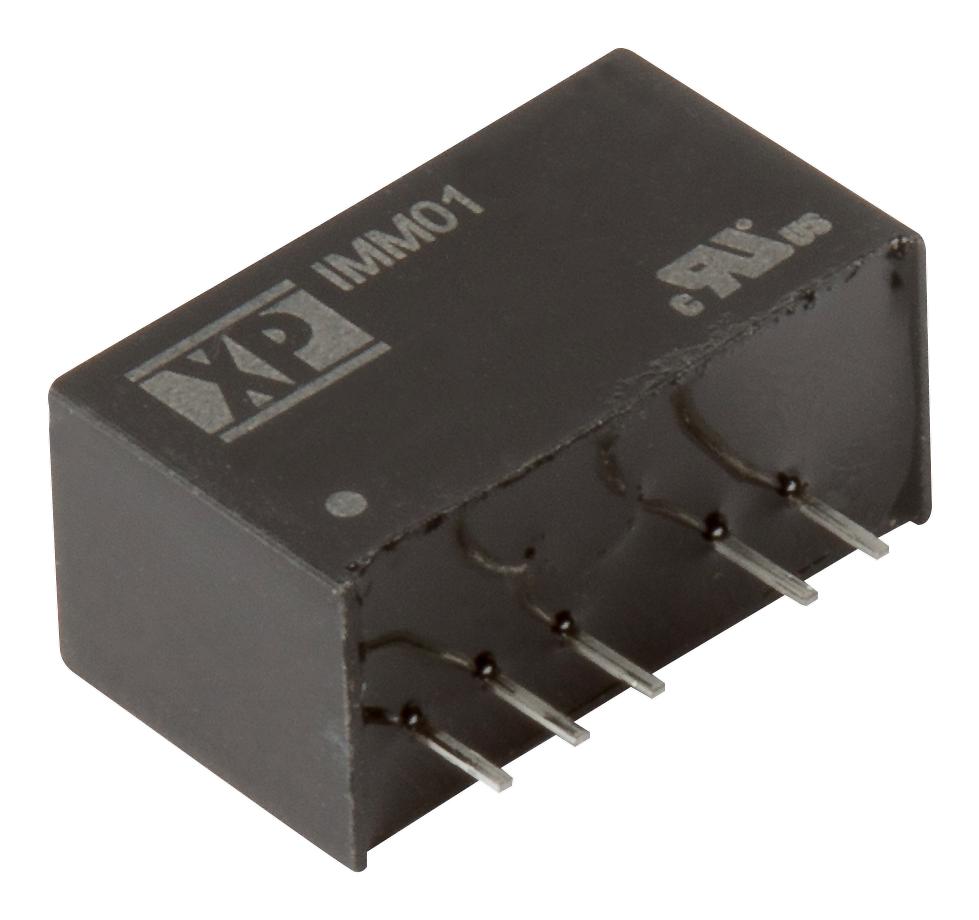

XP POWER IMM0112D03 Medical DC-DC Converter
The IMM01 series is a 1W, versatile DC-DC converter designed with a compact SIP7 package, making it ideal for medical, industrial, and power management applications. It offers single and dual output options with worldwide safety approvals, including UL and IEC standards, ensuring reliable performance in medical devices. The converters operate across a wide temperature range of -20°C to 100°C, support full load at 60°C ambient, and provide 1500VAC isolation with 1 x MOPP. Features include low patient leakage current of 2 microamps, continuous fold-back short circuit protection, and auto recovery, making them robust for critical applications.
XP POWER IMM0112D03 Medical DC-DC Converter Specifications:
- Power: 1 Watt
- Package: SIP7
- Input Voltage Range: 3V3 to 45-90V (varies by model)
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, 9V (depending on model)
- Output Current: Up to 150 mA (varies by model and voltage)
- Isolation: 1500 VAC, 1 MOPP
- Operating Temperature Range: -20°C to +100°C
- Full Load Operation at 60°C ambient
- Leakage Current: 2 microamps
- Dimensions: 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Short Circuit Protection: Continuous fold-back mode with auto recovery
- Efficiency: Up to 78%
- Isolation Resistance: 10^9 ohms
- Applicable Standards: UL, IEC60601-1, CSA C22.2 No. 60601-1, EN60601-1, TUV, CB
Buy the Buy XP Power IMM0112D03 Part Number IMM0112D03 Online
Purchase the XP Power IMM0112D03 today for high-quality, medical-grade power conversion with excellent isolation, wide temperature operation, and low leakage current, ensuring safety and reliability for healthcare and industrial devices. Enjoy fast shipping and dedicated customer support when you buy online and upgrade your power systems now.
Order your XP Power IMM0112D03 Series 1W medical-grade DC-DC converter today and ensure reliable power delivery in your critical applications.
